Toyota Probox/Succeed

2014-09 → present · chassis NCP16#,NSP160,NHP160 · catalogue 173120 · Japan

Supported model Data version 2018-12
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Engine Overhaul Gasket Kit

2 part groups · 8 illustrations

Illustrations

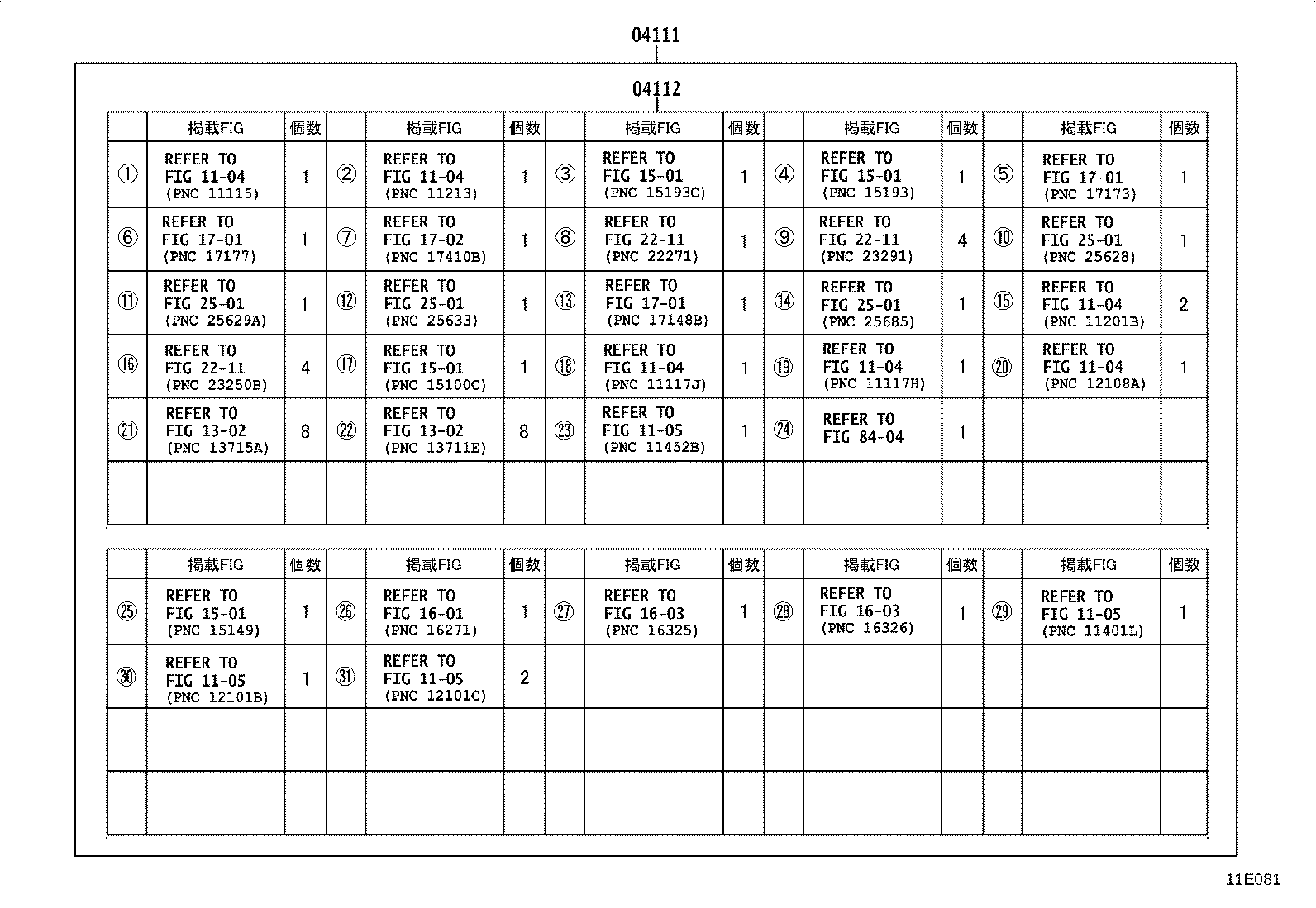

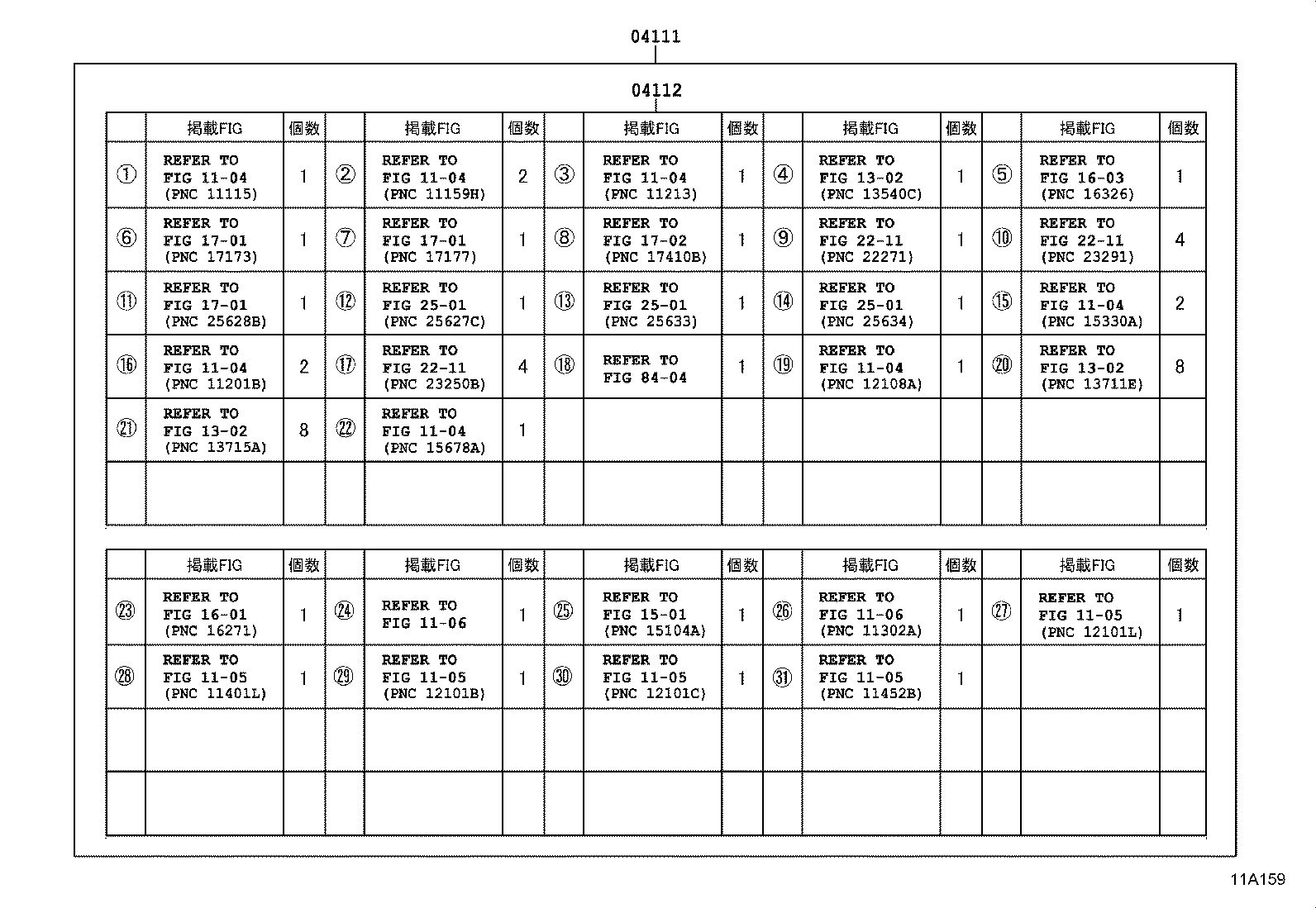

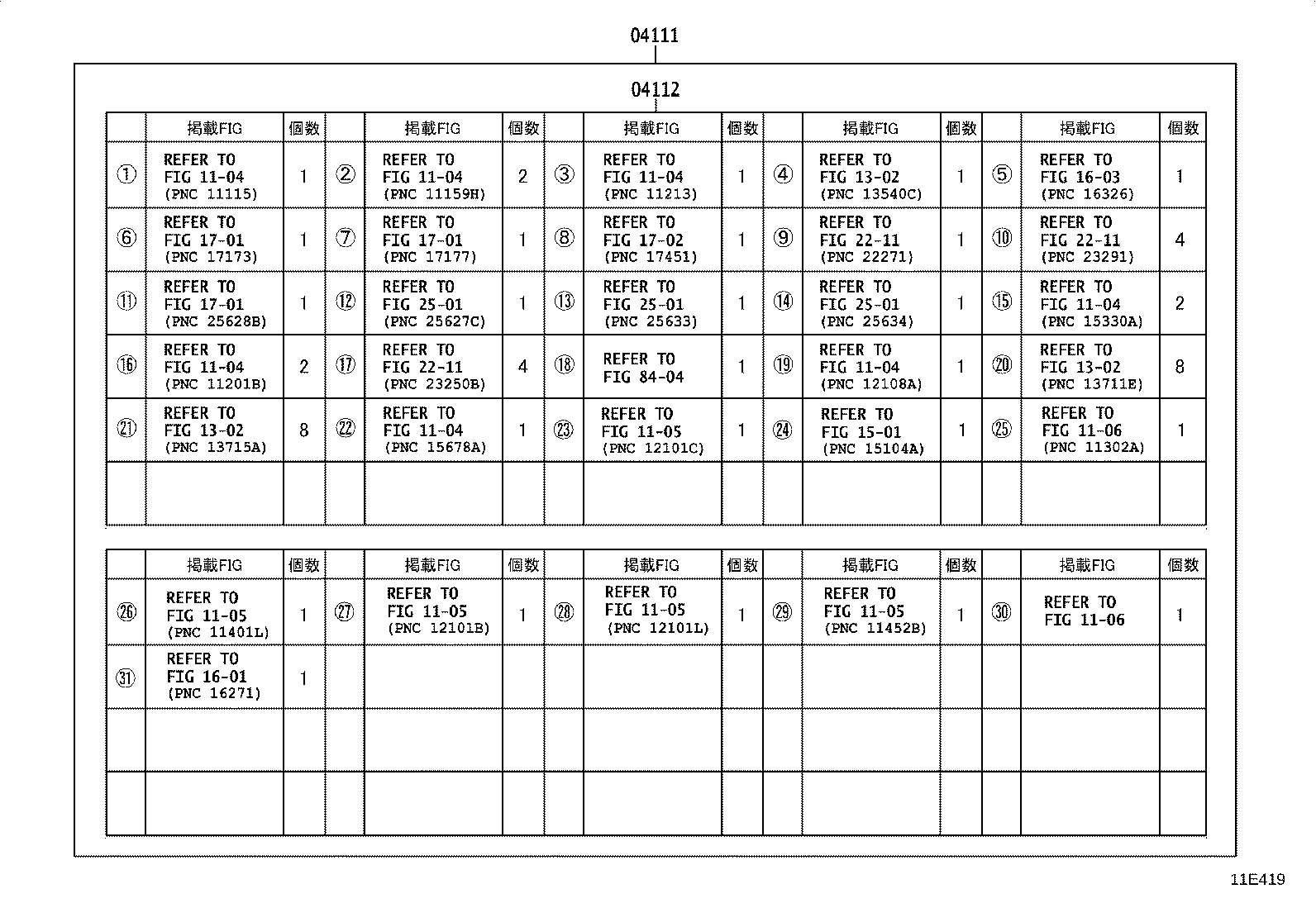

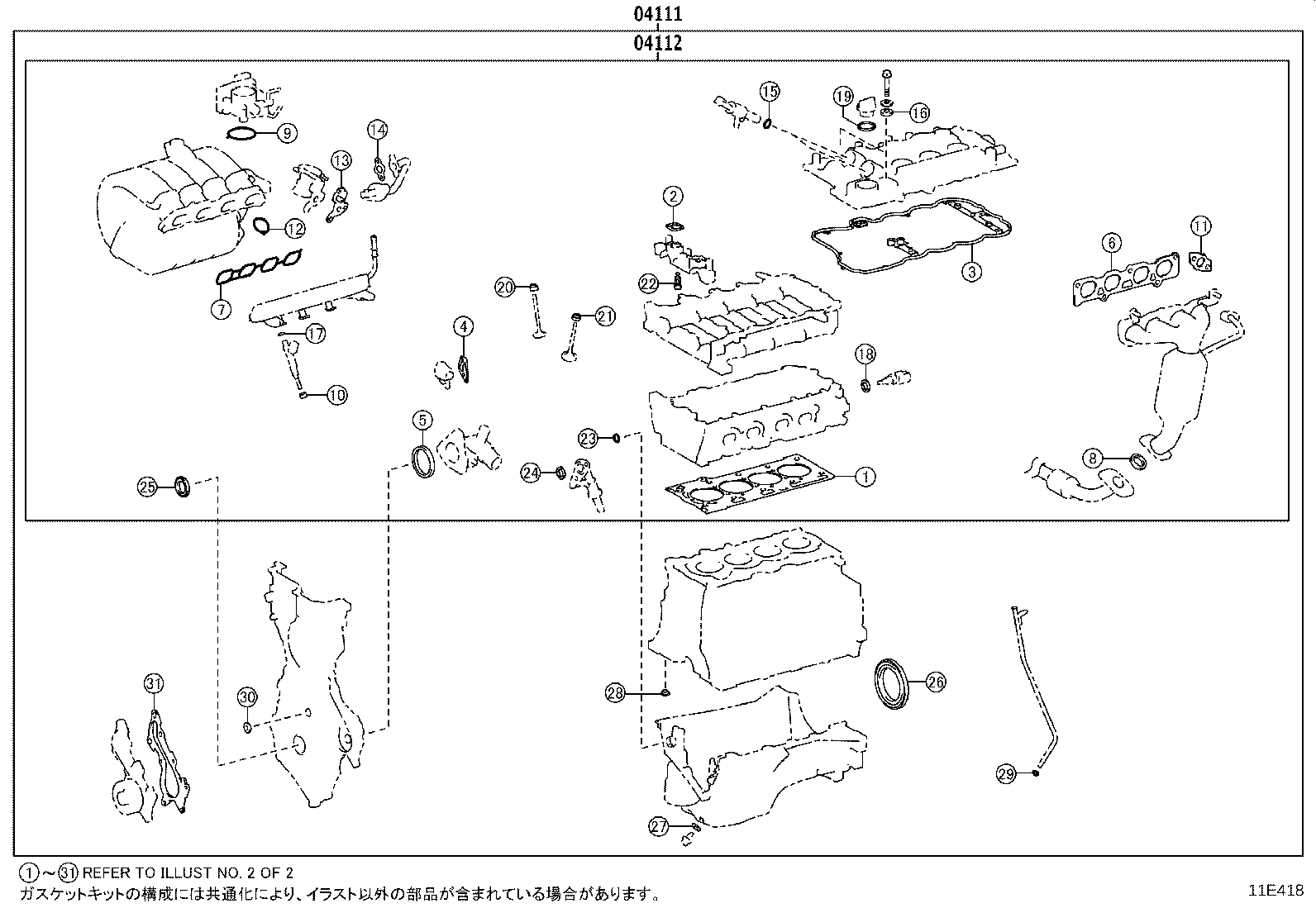

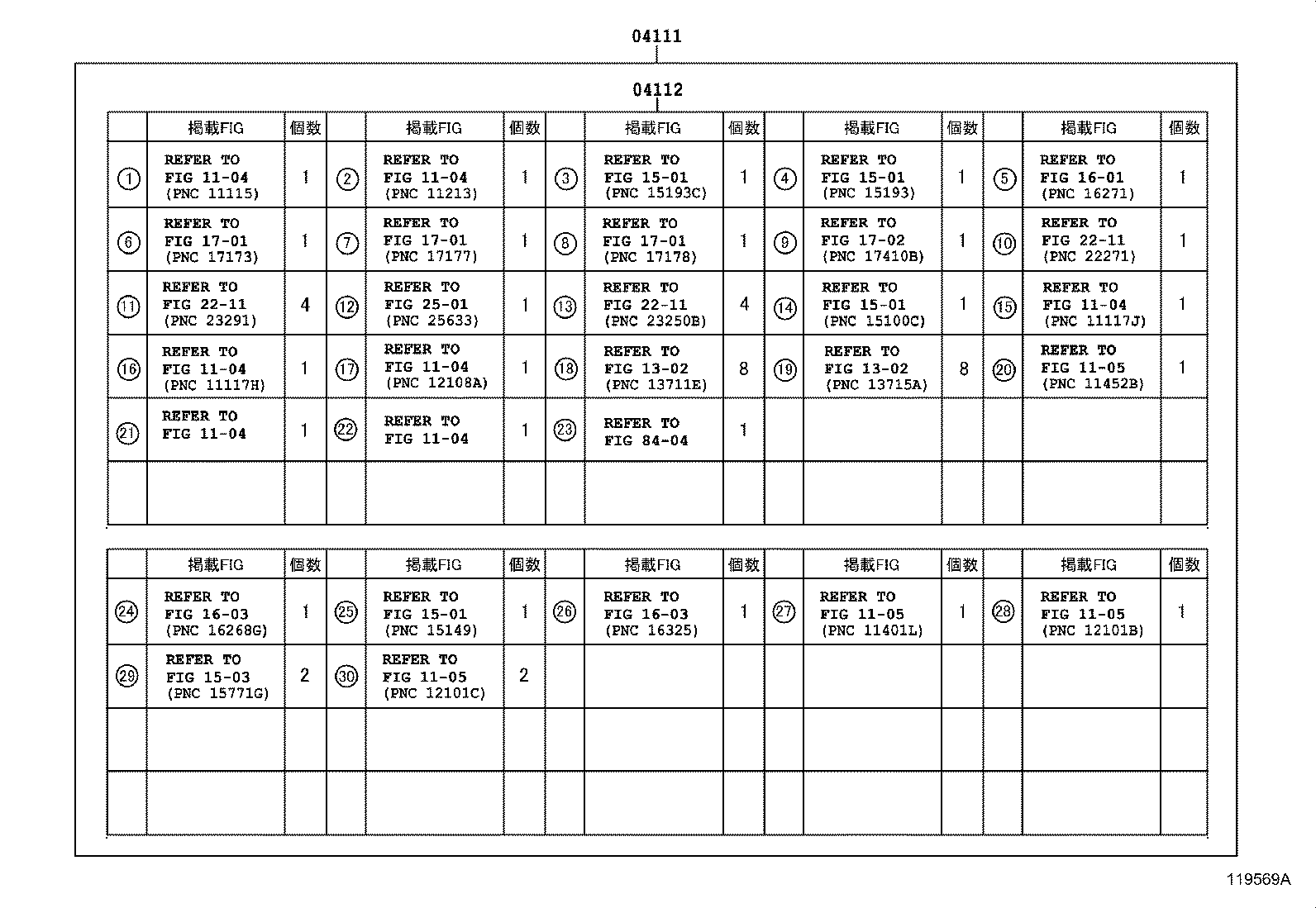

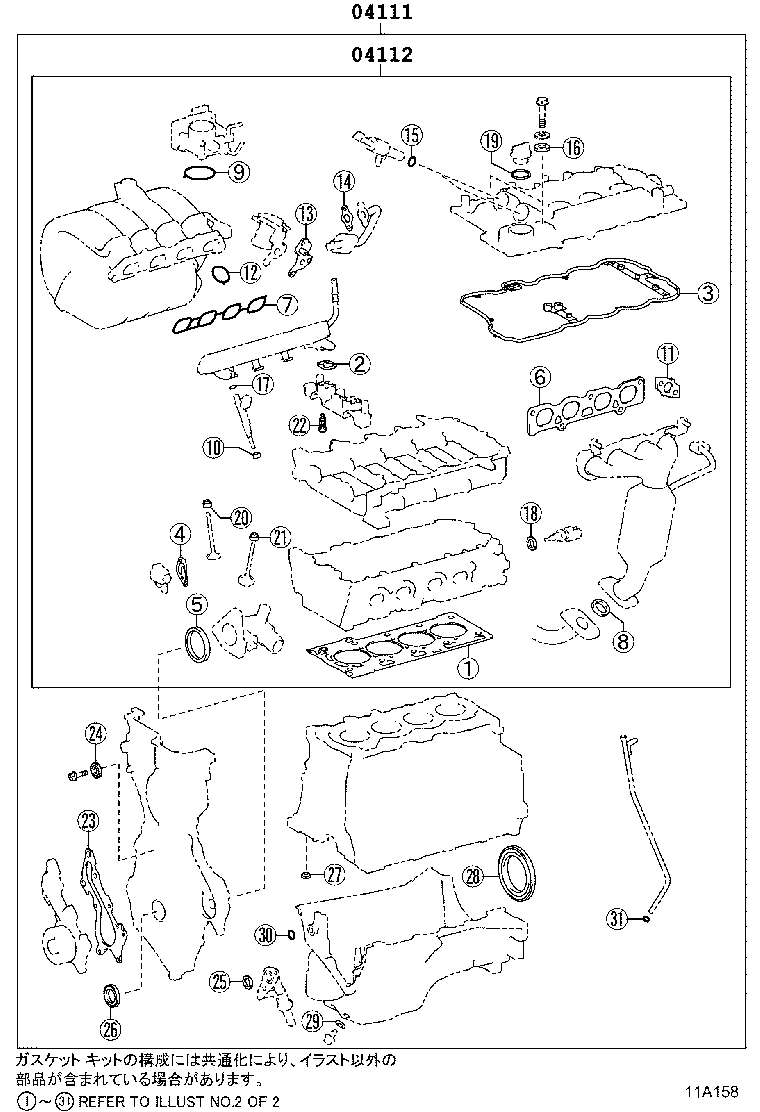

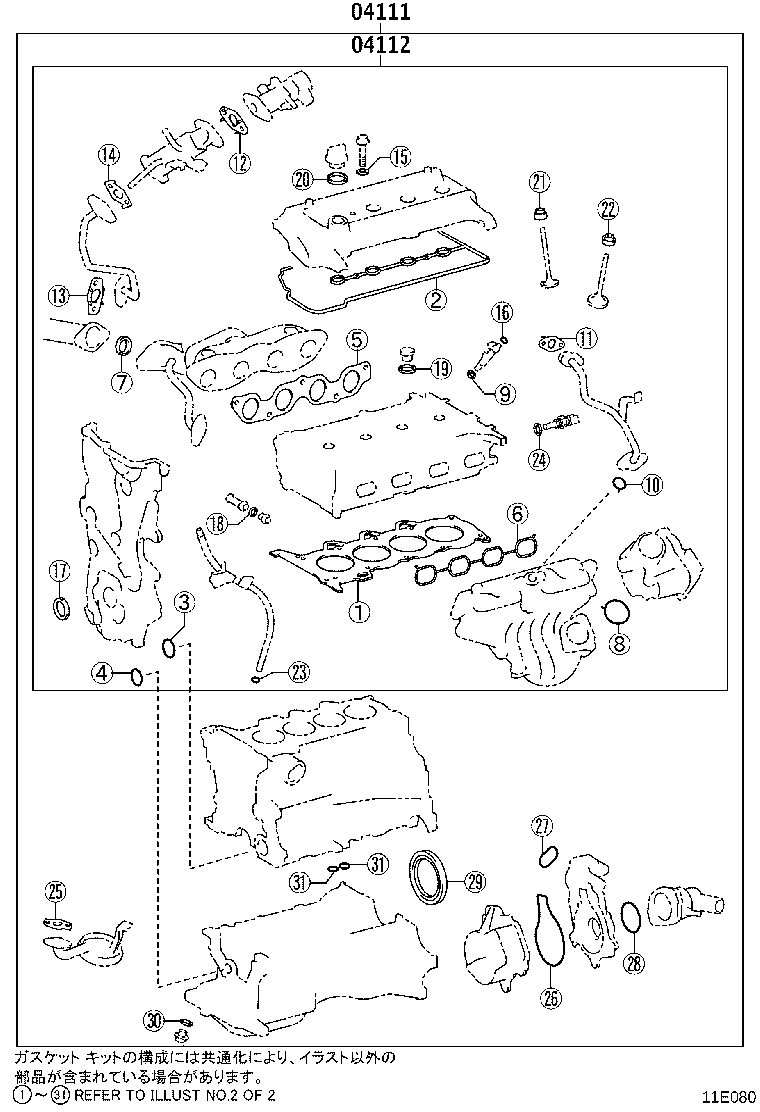

Figure 119568A 119568A 2014-09 → — Figure 119569A 119569A 2014-09 → — Figure 11A158 11A158 2014-09 → 2019-03 Figure 11A159 11A159 2014-09 → 2019-03 Figure 11E418 11E418 2019-03 → — Figure 11E419 11E419 2019-03 → — Figure 11E080 11E080 2018-12 → — Figure 11E081 11E081 2018-12 → —

Part groups

PNCDescription
04111 Gasket Kit, Engine Overhaul
04112 Gasket Kit, Engine Valve Grind
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
