Toyota Probox/Succeed

2014-09 → present · chassis NCP16#,NSP160,NHP160 · catalogue 173120 · Japan

Supported model Data version 2018-12
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Mounting

10 part groups · 4 illustrations

Illustrations

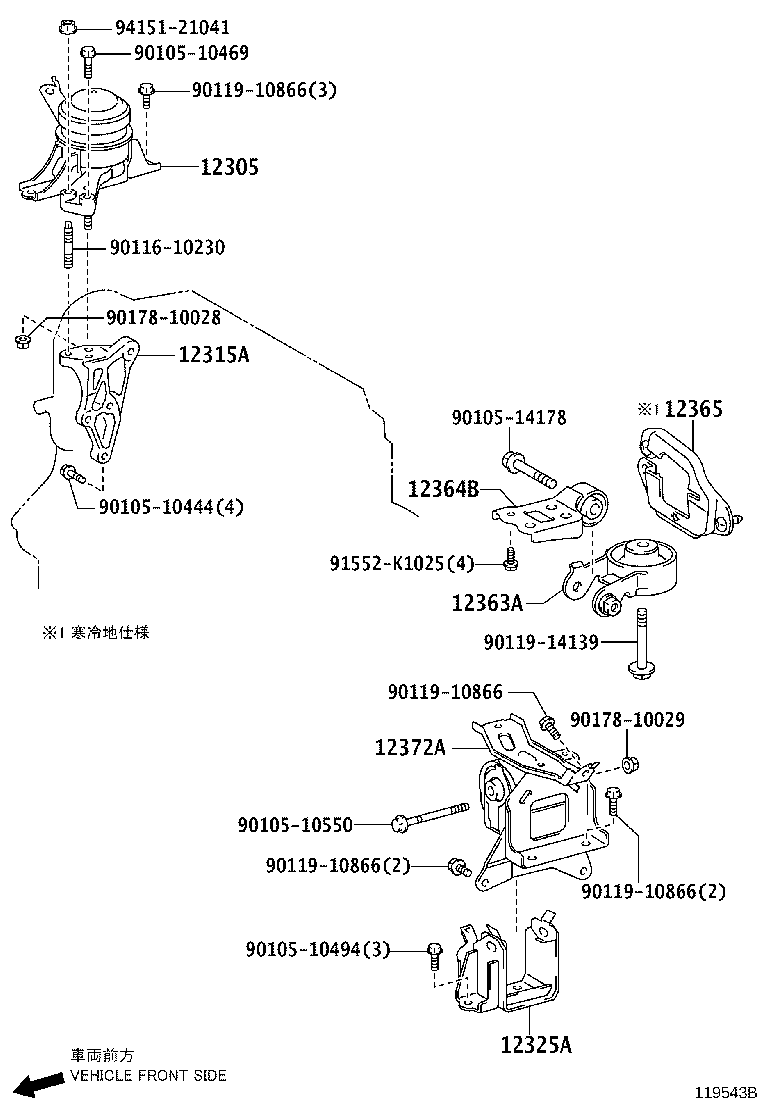

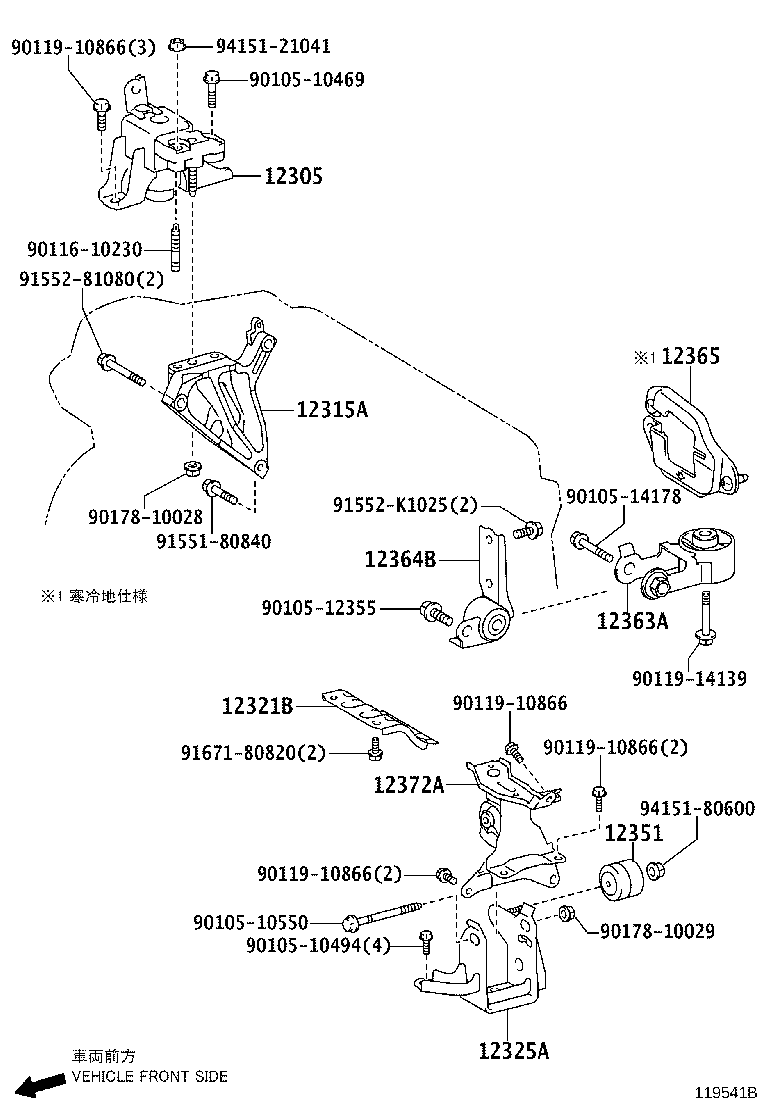

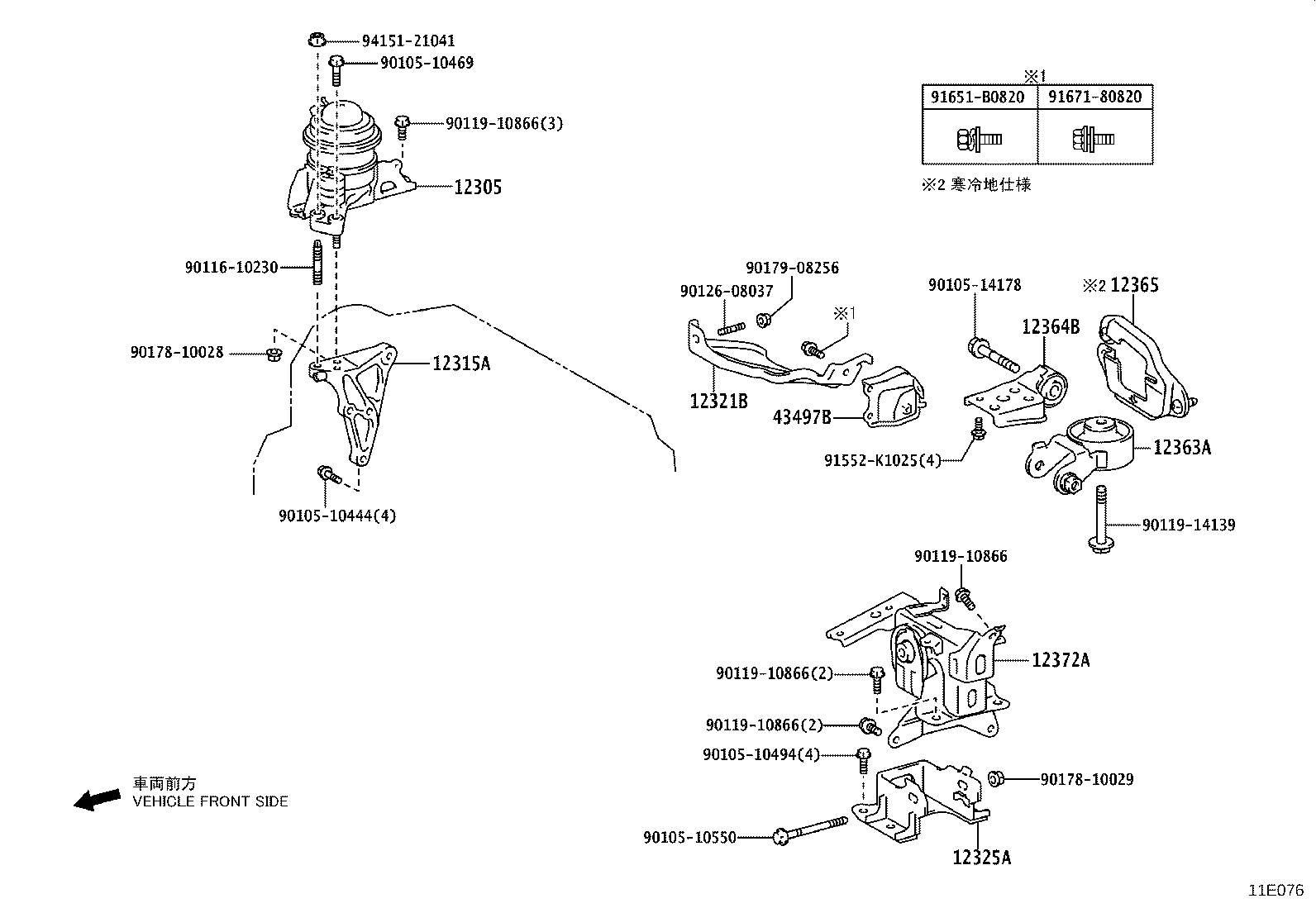

Figure 119542B 119542B 2014-09 → — Figure 119543B 119543B 2014-09 → — Figure 119541B 119541B 2014-09 → — Figure 11E076 11E076 2018-12 → —

Part groups

PNCDescription
12305 Insulator Sub-assy, Engine Mounting, RH
12315A Bracket, Engine Mounting, RH(FOR TRANSVERSE ENGINE)
12321B Insulator Sub-assy, Drive Shaft Heat
12325A Bracket, Engine Mounting, LH(FOR TRANSVERSE ENGINE)
12351 Damper, Engine Mounting
12363A Rod, Engine Moving Control
12364B Rod, Engine Moving Control, NO.2
12365 Cover, Engine Moving Control Rod
12372A Insulator, Engine Mounting, LH(FOR TRANSVERSE ENGINE)
43497B Bracket, Drive Shaft Heat Insulator
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
