Toyota Probox/Succeed

2014-09 → present · chassis NCP16#,NSP160,NHP160 · catalogue 173120 · Japan

Supported model Data version 2018-12
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Crankshaft & Piston

17 part groups · 3 illustrations

Illustrations

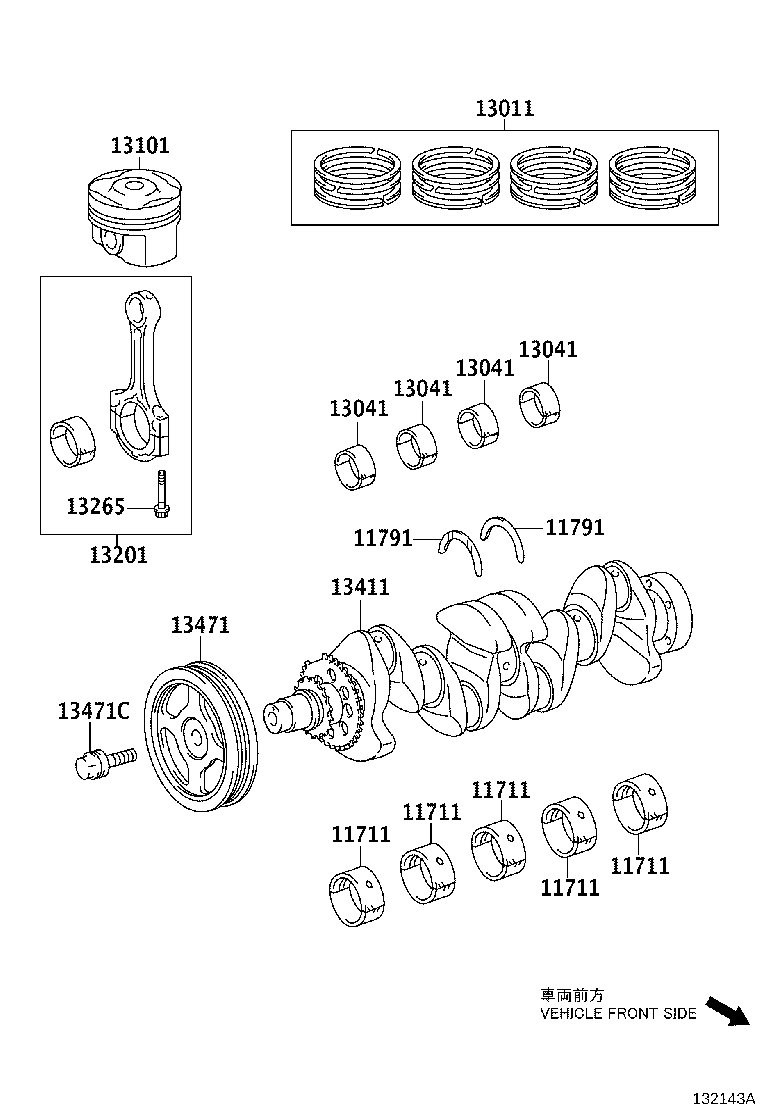

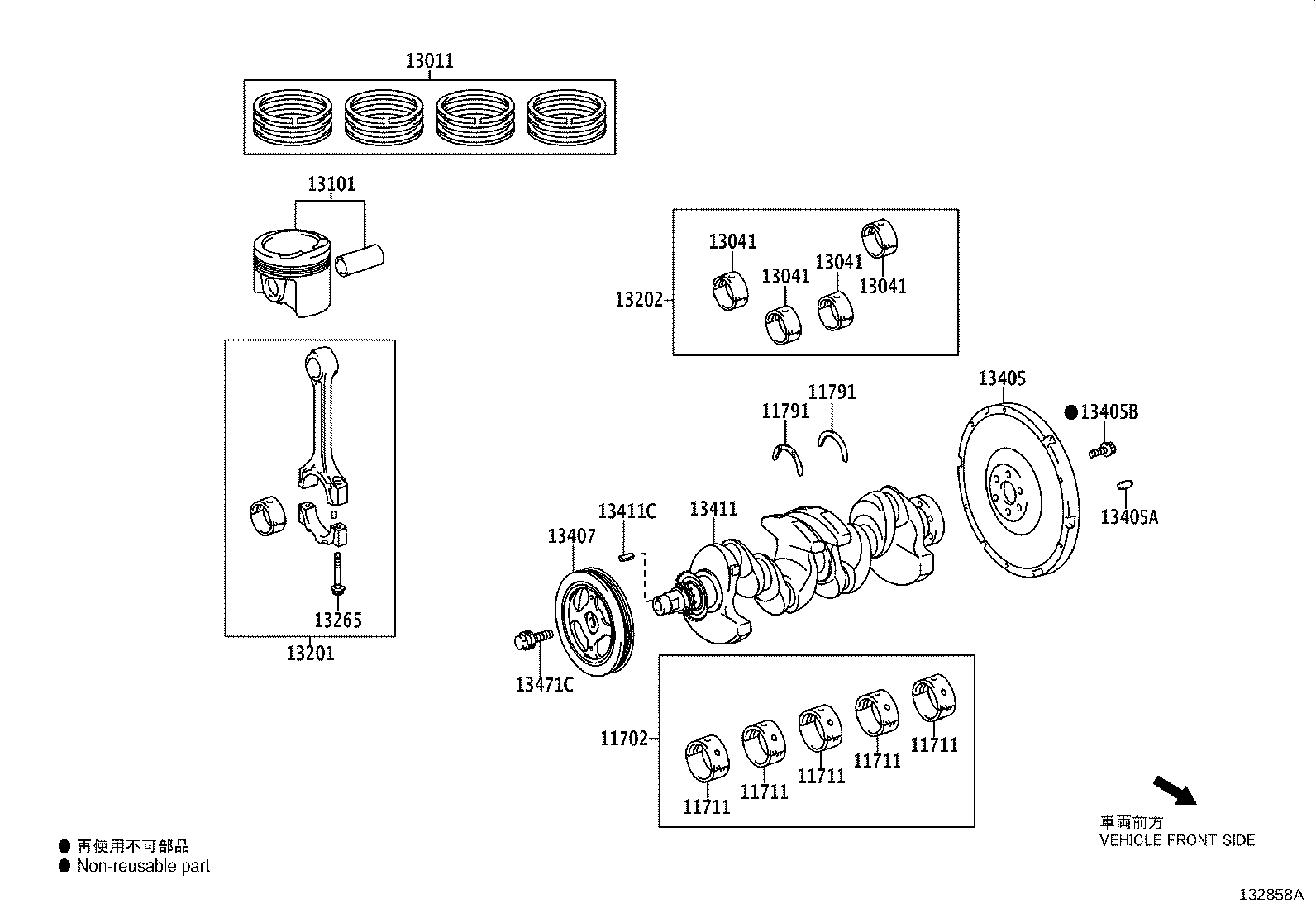

Figure 132142A 132142A 2014-09 → — Figure 132143A 132143A 2014-09 → — Figure 132858A 132858A 2018-12 → —

Part groups

PNCDescription
11702 Bearing Set, Crankshaft
11711 Bearing, Crankshaft
11791 Washer, Crankshaft Thrust, Upper
13011 Ring Set, Piston
13041 Bearing, Connecting Rod
13101 Piston Sub-assy, W/Pin
13201 Rod Sub-assy, Connecting
13202 Bearing Set, Connecting Rod
13265 Bolt, Connecting Rod
13405 Flywheel Sub-assy
13405A Pin, Straight(FOR FLYWHEEL)
13405B Bolt, Flywheel Setting
13407 Damper Sub-assy, Crankshaft
13411 Crankshaft
13411C Pin, Straight(FOR CRANKSHAFT)
13471 Pulley, Crankshaft
13471C Bolt(FOR CRANKSHAFT PULLEY SET)
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
