Toyota Probox/Succeed

2014-09 → present · chassis NCP16#,NSP160,NHP160 · catalogue 173120 · Japan

Supported model Data version 2018-12
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Exhaust Gas Recirculation System

13 part groups · 3 illustrations

Illustrations

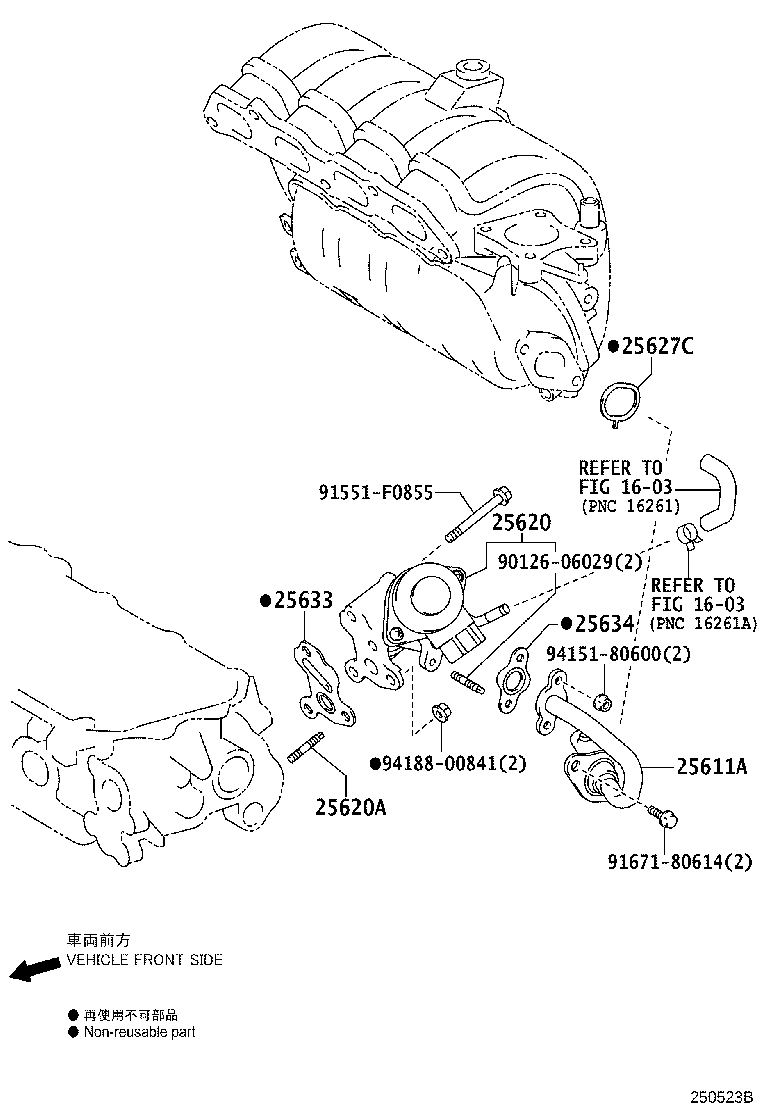

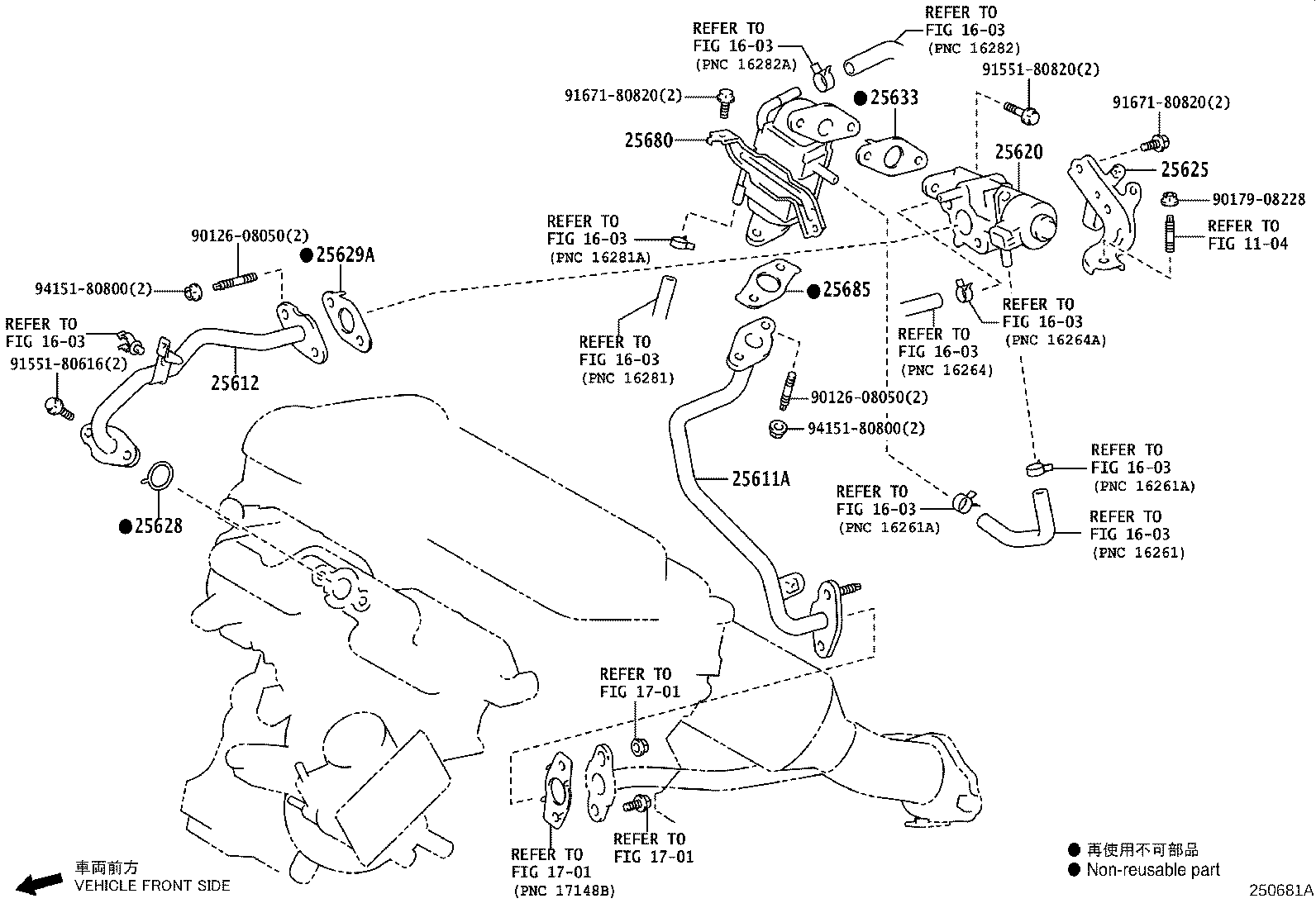

Figure 250522C 250522C 2014-09 → — Figure 250523B 250523B 2014-09 → — Figure 250681A 250681A 2018-12 → —

Part groups

PNCDescription
25611A Pipe, Egr, NO.1
25612 Pipe, Egr, NO.2
25620 Valve Assy, Egr
25620A Bolt, Stud(FOR EGR VALVE)
25625 Bracket, Egr Valve
25627C Gasket(FOR EGR PIPE NO.2)
25628 Gasket, Egr Inlet
25629A Gasket, Egr Pipe, NO.2
25633 Gasket, Egr Valve
25634 Gasket, Egr Pipe
25638 Chamber, Egr Delivery
25680 Cooler Assy, Egr
25685 Gasket, Egr Cooler, NO.1
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
