Toyota Probox/Succeed
2014-09 → present · chassis NCP16#,NSP160,NHP160 · catalogue 173120 · Japan
Supported model
Data version 2018-12
Transaxle Assy(HEV OR BEV OR FCEV)

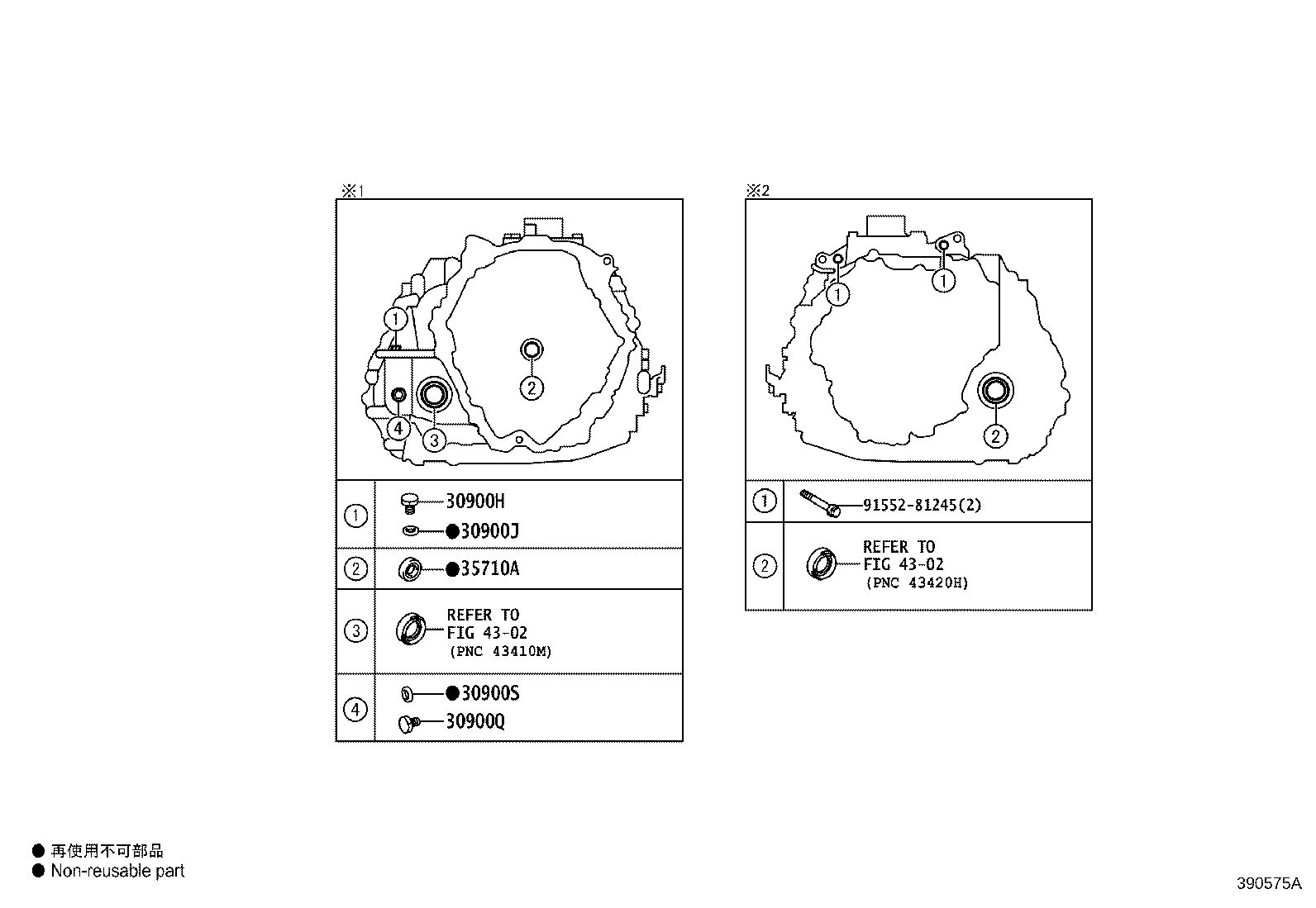

18 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 30900 | Transaxle Assy, Hybrid Vehicle |
| 30900H | Plug, W/Head Straight Screw, NO.3(FOR TRANSAXLE HSG & CASE) |
| 30900J | Gasket, NO.3(FOR TRANSAXLE HOUSING & CASE) |
| 30900P | Plug, Drain(HEV) |
| 30900Q | Plug, Filler(HEV) |
| 30900R | Gasket, Drain Plug(HEV) |
| 30900S | Gasket, Filler Plug(HEV) |
| 31270 | Damper Assy, Transmission Input |
| 32923N | Clamp, Oil Cooler Tube |
| 35151J | Cover, Automatic Transmission Case |
| 35308F | Ring, O, NO.1 (FOR TRANSMISSION OIL PUMP COVER) |
| 35308H | Plug (FOR TRANSMISSION OIL PUMP COVER) |
| 35572D | Lever, Transmission Control Shaft |
| 35710A | Seal, Type T Oil(FOR INPUT SHAFT) |
| G1143 | Bracket, Motor Cable |
| G1148 | Cable, Motor |
| G114D | Cap, Motor Cable Terminal |
| G1250 | Pipe Assy, Motor Cooling |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
