Toyota Probox/Succeed

2014-09 → present · chassis NCP16#,NSP160,NHP160 · catalogue 173120 · Japan

Supported model Data version 2018-12
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Parking Brake & Cable

10 part groups · 2 illustrations

Illustrations

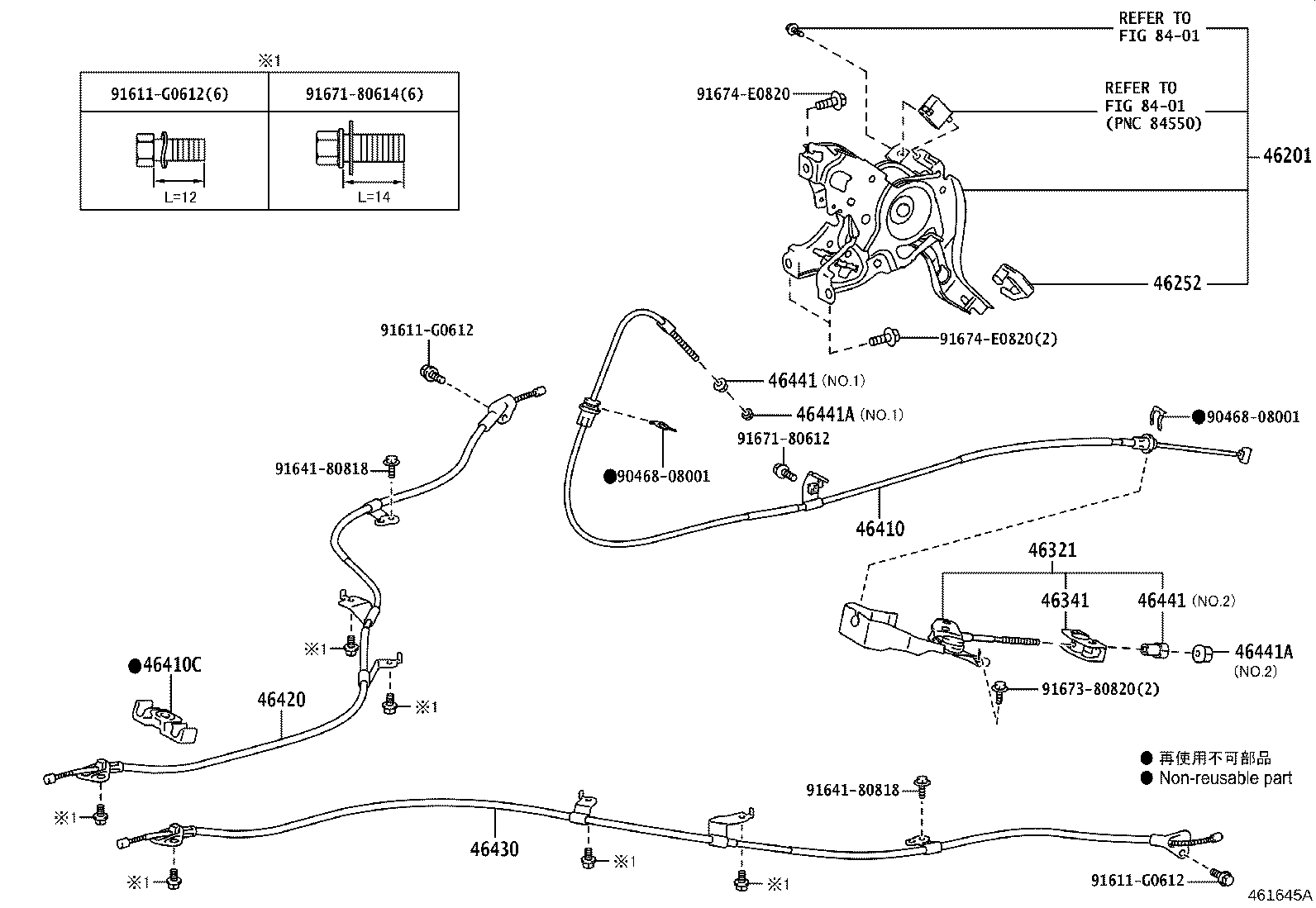

Figure 461436B 461436B 2014-09 → — Figure 461645A 461645A 2018-12 → —

Part groups

PNCDescription
46201 Pedal Sub-assy, Parking Brake
46252 Pad, Parking Pedal
46321 Lever, Parking Brake Intermediate
46341 Equalizer, Parking Brake
46410 Cable Assy, Parking Brake, NO.1
46410C Clamp(FOR PARKING BRAKE FRONT CABLE)
46420 Cable Assy, Parking Brake, NO.2
46430 Cable Assy, Parking Brake, NO.3
46441 Nut, Wire Adjusting, NO.1
46441A Nut, Wire Adjusting, NO.2
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
