Toyota Probox/Succeed
2014-09 → present · chassis NCP16#,NSP160,NHP160 · catalogue 173120 · Japan
Supported model
Data version 2018-12

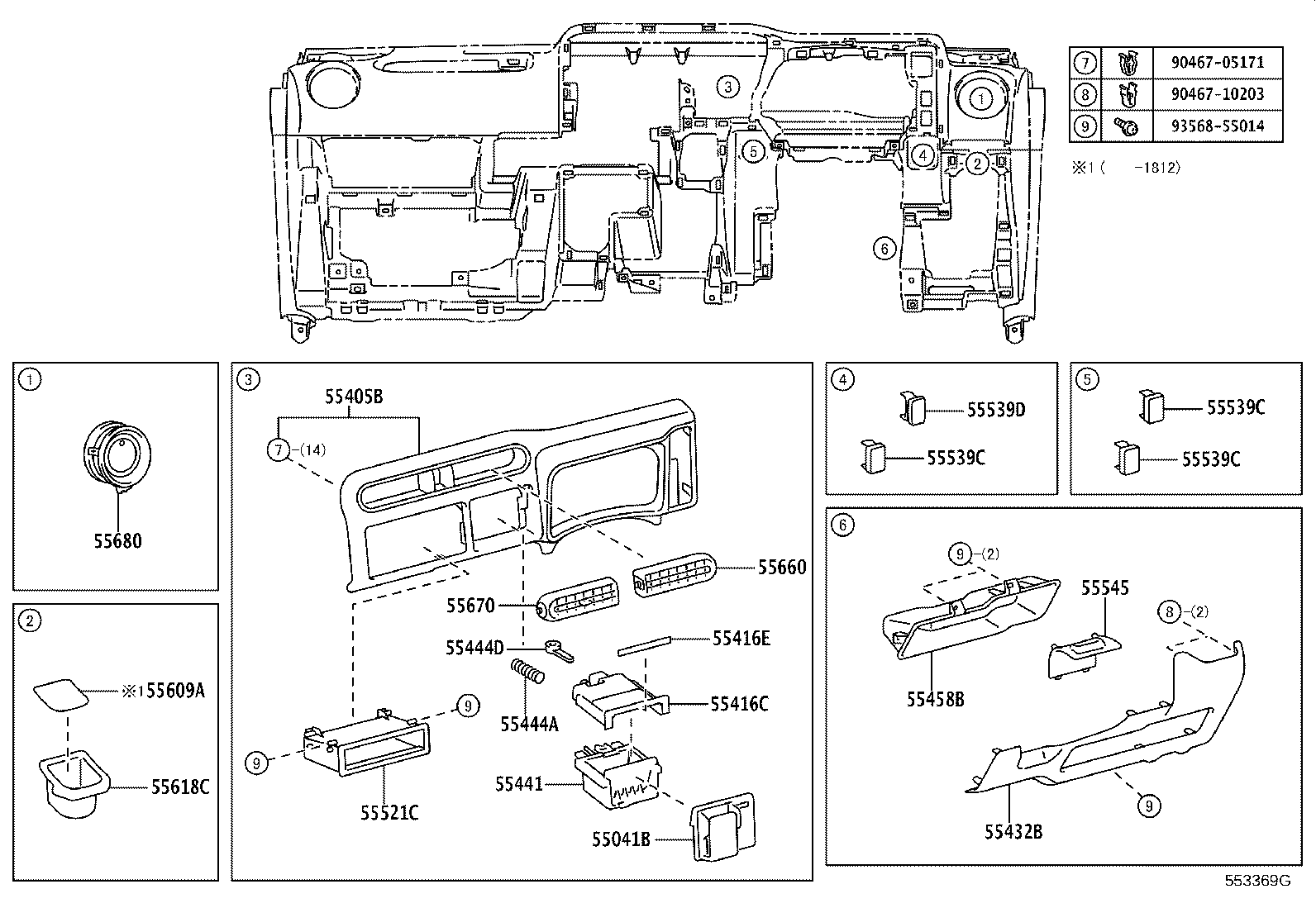

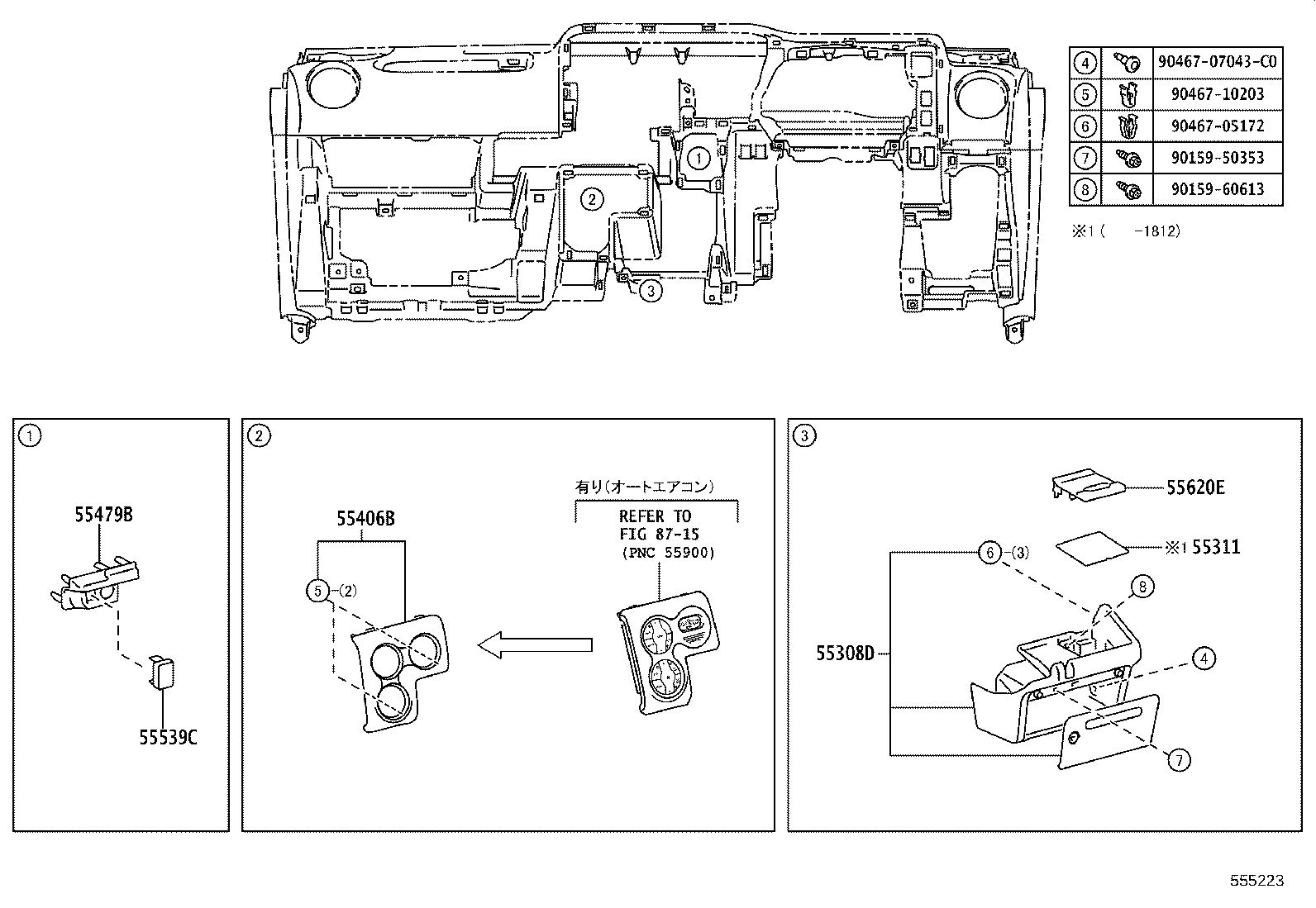

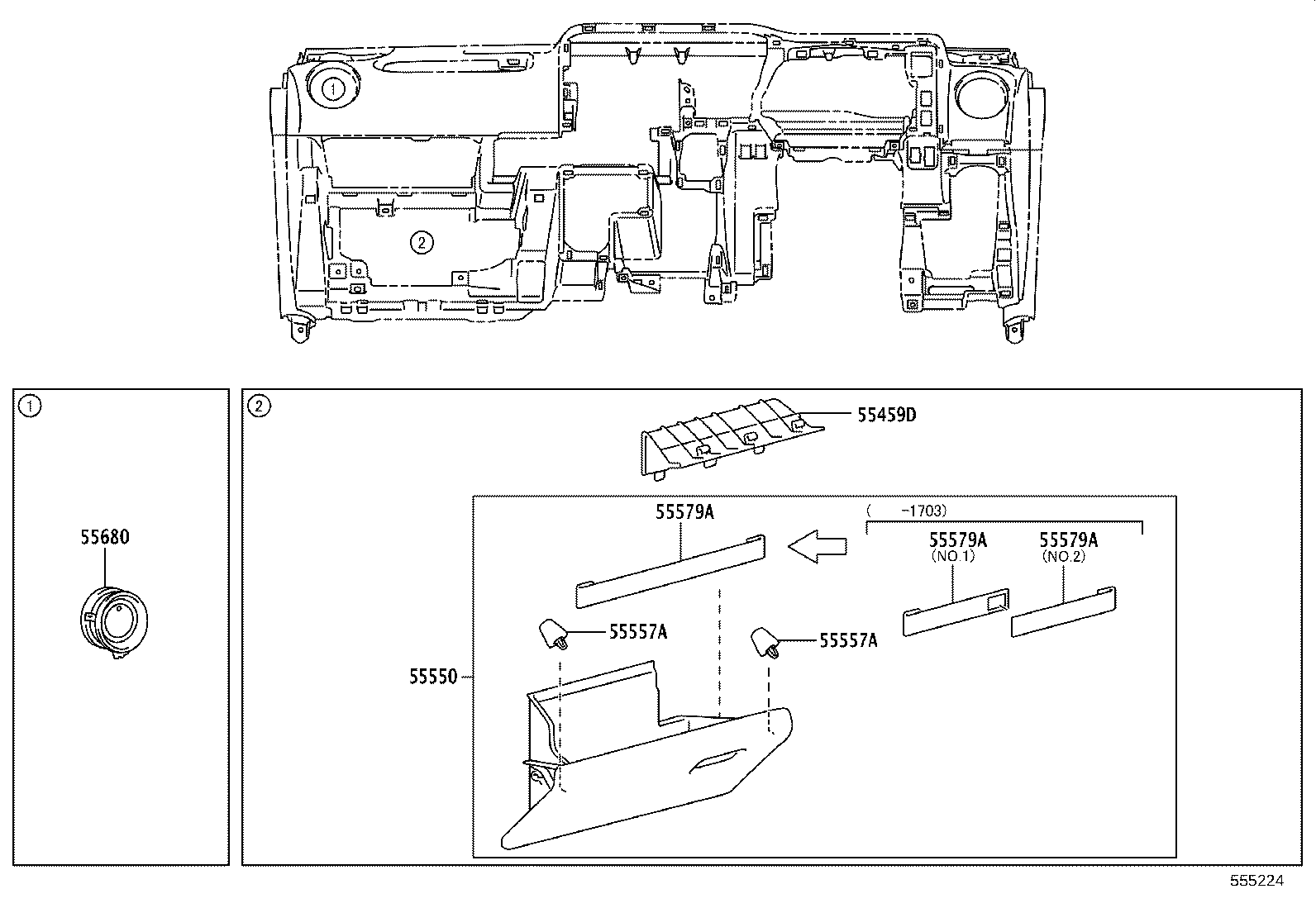

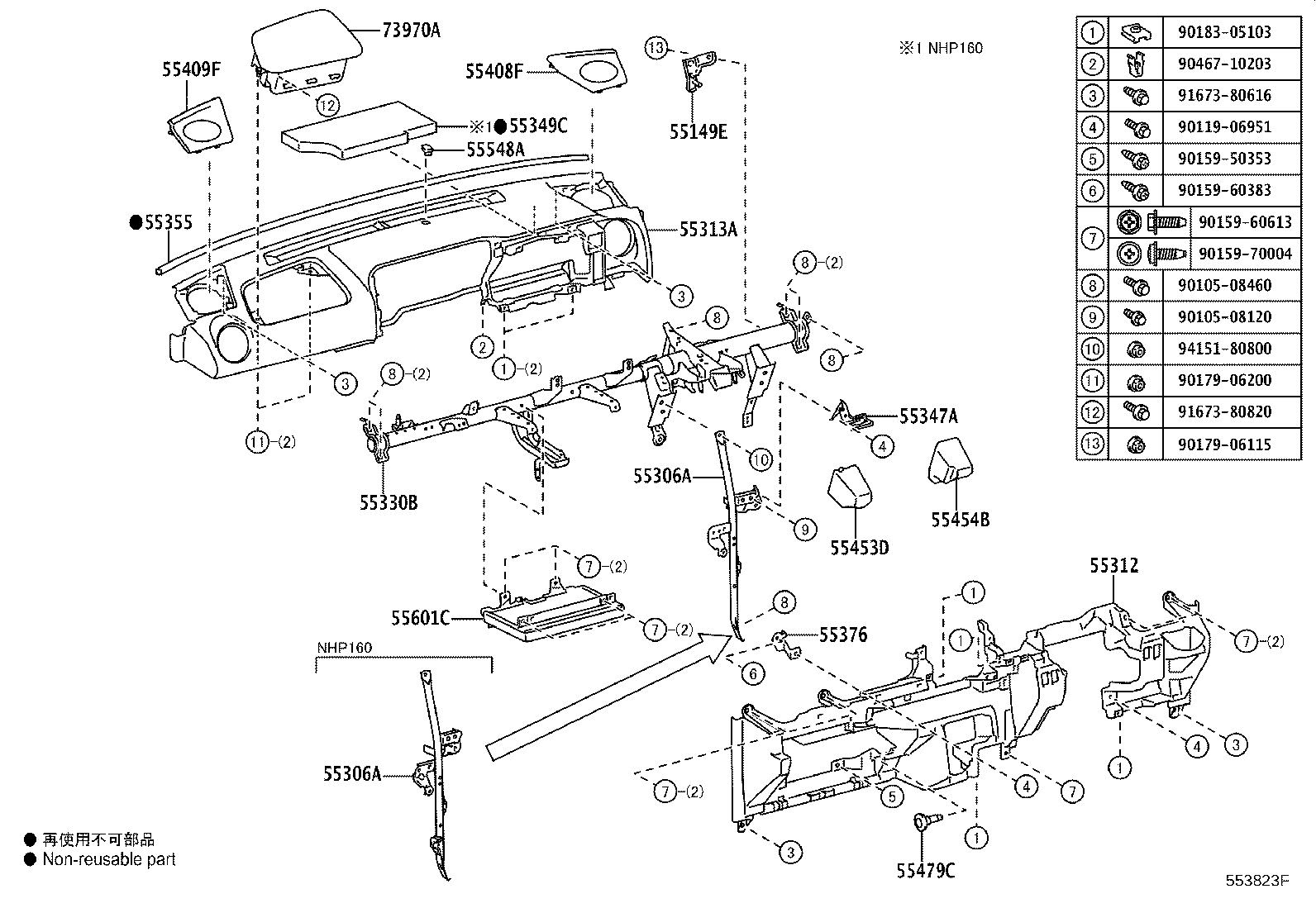

Instrument Panel & Glove Compartment
44 part groups · 5 illustrations
Part groups
| PNC | Description |
|---|---|
| 55041B | Door Sub-assy, Instrument Panel Box, NO.1 |
| 55149E | Bracket, Junction Block |
| 55306A | Brace Sub-assy, Instrument Panel, NO.1 |
| 55308D | Box Sub-assy, Instrument Panel, Center |
| 55311 | Mat, Instrument Panel Under Tray |
| 55312 | Panel, Instrument, Lower |
| 55313A | Panel, Instrument Main |
| 55330B | Reinforcement Assy, Instrument Panel |
| 55347A | Bracket, Instrument Panel Brace Mounting, NO.1 |
| 55349C | Cushion, Instrument Panel |
| 55355 | Cushion, Instrument Panel, NO.1 |
| 55376 | Bracket, Instrument Panel Mounting, NO.1 |
| 55405B | Panel Sub-assy, Instrument Cluster Finish, Center |
| 55406B | Panel Sub-assy, Instrument Cluster Finish, Lower Center |
| 55408F | Panel Sub-assy, Instrument Panel Speaker, NO.1 |
| 55409F | Panel Sub-assy, Instrument Panel Speaker, NO.2 |
| 55416C | Retainer, Instrument Cluster Finish Panel |
| 55416E | Label, Caution |
| 55432B | Panel, Instrument Panel Finish, Lower |
| 55441 | Box, Instrument Panel |
| 55444A | Spring, Instrument Panel Box |
| 55444D | Pin, Instrument Panel Box Door, NO.1 |
| 55453D | Pad, Instrument Panel Safety, NO.1 |
| 55454B | Pad, Instrument Panel Safety, NO.2 |
| 55458B | Cover, Instrument, Lwr |
| 55459D | Cover, Instrument, Lower LH |
| 55479B | Cover, Instrument, Lower Center |
| 55479C | Clip(FOR INSTRUMENT LOWER COVER) |
| 55521C | Cover, Stereo Opening |
| 55539C | Cover, Spare Switch Hole |
| 55539D | Cover, Spare Switch Hole |
| 55545 | Cover, Fuse Box Opening |
| 55548A | Cover, Instrument Panel Hole |
| 55550 | Door Assy, Glove Compartment |
| 55557A | Cushion, Glove Compartment Door Check |
| 55579A | Band, Glove Compartment Box |
| 55601C | Tray Sub-assy, Instrument Panel Under |
| 55609A | Mat Set, Instrument Panel Cup Holder |
| 55618C | Holder, Instrument Panel Cup |
| 55620E | Holder Assy, Instrument Panel Cup |
| 55660 | Register Assy, Instrument Panel, NO.2 |
| 55670 | Register Assy, Instrument Panel, NO.3 |
| 55680 | Register Assy, Instrument Panel, Lower NO.1 |
| 73970A | Airbag Assy, Instrument Panel Passenger |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
