Toyota Probox/Succeed

2014-09 → present · chassis NCP16#,NSP160,NHP160 · catalogue 173120 · Japan

Supported model Data version 2018-12
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Console Box & Bracket

11 part groups · 2 illustrations

Illustrations

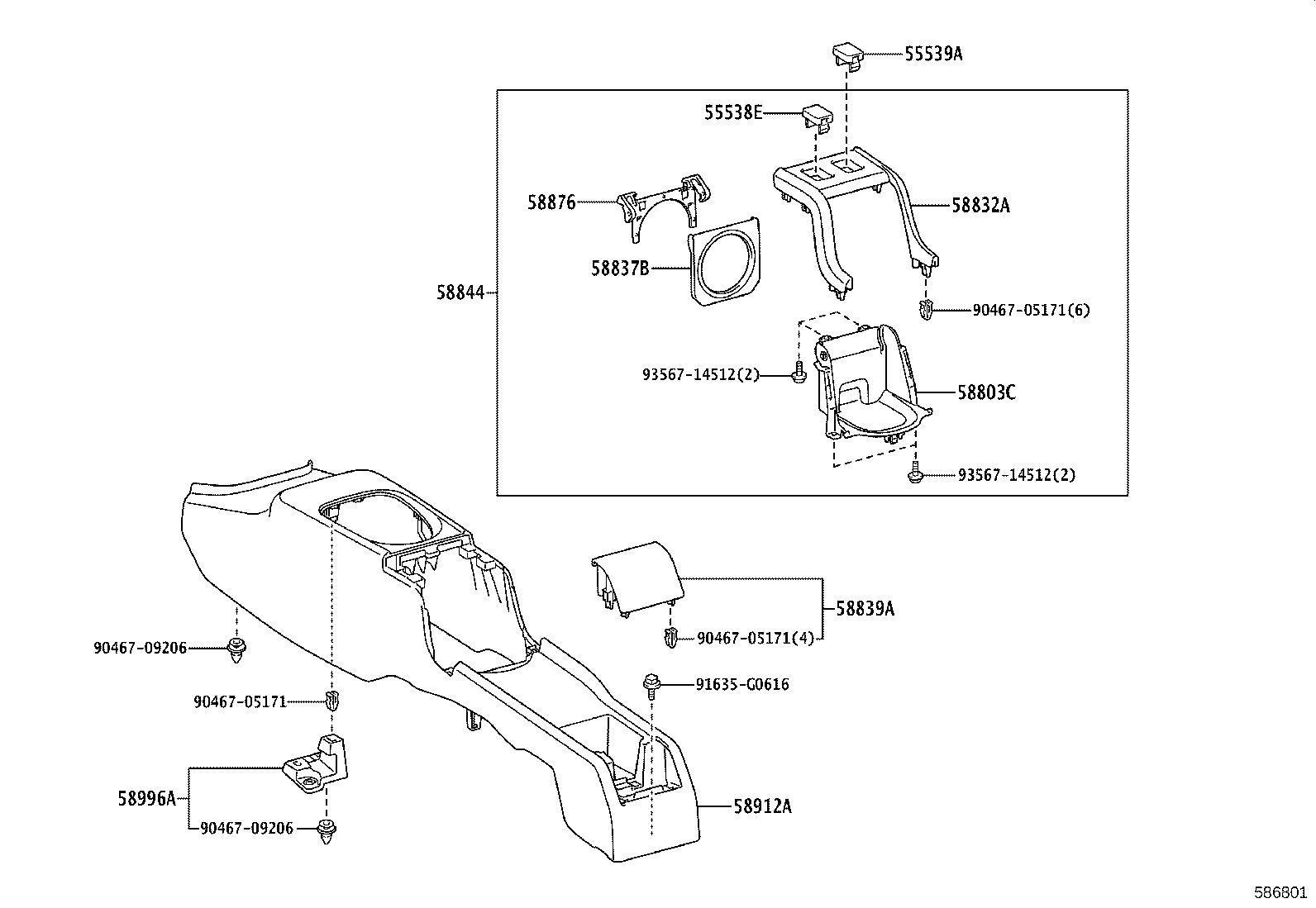

Figure 585358A 585358A 2014-09 → — Figure 586801 586801 2018-12 → —

Part groups

PNCDescription
55538E Cover, Spare Switch Hole
55539A Cover, Spare Switch Hole
58803C Box Sub-assy, Console Cup Holder
58832A Garnish, Console Upper Panel, Rear
58837B Box, Console Cup Holder
58839A Cover, Console Box Hole
58844 Bezel, Console Box
58876 Arm, Console Upper Panel
58912A Box, Rear Console
58995A Bracket, Console Box Mounting, NO.1
58996A Bracket, Console Box Mounting, NO.2
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
