Toyota Probox/Succeed

2014-09 → present · chassis NCP16#,NSP160,NHP160 · catalogue 173120 · Japan

Supported model Data version 2018-12
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Deck Board & Deck Trim Cover

15 part groups · 2 illustrations

Illustrations

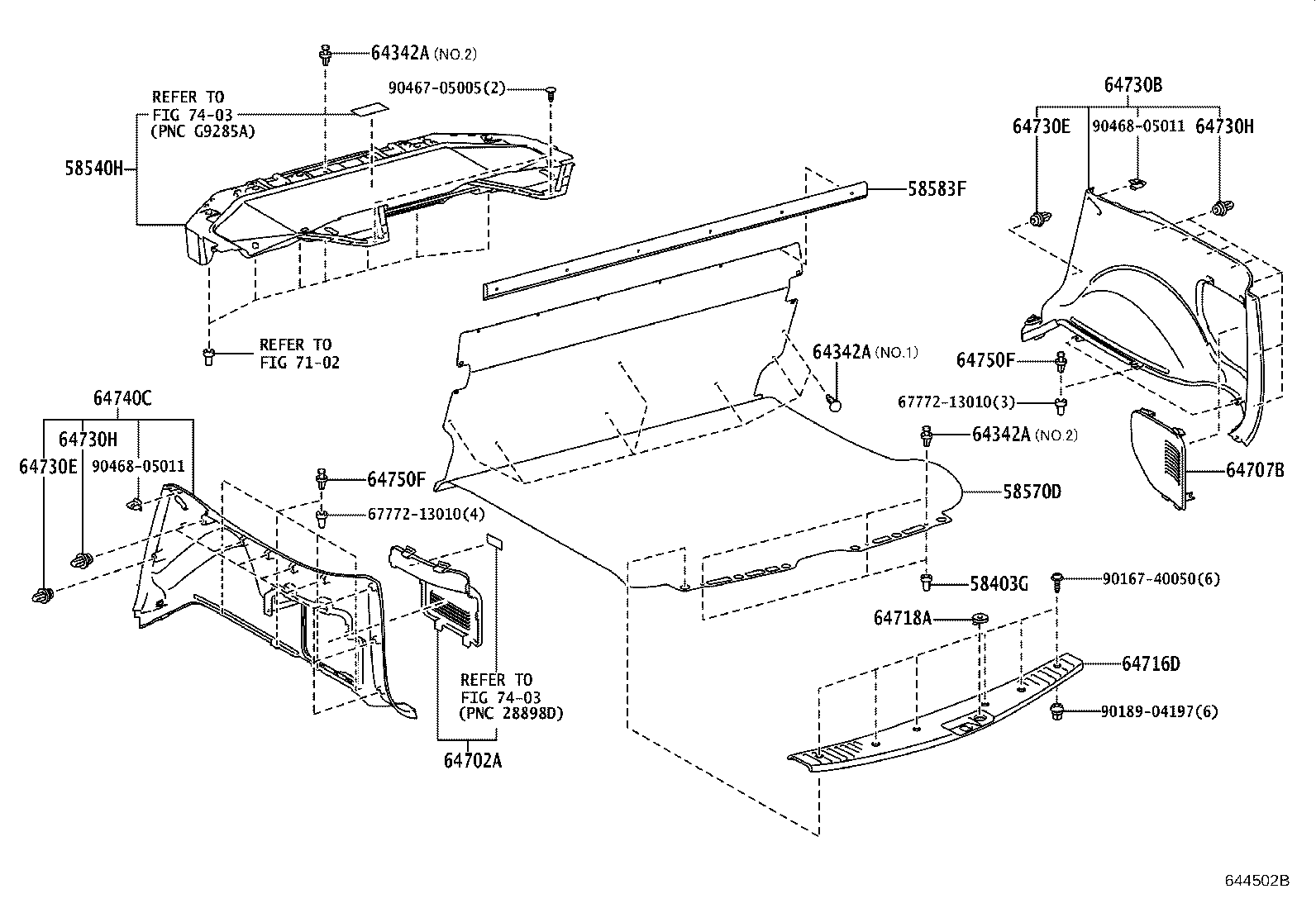

Figure 643610D 643610D 2014-09 → — Figure 644502B 644502B 2018-12 → —

Part groups

PNCDescription
58403G Cap, Deck Board Service Hole
58540H Mat Assy, Floor, Rear
58570D Carpet Assy, Rear Floor
58583F Plate, Rear Seatback Carpet Support
64342A Clip
64702A Cover Sub-assy, Deck Trim Side Service Hole
64707B Cover Sub-assy, Quarter Trim Jack
64714E Clip(FOR DECK TRIM SIDE COVER)
64716D Cover, Deck Trim, Rear
64718A Cover, Deck Trim Service Hole
64730B Panel Assy, Deck Trim Side, RH
64730E Clip(FOR DECK TRIM SIDE BOARD)
64730H Clip(FOR DECK TRIM SIDE PANEL)
64740C Panel Assy, Deck Trim Side, LH
64750F Clip(FOR DECK SIDE TRIM PANEL)
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
