Toyota Probox/Succeed
2014-09 → present · chassis NCP16#,NSP160,NHP160 · catalogue 173120 · Japan
Supported model
Data version 2018-12

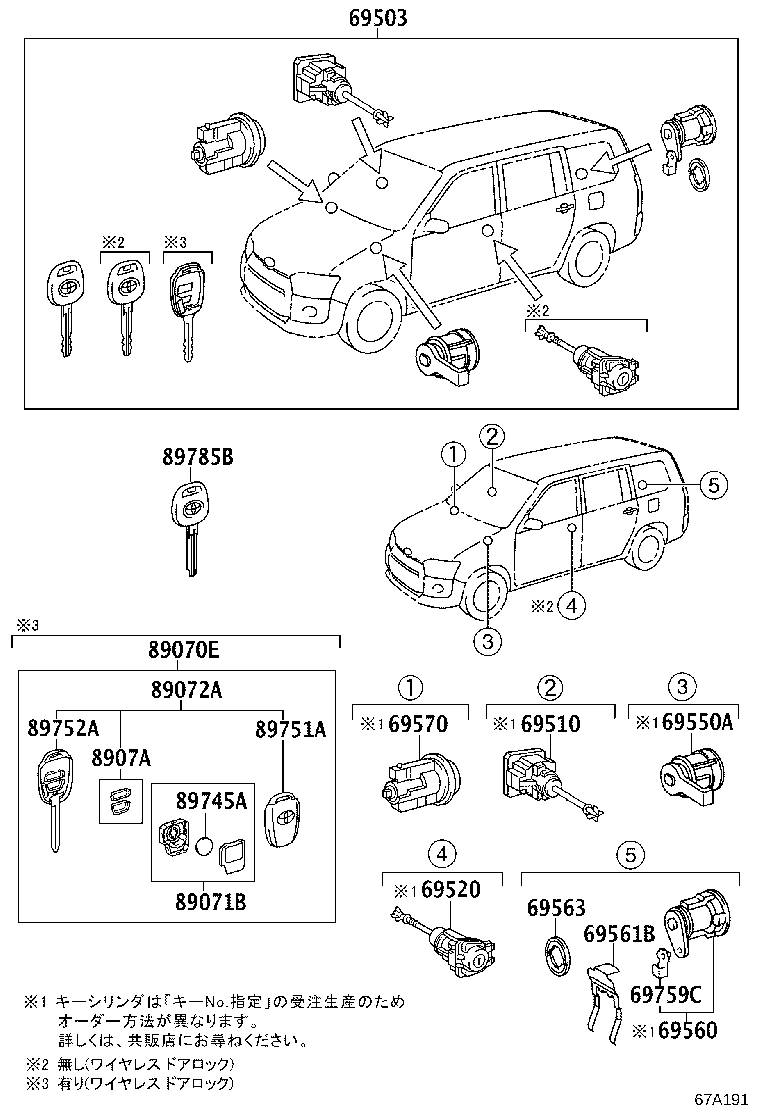

Lock Cylinder Set
18 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 69503 | Cylinder Set, Lock |
| 69503A | Key, Blank |
| 69510 | Cylinder Assy, Front Door Lock, RH |
| 69520 | Cylinder Assy, Front Door Lock, LH |
| 69550A | Cylinder Assy, Glove Compartment Door Lock |
| 69560 | Cylinder Assy, Back Door Lock |
| 69561B | Retainer, Back Door Lock Cylinder |
| 69563 | Pad, Back Door Lock Cylinder |
| 69570 | Cylinder Assy, Ignition Switch Lock |
| 69759C | Snap, Back Door Lock Cylinder |
| 89070E | Transmitter Assy, Door Control |
| 89071B | Module Set, Transmitter Sub-assy, Door Control |
| 89072A | Housing Set, Door Control Transmitter |
| 8907A | Switch Set, Transmitter |
| 89745A | Battery, Transmitter |
| 89751A | Cover, Transmitter Housing |
| 89752A | Case, Transmitter Housing |
| 89785B | Transmitter, Transponder Key Master |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
