Toyota Probox/Succeed

2014-09 → present · chassis NCP16#,NSP160,NHP160 · catalogue 173120 · Japan

Supported model Data version 2018-12
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Caution Plate (EXTERIOR & INTERIOR)

16 part groups · 3 illustrations

Illustrations

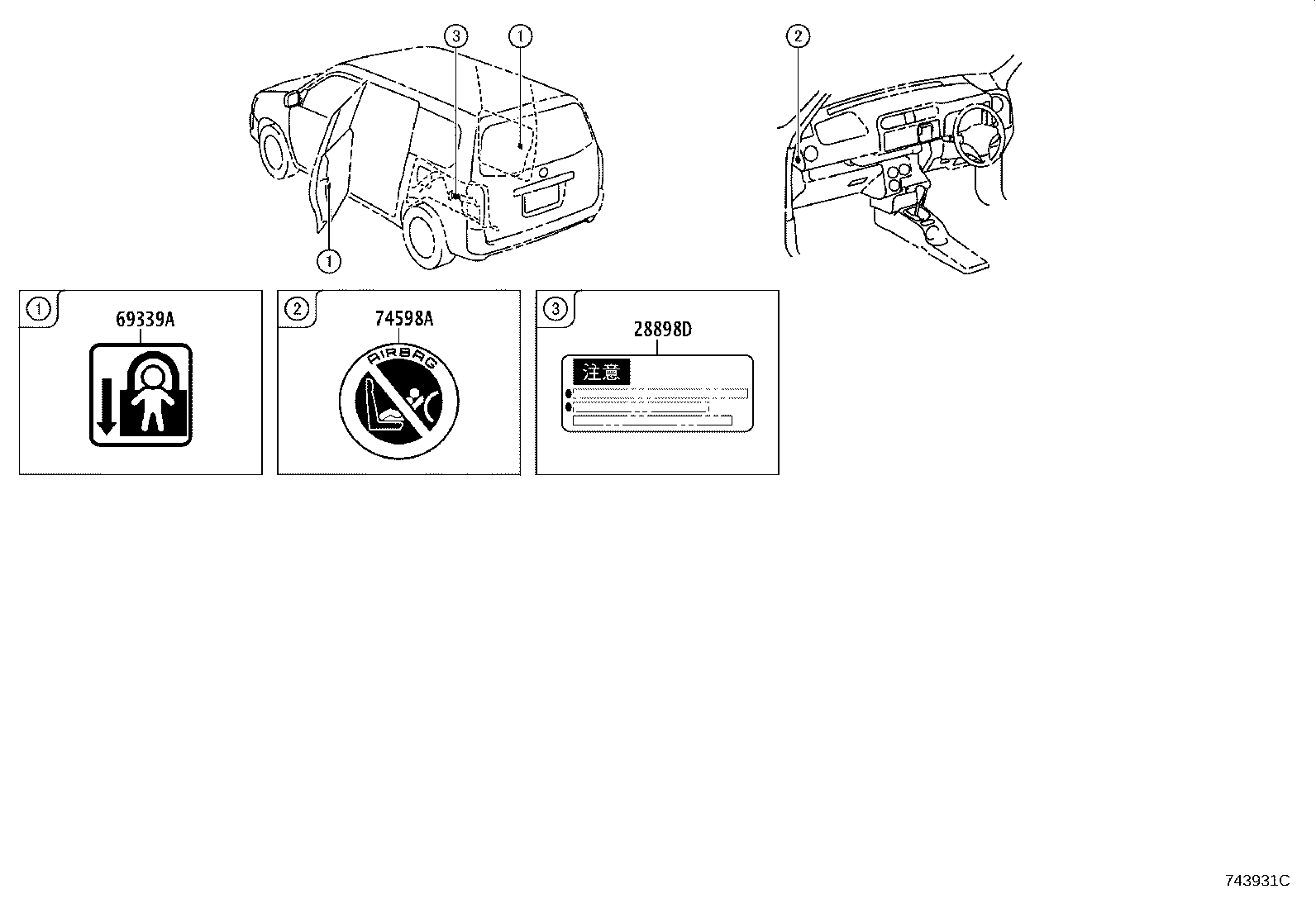

Figure 743930C 743930C 2014-09 → — Figure 744864B 744864B 2014-09 → — Figure 743931C 743931C 2014-09 → —

Part groups

PNCDescription
11285A Label, Coolant System Notice
11293D Label, Engine Caution
11296C Label, Engine Service Information
16793B Label, Cooling Fan Information
16793E Label, Cooling Fan Caution
28898D Label, Battery Information
41992 Label, Differential Notice
69339A Plate, Child Protector Lock Caution
74511F Label, Name (IDENTIFICATION LASER LABEL)
74559B Label, Fuel Information
74561A Label, Fuel Consumption Information
74562B Label, Emission Information
74598A Label, Passenger Airbag Caution
74751 Label, Tire Pressure Information
88723E Label, Cooler Service Caution
G9275 Label, Battery Caution, NO.1
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
