Toyota Probox/Succeed

2014-09 → present · chassis NCP16#,NSP160,NHP160 · catalogue 173120 · Japan

Supported model Data version 2018-12
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Rear Combination Lamp

14 part groups · 2 illustrations

Illustrations

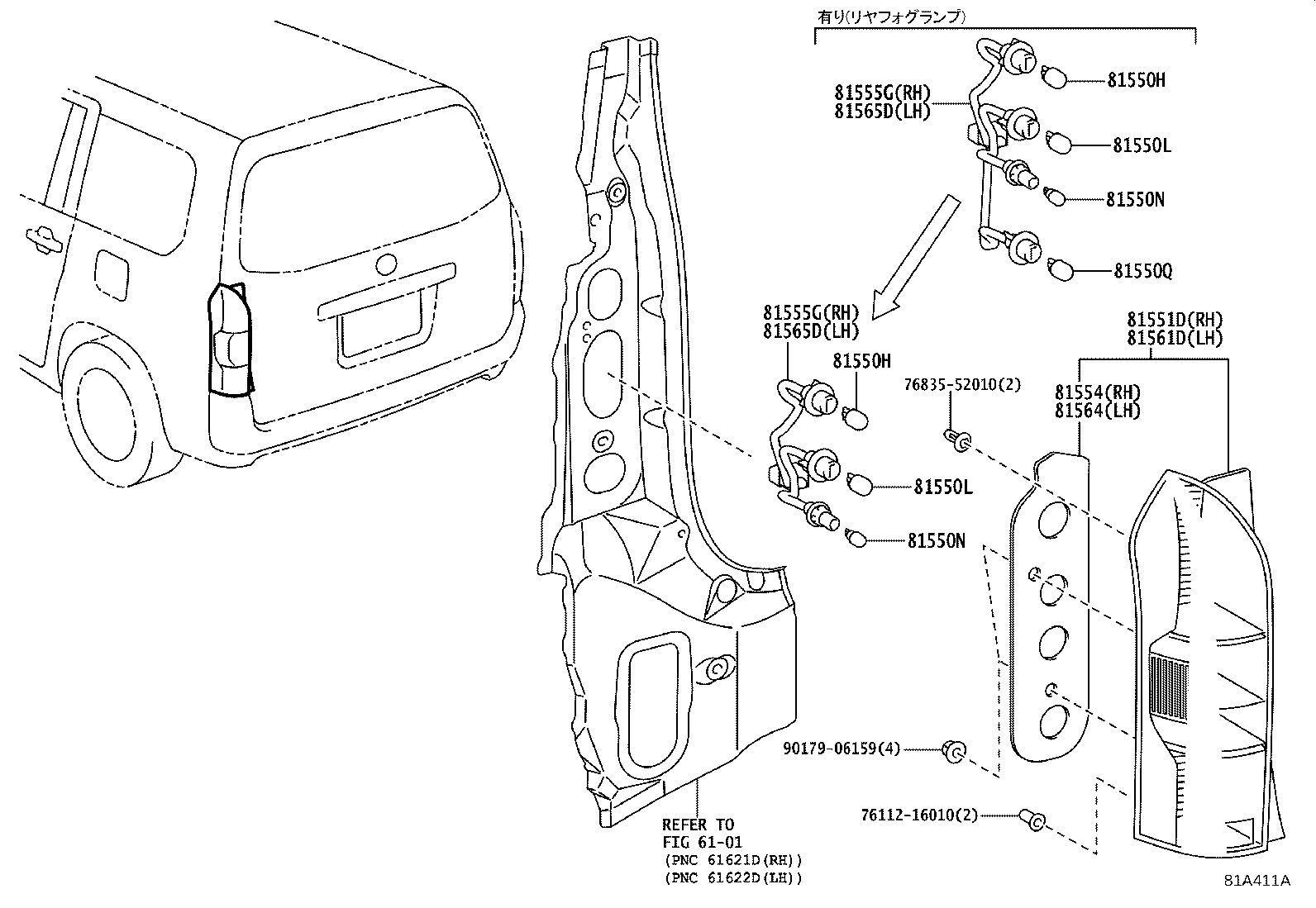

Figure 817120C 817120C 2014-09 → 2022-01 Figure 81A411A 81A411A 2022-01 → —

Part groups

PNCDescription
81550H Bulb, Tail & Stop Lamp
81550J Socket, Tail & Stop Lamp
81550L Bulb, Rear Turn Signal Lamp
81550M Socket, Rear Turn Signal Lamp
81550N Bulb, Back UP Lamp
81550P Socket, Back UP Lamp
81550Q Bulb, Rear Fog Lamp, NO.1
81550R Socket, Rear Fog Lamp
81551D Lens & Body, Rear Combination Lamp, RH
81554 Gasket, Rear Combination Lamp Body, RH
81555G Cord, Rear Combination Lamp, RH
81561D Lens & Body, Rear Combination Lamp, LH
81564 Gasket, Rear Combination Lamp Body, LH
81565D Cord, Rear Combination Lamp, LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
