Toyota Probox/Succeed
2014-09 → present · chassis NCP16#,NSP160,NHP160 · catalogue 173120 · Japan
Supported model
Data version 2018-12

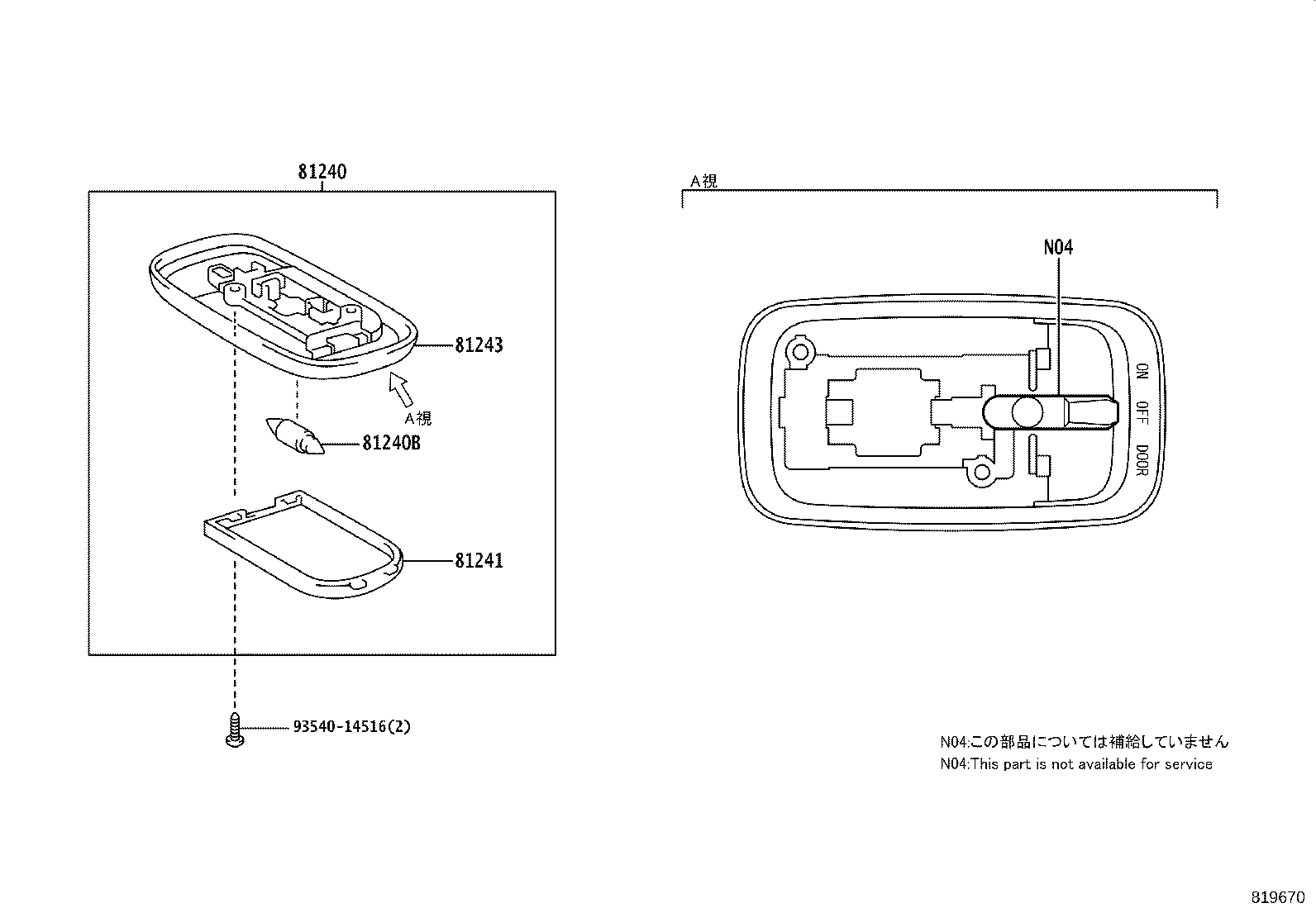

Interior Lamp
9 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 81080J | Lamp Assy, Interior Illumination, NO.1 |
| 81240 | Lamp Assy, Room, NO.1 |
| 81240B | Bulb, Room Lamp, NO.1 |
| 81240D | Lamp Assy, Room, NO.2 |
| 81240E | Bulb, Room Lamp, NO.2 |
| 81241 | Lens, Room Lamp, NO.1 |
| 81241A | Lens, Room Lamp, NO.2 |
| 81243 | Body, Room Lamp, NO.1 |
| 81243A | Body, Room Lamp, NO.2 |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
