Toyota Probox/Succeed

2014-09 → present · chassis NCP16#,NSP160,NHP160 · catalogue 173120 · Japan

Supported model Data version 2018-12
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Switch & Relay & Computer

100 part groups · 13 illustrations

Illustrations

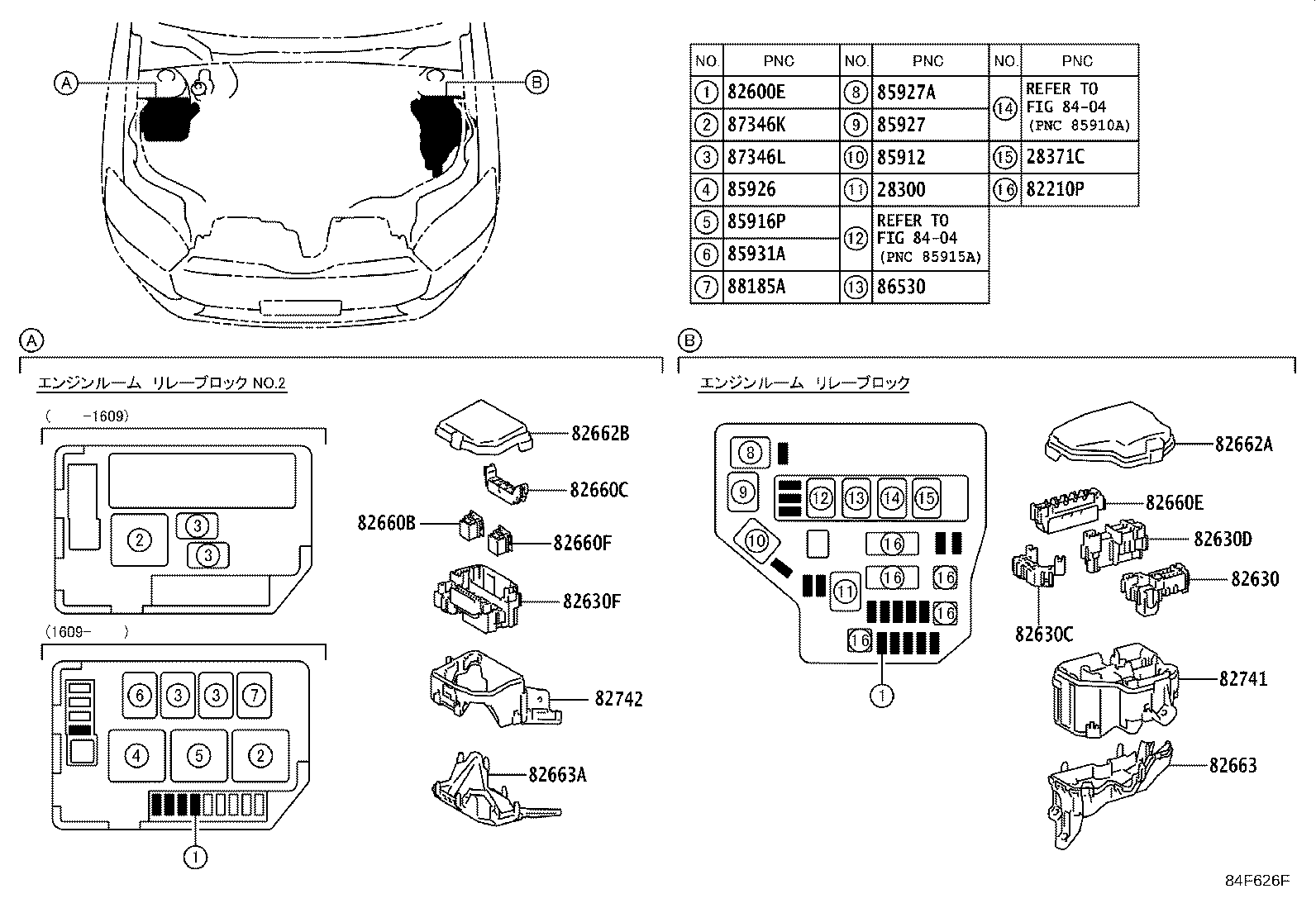

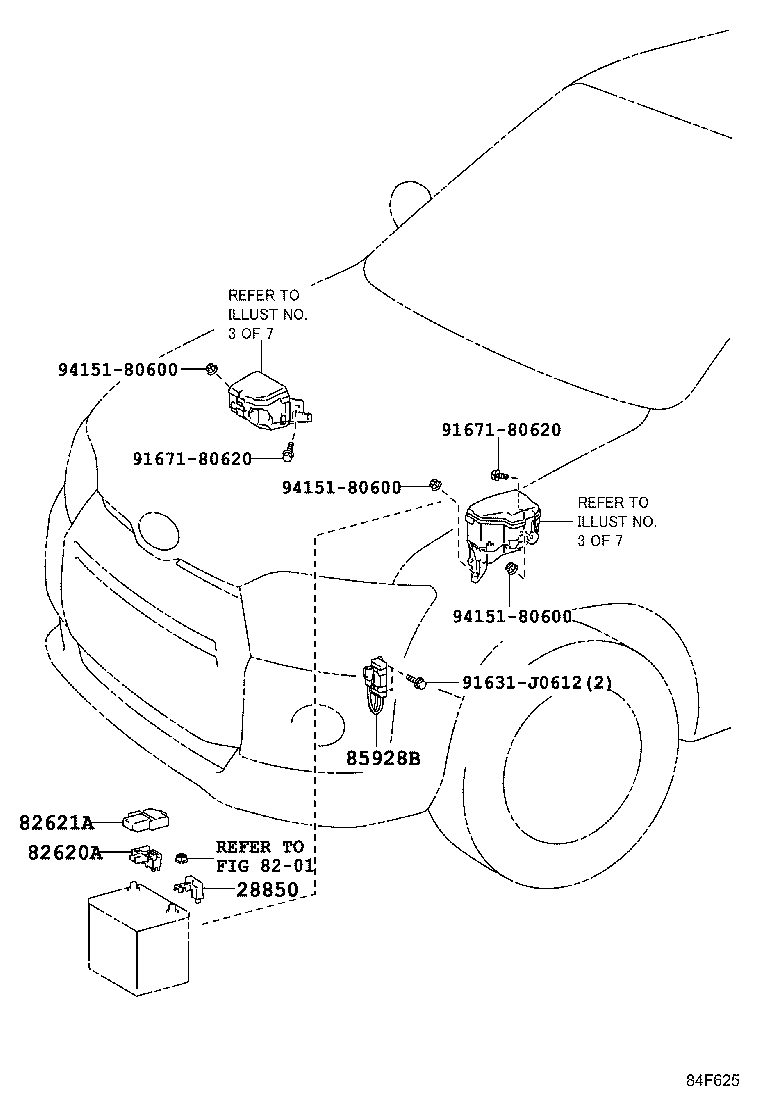

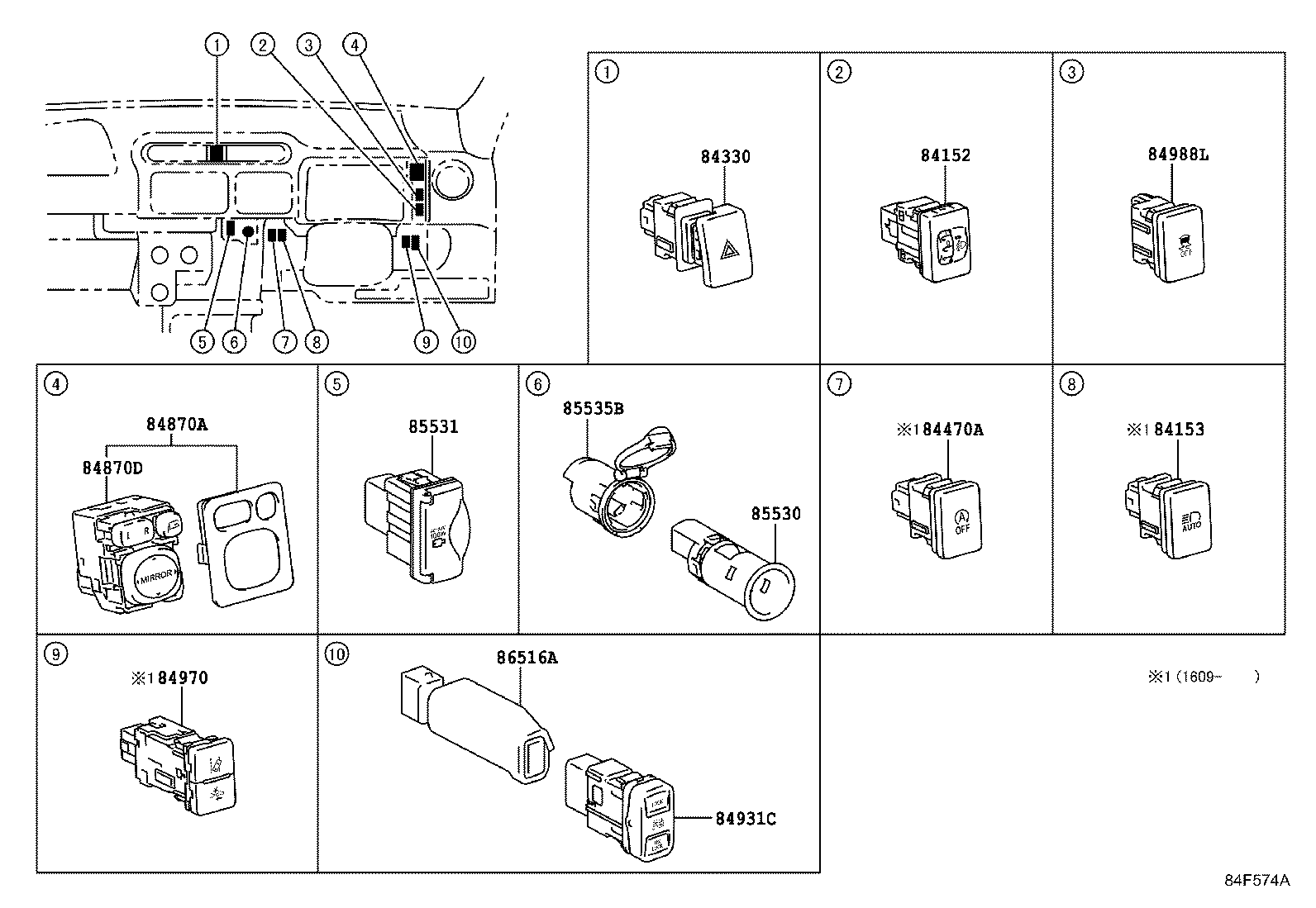

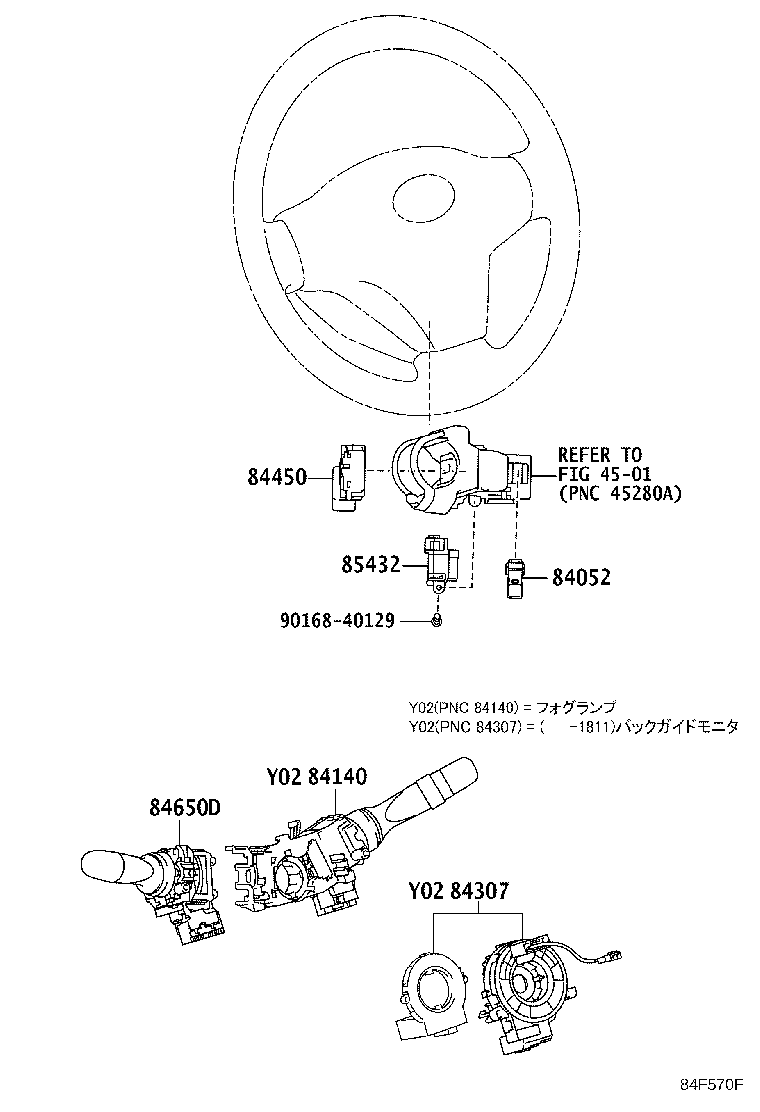

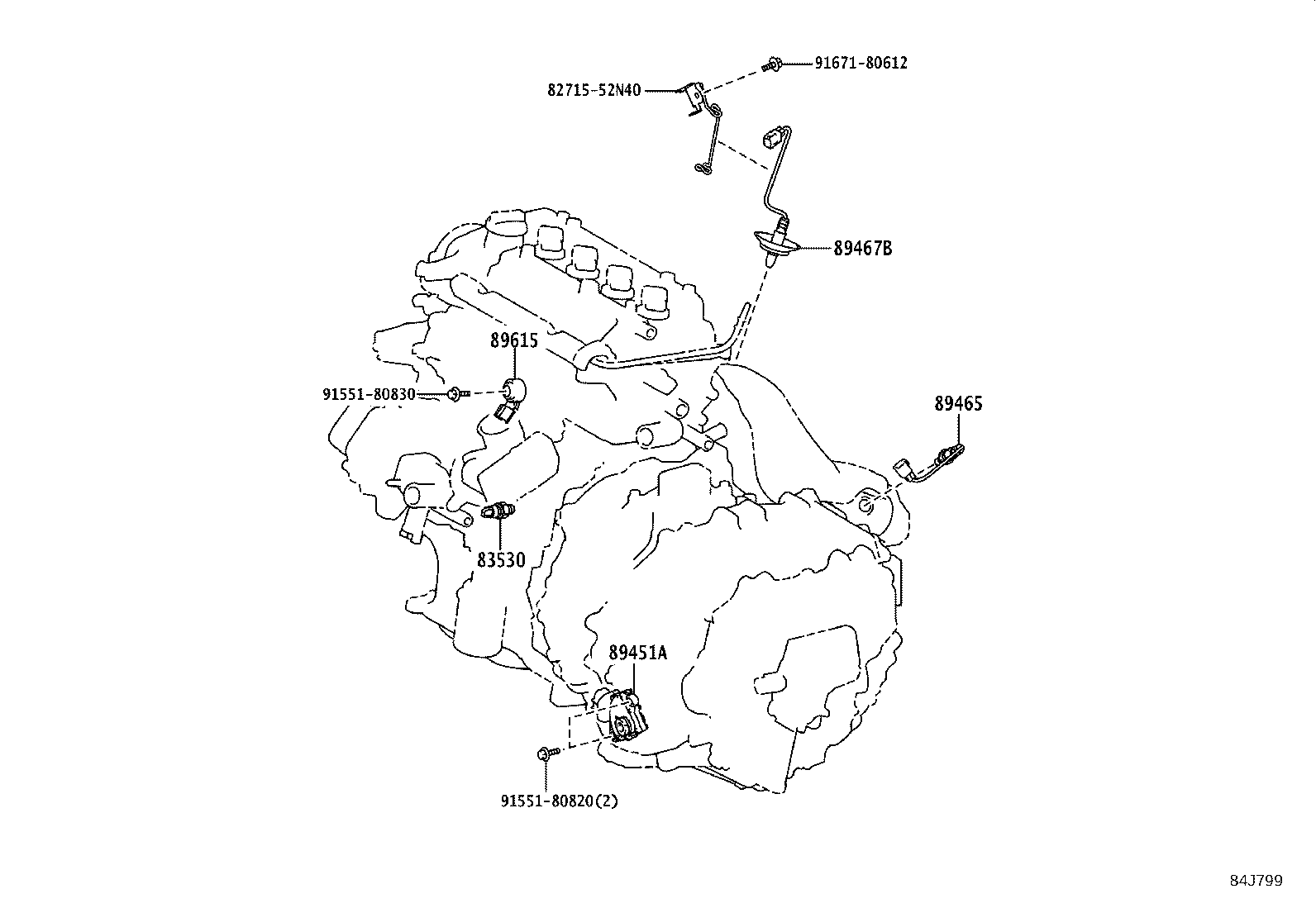

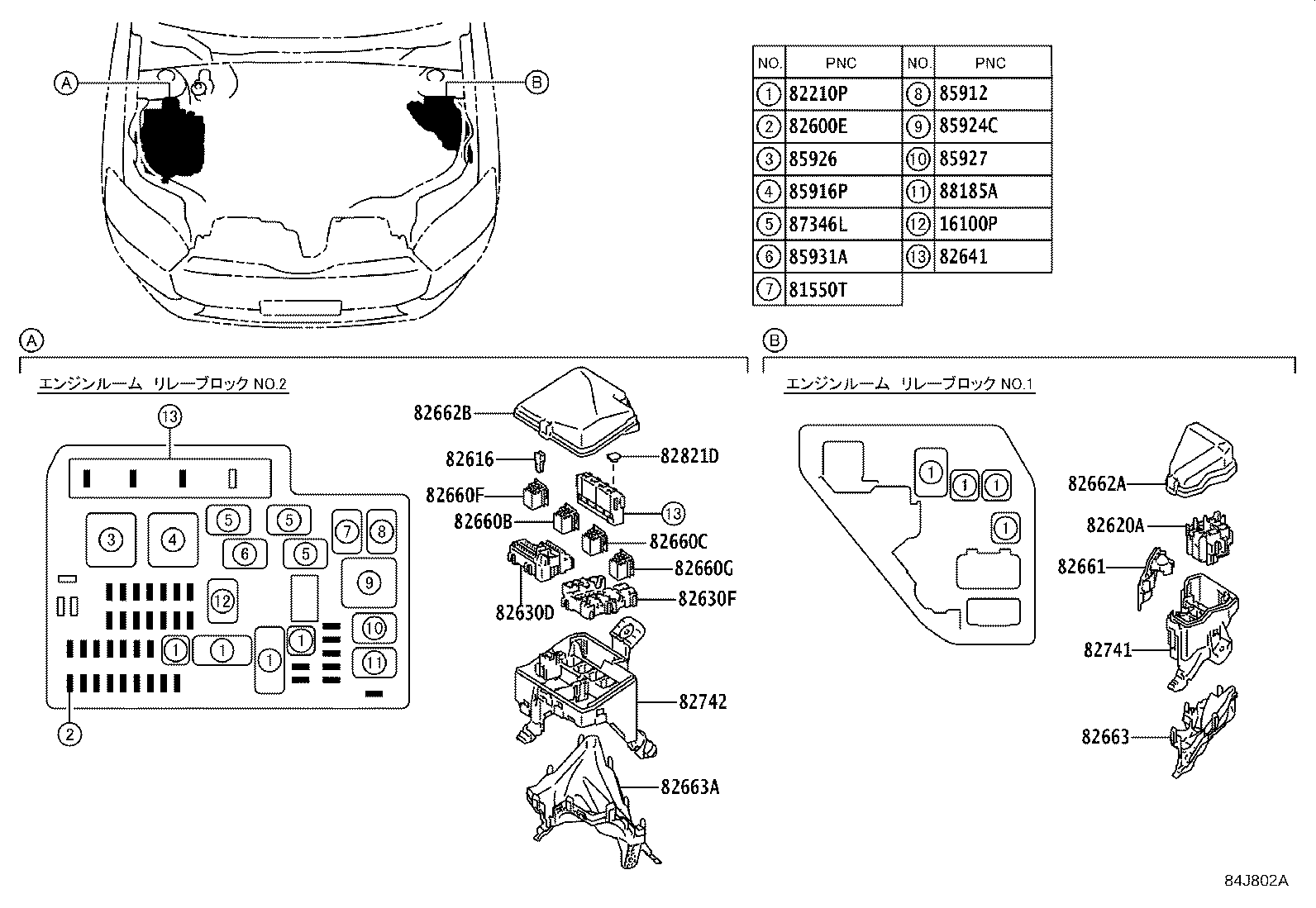

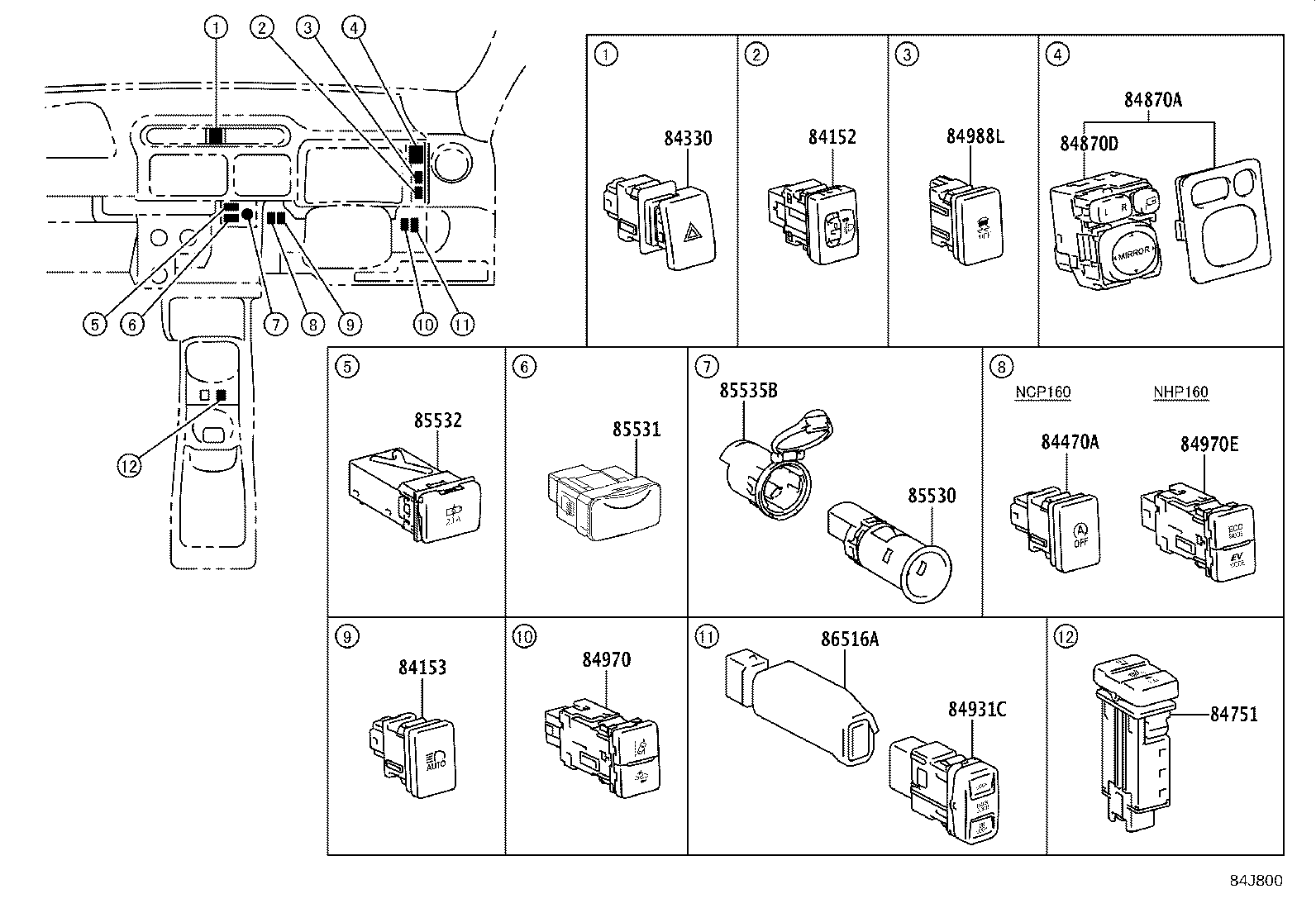

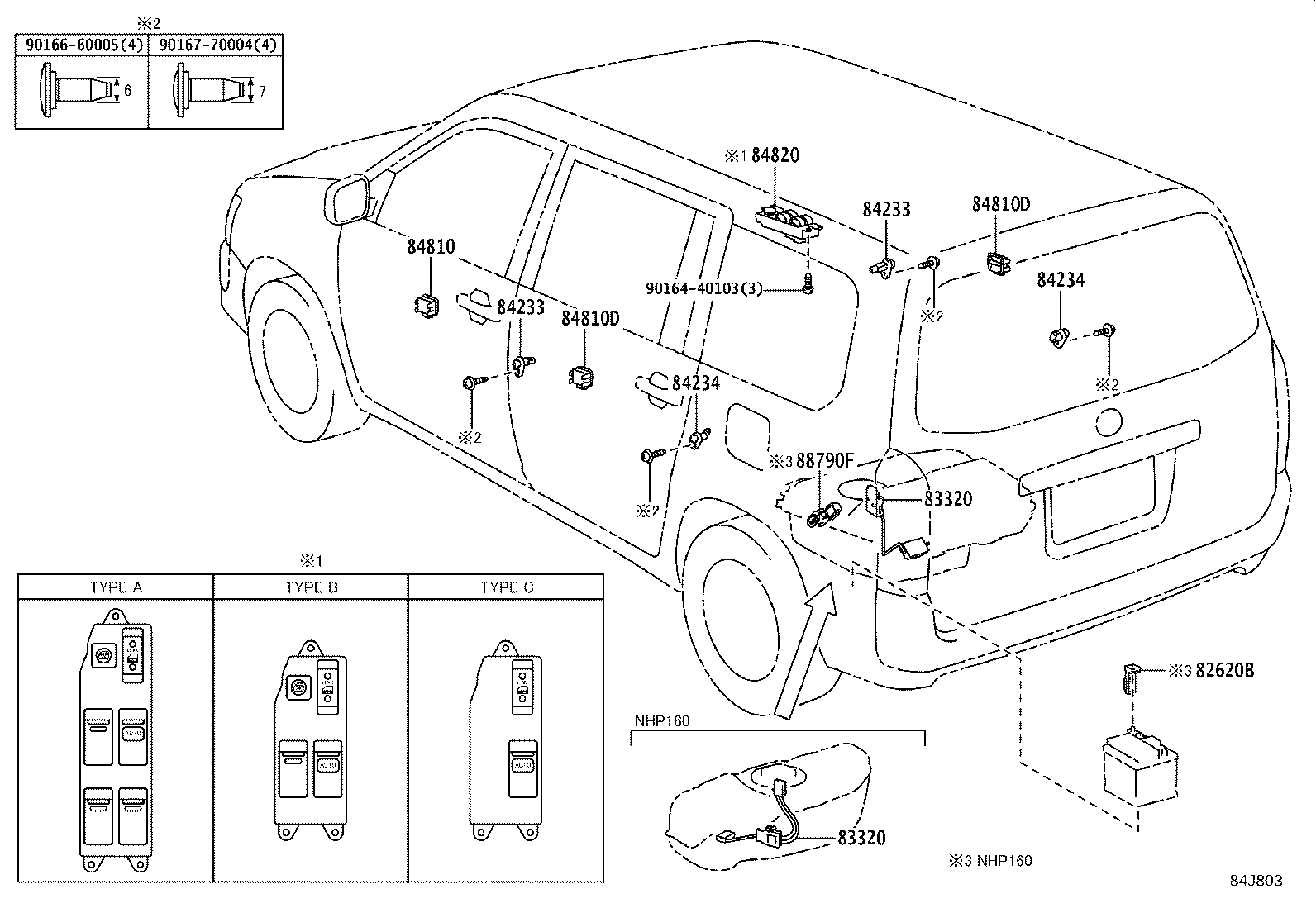

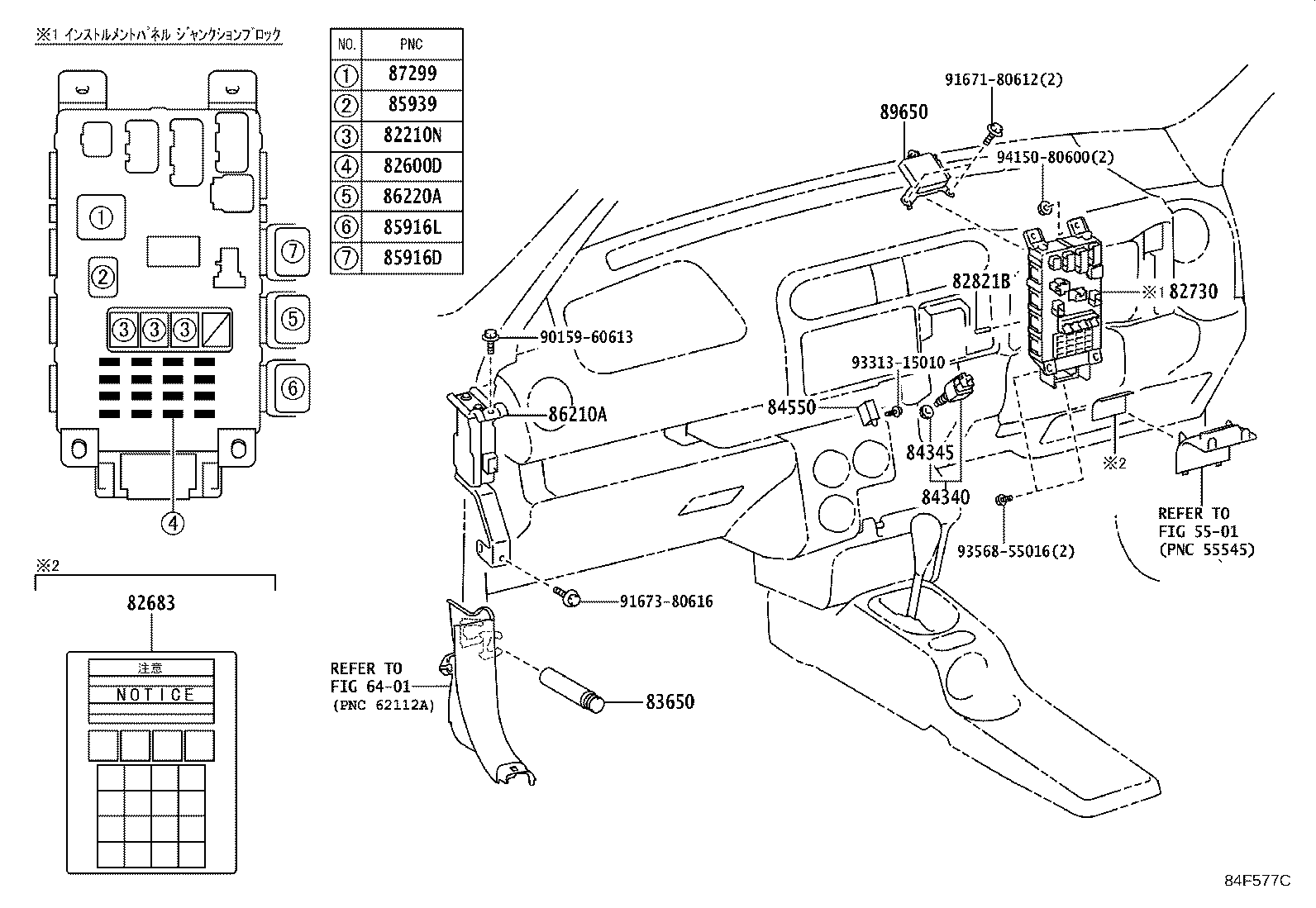

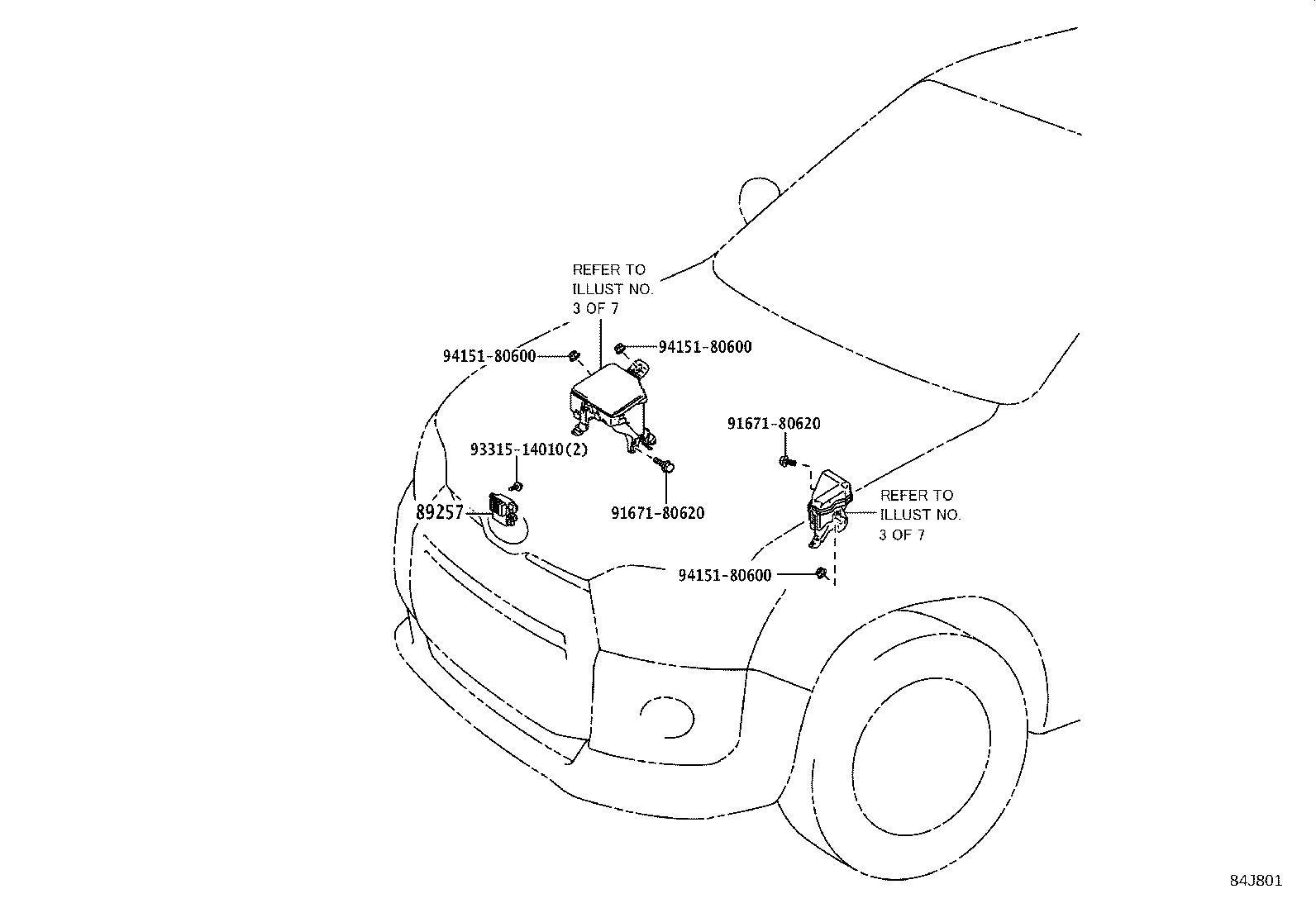

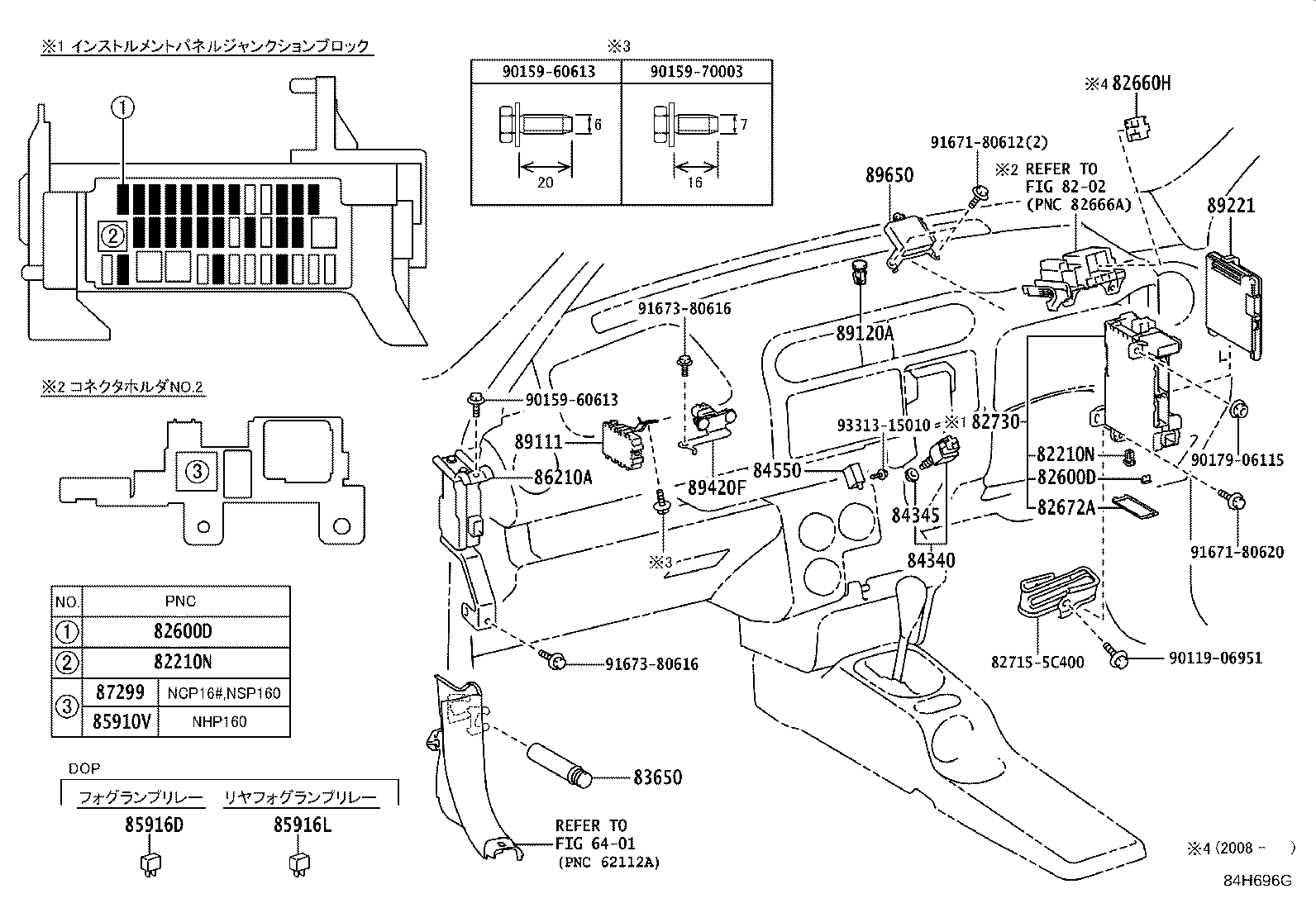

Figure 84F568 84F568 2014-09 → — Figure 84F569 84F569 2014-09 → — Figure 84J799 84J799 2018-12 → — Figure 84F625 84F625 2014-09 → — Figure 84J801 84J801 2018-12 → — Figure 84F626F 84F626F 2014-09 → — Figure 84J802A 84J802A 2018-12 → — Figure 84F577C 84F577C 2014-09 → 2016-09 Figure 84H696G 84H696G 2016-09 → — Figure 84F574A 84F574A 2014-09 → 2018-12 Figure 84J800 84J800 2018-12 → — Figure 84F570F 84F570F 2014-09 → — Figure 84J803 84J803 2014-09 → —

Part groups

PNCDescription
16100P Relay, Water Pump
28300 Relay Assy, Starter
28371C Relay, Ignition, NO.2
28850 Sensor Assy, Battery Current
81550T Relay, Back UP Lamp
82210N Instrument Panel Fusible Link
82210P Engine Room Fusible Link
82600D Instrument Panel Fuse
82600E Engine Room Fuse
82616 Puller, Fuse
82620A Block Assy, Fusible Link
82620B Block Assy, Fusible Link
82621A Cover, Fusible Link
82630 Holder Assy, Fuse
82630C Holder Assy, Fuse
82630D Holder, Fuse
82630F Holder, Fuse
82641 Relay, Integration NO.1
82660B Block Assy, Relay
82660C Block Assy, Relay
82660E Block Assy, Relay
82660F Block Assy, Relay
82660G Block Assy, Relay
82660H Block Assy, Relay
82661 Cover, Relay Block, NO.1
82662A Cover, Relay Block, Upper, NO.1
82662B Cover, Relay Block, Upper, NO.2
82663 Cover, Relay Block, Lower
82663A Cover, Relay Block, Lower, NO.2
82672A Cover, Junction Block
82683 Plate, Fuse Block Caution
82730 Block Assy, Instrument Panel Junction
82741 Block, Engine Room Relay
82742 Block, Engine Room Relay, NO.2
82821B Cover, Connector
82821D Cover, Connector
83320 Gage Assy, Fuel Sender
83530 Switch Assy, Oil Pressure (FOR ENGINE)
83650 Fusee
84052 Switch Assy, Un-lock Warning
84140 Switch Assy, Headlamp Dimmer
84152 Switch, Headlamp Leveling
84153 Switch, Auto High Beam
84233 Switch Assy, Courtesy Lamp (FOR FRONT DOOR)
84234 Switch Assy, Courtesy Lamp (FOR REAR DOOR)
84307 Cable Sub-assy, Spiral W/Sensor
84330 Switch Assy, Hazard Warning Signal
84340 Switch Assy, Stop Lamp
84345 Adjuster, Stop Lamp Switch Mounting
84450 Switch Assy, Ignition OR Starter
84470A Switch Assy, Ecorun Cancel
84540 Switch Assy, Neutral Start
84550 Switch Assy, Parking Brake
84650D Switch Assy, Windshield Wiper (W/RELAY, WIPER CONTROL)
84751 Switch, Seat Heater
84810 Switch Assy, Power Window Regulator
84810D Switch Assy, Power Window Regulator, Rear
84820 Master Switch Assy, Power Window Regulator
84870A Switch Assy, Outer Mirror
84870D Switch Assy, Outer Mirror, NO.2
84931C Switch, Back Door Control
84970 Switch Assy, Combination
84970E Switch Assy, Combination NO.2
84988L Switch, Vsc Off
85432 Solenoid, Key Interlock
85530 Socket Assy, Power Outlet, NO.1
85531 Socket, Power Outlet
85532 Socket, Usb Charger
85535B Cover, Power Outlet Socket, NO.1
85910V Relay, Seat Heater
85912 Relay, Defogger
85916D Relay, Fog Lamp
85916L Relay, Rear Fog Lamp
85916P Relay, Headlamp
85924C Relay, Igct
85926 Relay, Headlamp Dimmer
85927 Relay, Cooling Fan
85927A Relay, Cooling Fan, NO.2
85928B Resistor, Cooling Fan
85931A Relay, Brake Lamp
85939 Relay, Power Window
86210A Inverter Assy, Voltage
86220A Relay, Inverter
86516A Condenser
86530 Relay Assy, Horn
87299 Relay, Heater
87346K Relay, Ptc Heater
87346L Relay, Ptc Heater
88185A Relay, Pre-collision City Heater
88790F Thermistor Assy
89111 Computer, Network Gateway
89120A Sensor, Automatic Light Control
89221 Computer, Multiplex Network Body
89257 Computer, Cooling Fan
89420F Sensor Assy, Vacuum
89451A Sensor, Shift Lever Position
89465 Sensor, Oxygen
89467B Sensor, Air Fuel Ratio
89615 Sensor, Knock Control
89650 Computer Assy, Power Steering
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
