Toyota Probox/Succeed

2014-09 → present · chassis NCP16#,NSP160,NHP160 · catalogue 173120 · Japan

Supported model Data version 2018-12
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Electronic Fuel Injection System

8 part groups · 3 illustrations

Illustrations

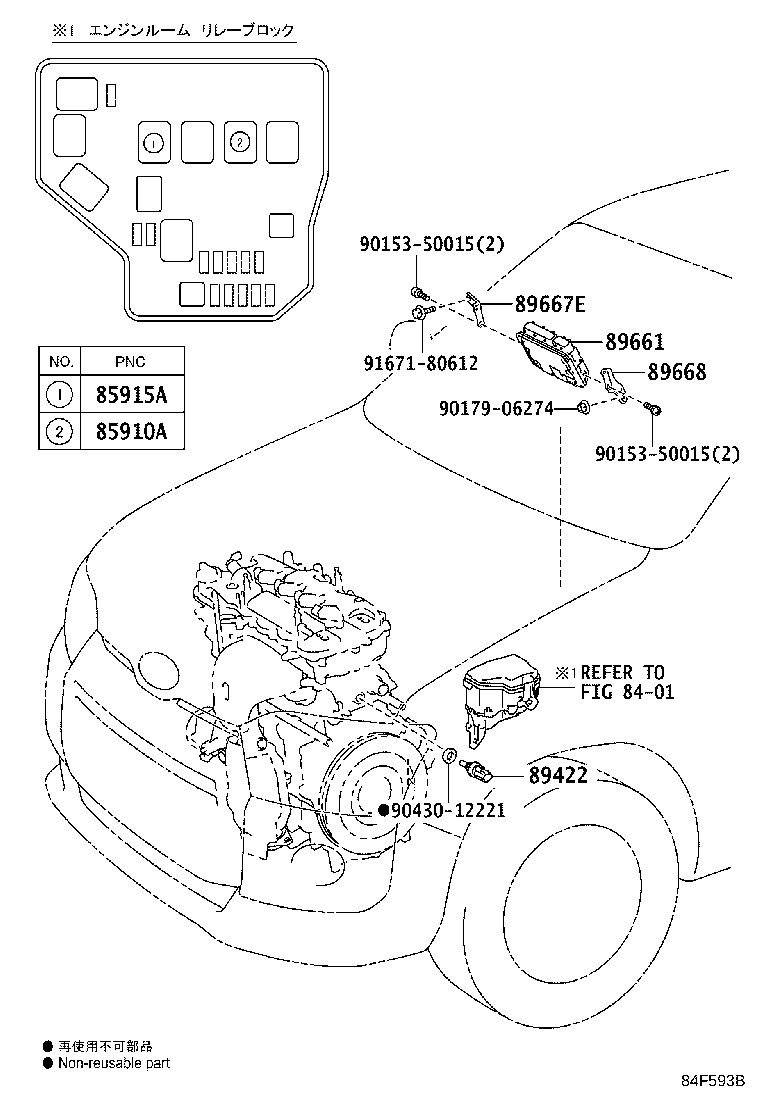

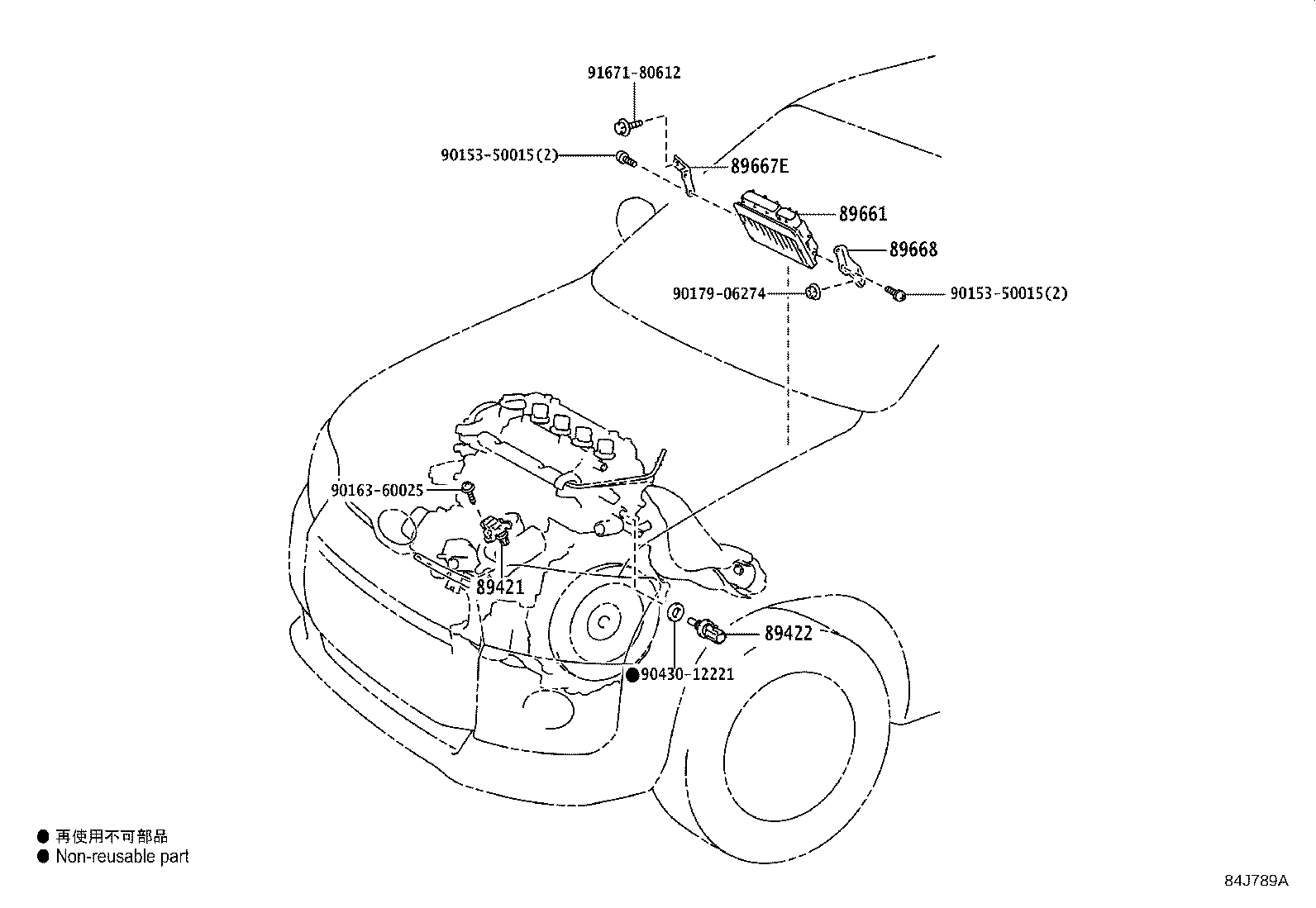

Figure 84F592B 84F592B 2014-09 → — Figure 84F593B 84F593B 2014-09 → — Figure 84J789A 84J789A 2018-12 → —

Part groups

PNCDescription
85910A Relay Assy, Circuit Opening (FOR EFI)
85915A Relay, Main
89412A Sensor, E.G.R Gas Temperature
89421 Sensor Assy, Vacuum (FOR E.F.I.)
89422 Sensor, Water Temperature (FOR E.F.I.)
89661 Computer, Engine Control
89667E Bracket, Engine Control Computer, NO.1
89668 Bracket, Engine Control Computer, NO.2
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
