Toyota Probox/Succeed
2014-09 → present · chassis NCP16#,NSP160,NHP160 · catalogue 173120 · Japan
Supported model
Data version 2018-12
Mirror
15 part groups · 3 illustrations
Part groups
| PNC | Description |
|---|---|

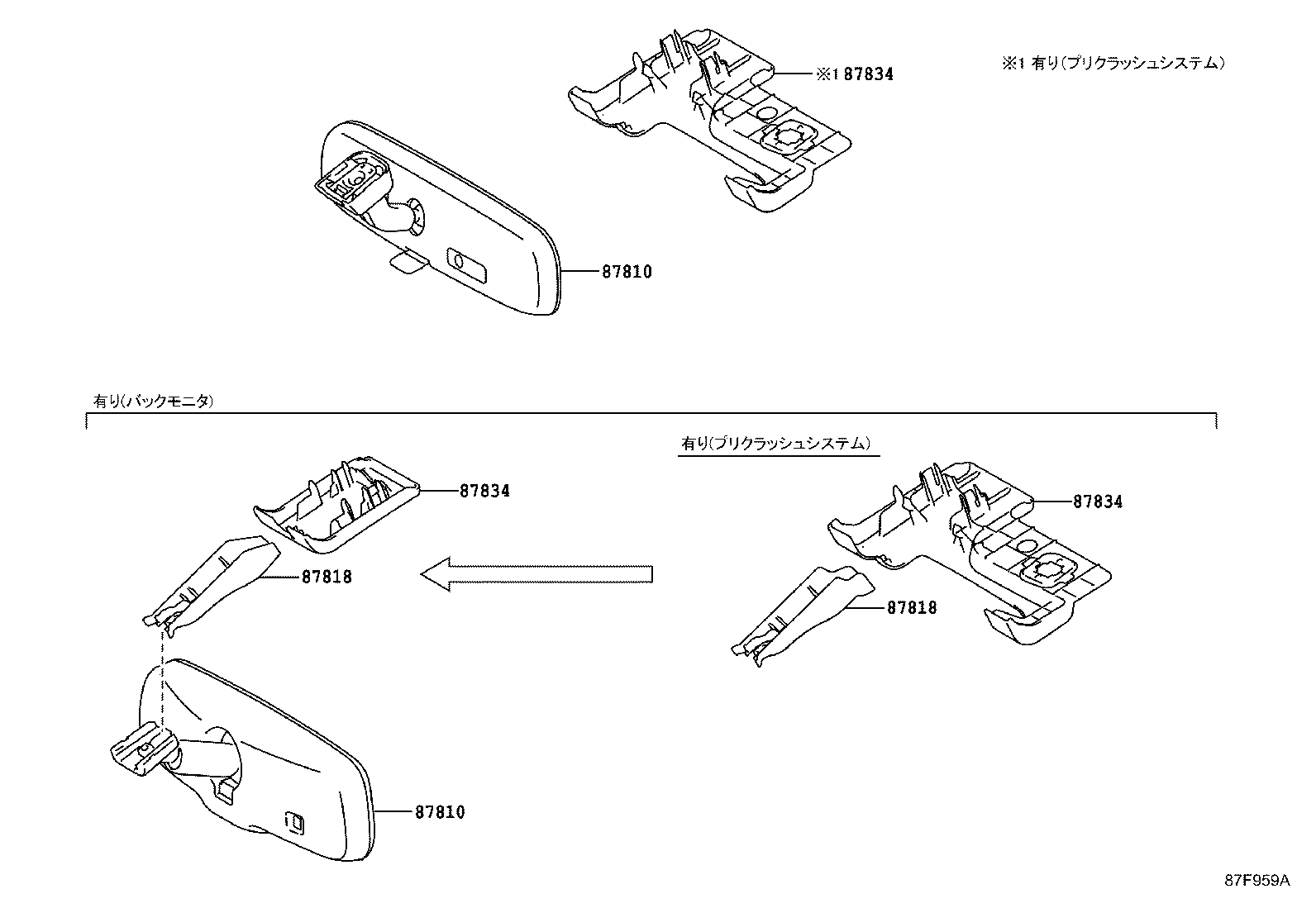

| 87810 | Mirror Assy, Inner Rear View |
| 87818 | Cover, Inner RR View Mirror |
| 87834 | Cover, Inner Rear View Mirror Stay Holder |

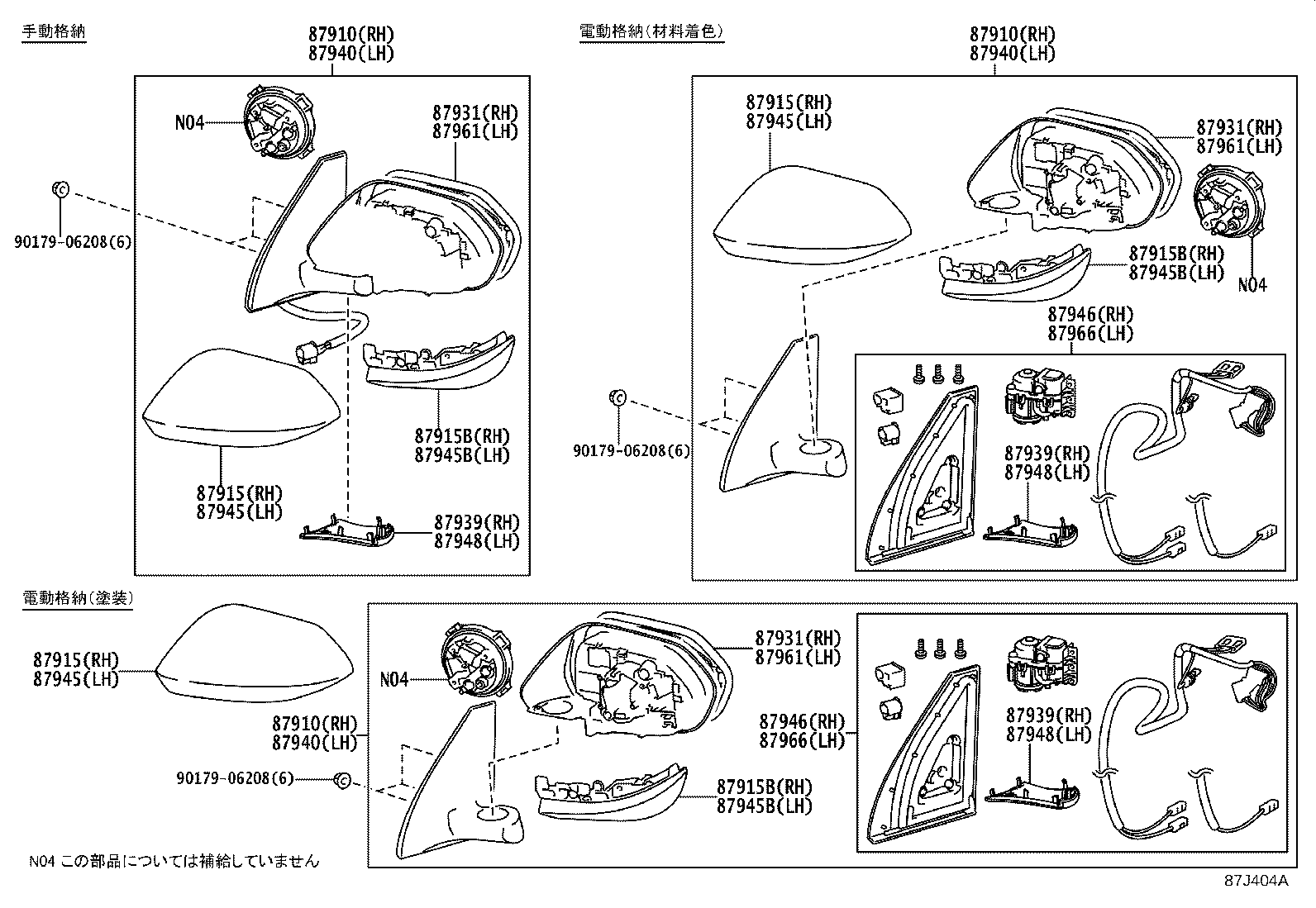

| 87910 | Mirror Assy, Outer Rear View, RH |
| 87915 | Cover, Outer Mirror, RH |
| 87915B | Cover, Outer Mirror, Lower RH |
| 87931 | Outer Mirror, RH |
| 87939 | Cover, Outer Mirror Hole, RH |
| 87940 | Mirror Assy, Outer Rear View, LH |
| 87945 | Cover, Outer Mirror, LH |
| 87945B | Cover, Outer Mirror, LH |
| 87946 | Retractor, Outer Mirror, RH |
| 87948 | Cover, Outer Mirror Hole, LH |
| 87961 | Mirror Outer, LH |
| 87966 | Retractor, Outer Mirror, LH |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
