Toyota Probox/Succeed
2014-09 → present · chassis NCP16#,NSP160,NHP160 · catalogue 173120 · Japan
Supported model
Data version 2018-12
Heating & Air Conditioning - Control & Air Duct
23 part groups · 3 illustrations
Part groups
| PNC | Description |
|---|---|

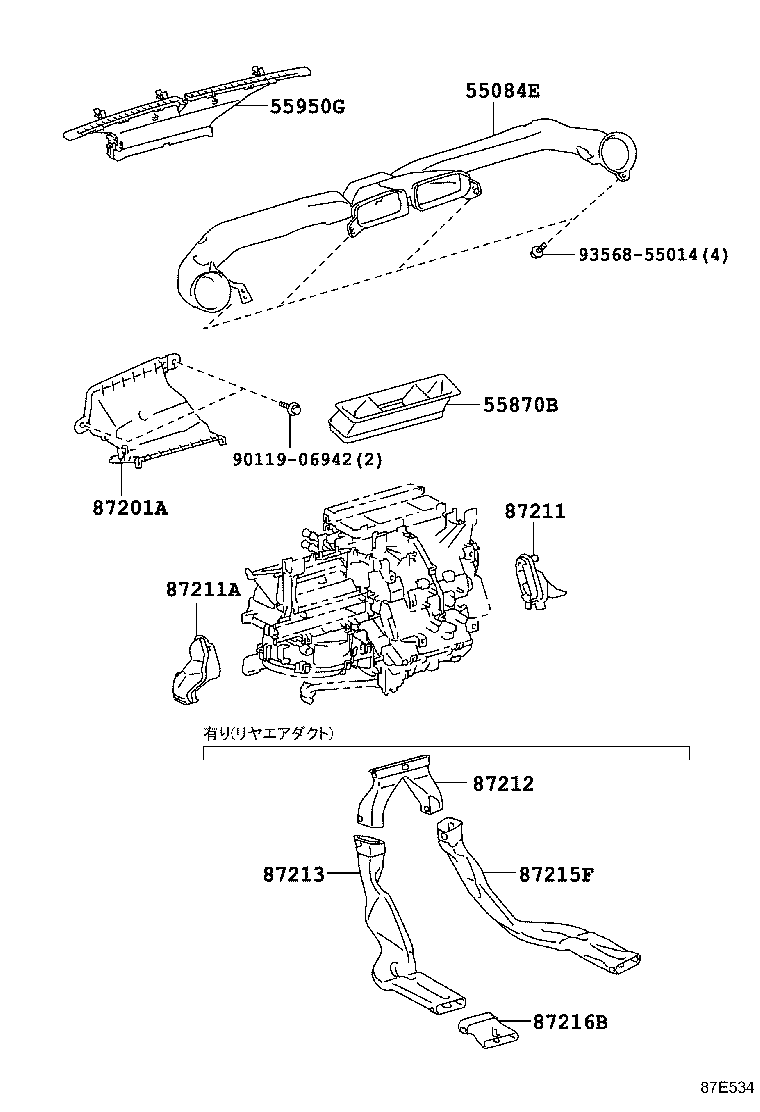

| 55084E | Duct Sub-assy, Heater TO Register, NO.1 |
| 55870B | Duct Assy, Heater TO Register |
| 55900 | Control Assy, Air Conditioner |
| 55901A | Bulb, Heater Control Sub-assy, NO.1 |
| 55901D | Control Sub-assy, Heater, NO.1 |
| 55902E | Control Sub-assy, Heater, NO.2 |
| 55902G | Bulb, Heater Control Sub-assy, NO.2 |
| 55903A | Control Sub-assy, Heater, NO.3 |
| 55903B | Bulb, Heater Control Sub-assy, NO.3 |
| 55906A | Cable Sub-assy, Defroster Damper Control |
| 55908A | Cable Sub-assy, Air Inlet Damper Control |
| 55909A | Cable Sub-assy, Airmix Damper Control |
| 55950G | Nozzle Assy, Defroster |
| 87201A | Duct Sub-assy, Air |
| 87211 | Duct, Air, NO.1 |
| 87211A | Duct, Air, NO.2 |
| 87212 | Duct, Air, Rear NO.1 |
| 87213 | Duct, Air, Rear NO.2 |
| 87215F | Duct, Air, Rear NO.3 |
| 87216B | Duct, Air, Rear NO.4 |

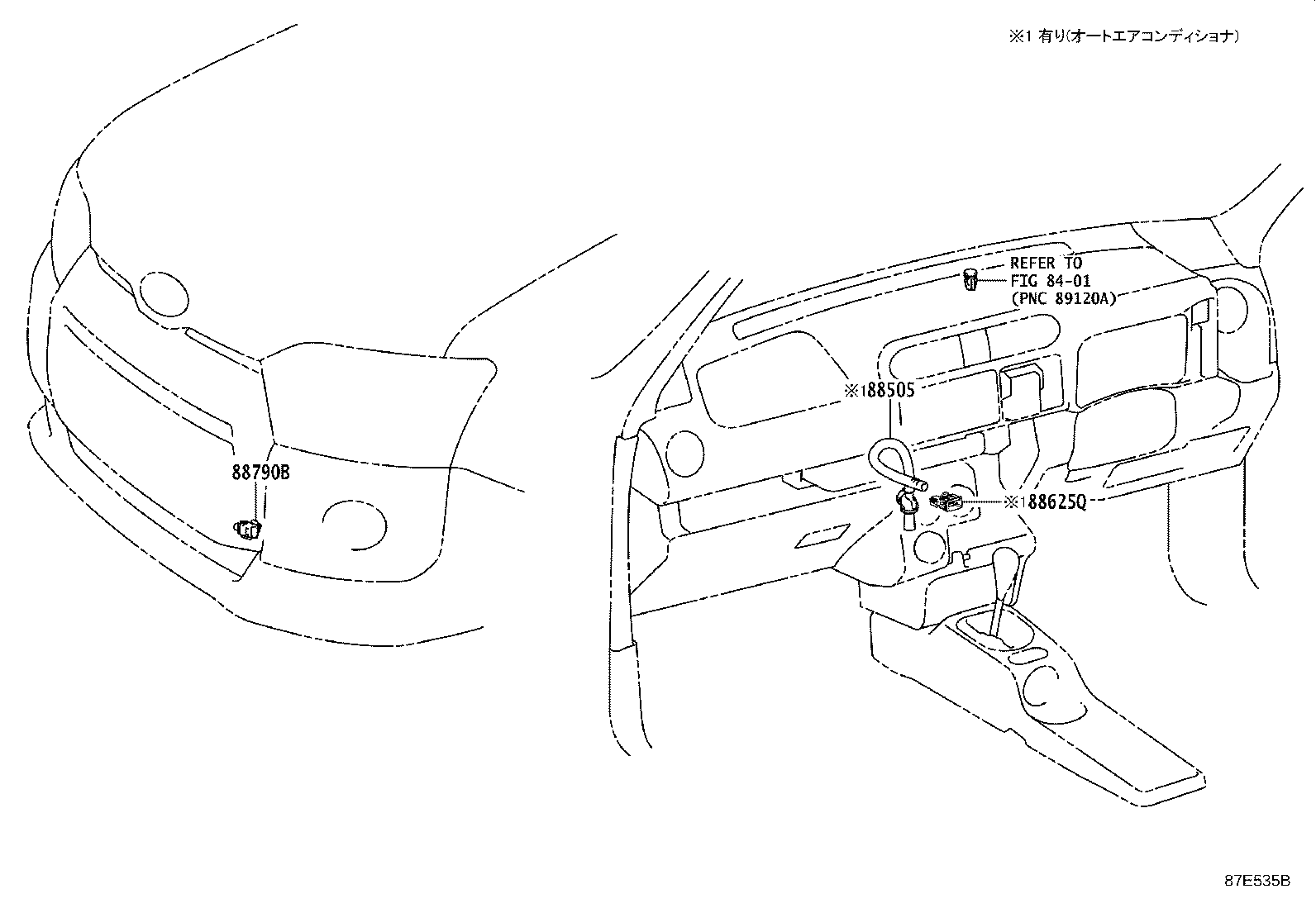

| 88505 | Duct Sub-assy,Air Conditioner |
| 88625Q | Thermistor, Cooler (ROOM TEMP. SENSOR) |
| 88790B | Thermistor Assy |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
