Toyota Probox/Succeed

2014-09 → present · chassis NCP16#,NSP160,NHP160 · catalogue 173120 · Japan

Supported model Data version 2018-12

Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Heating & Air Conditioning - Water Piping

4 part groups · 3 illustrations

Illustrations

Figure 87E554A

87E554A 2014-09 → —

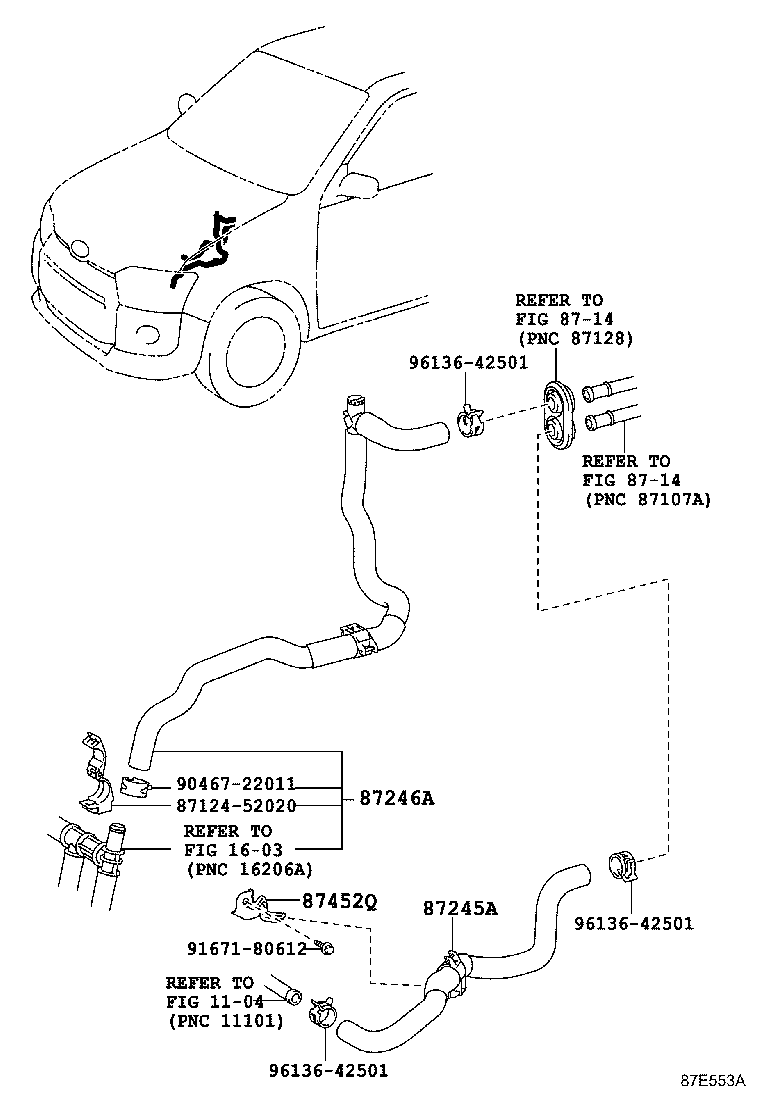

Figure 87E553A

87E553A 2014-09 → —

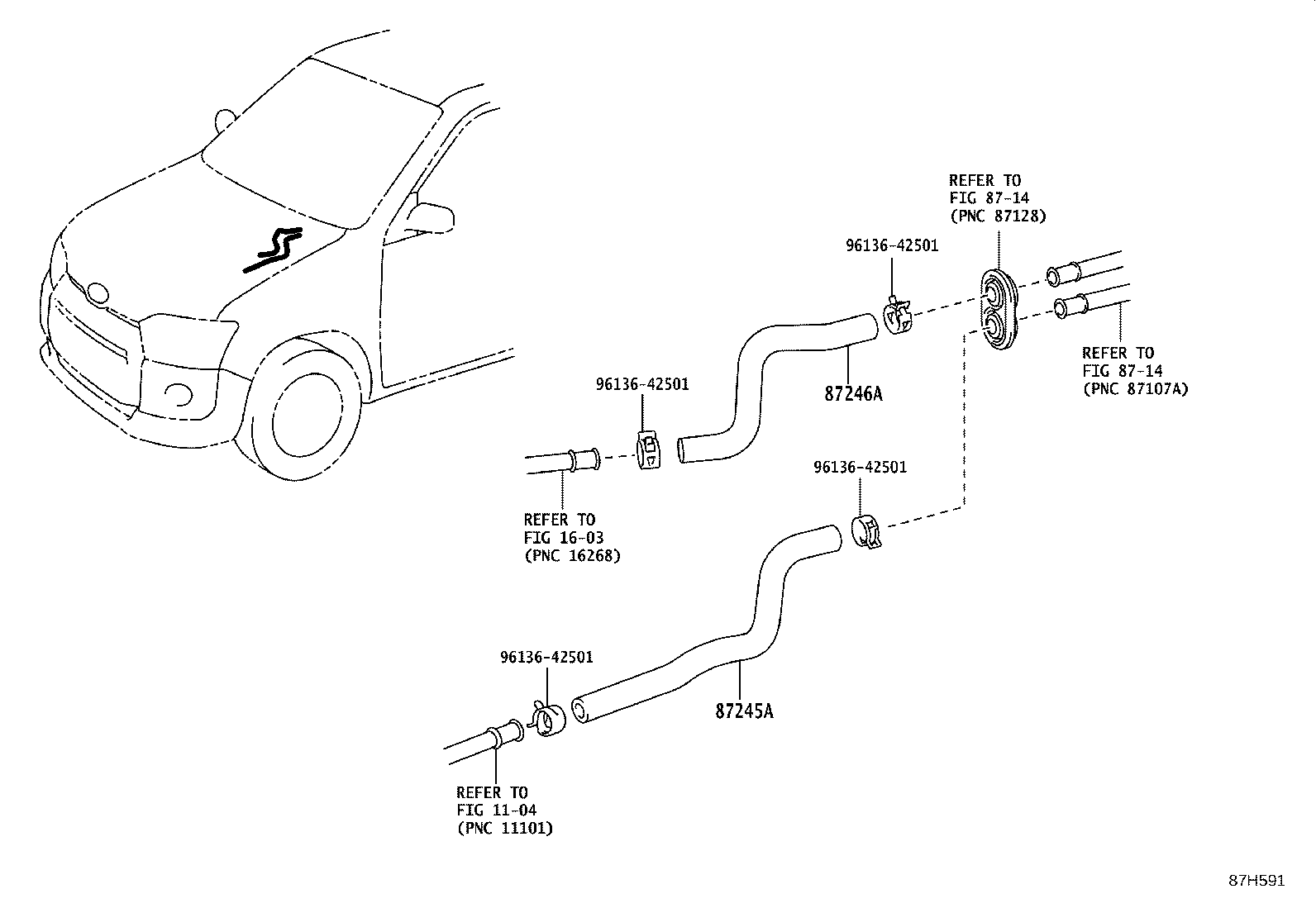

Figure 87H591

87H591 2018-12 → —

Part groups

PNC	Description
87124	Clamp, Heater
87245A	Hose, Heater Water, Inlet A
87246A	Hose, Heater Water, Outlet A
87452Q	Bracket, Heater, NO.1

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
