Heating & Air Conditioning - Cooler Piping

23 part groups · 3 illustrations

Illustrations

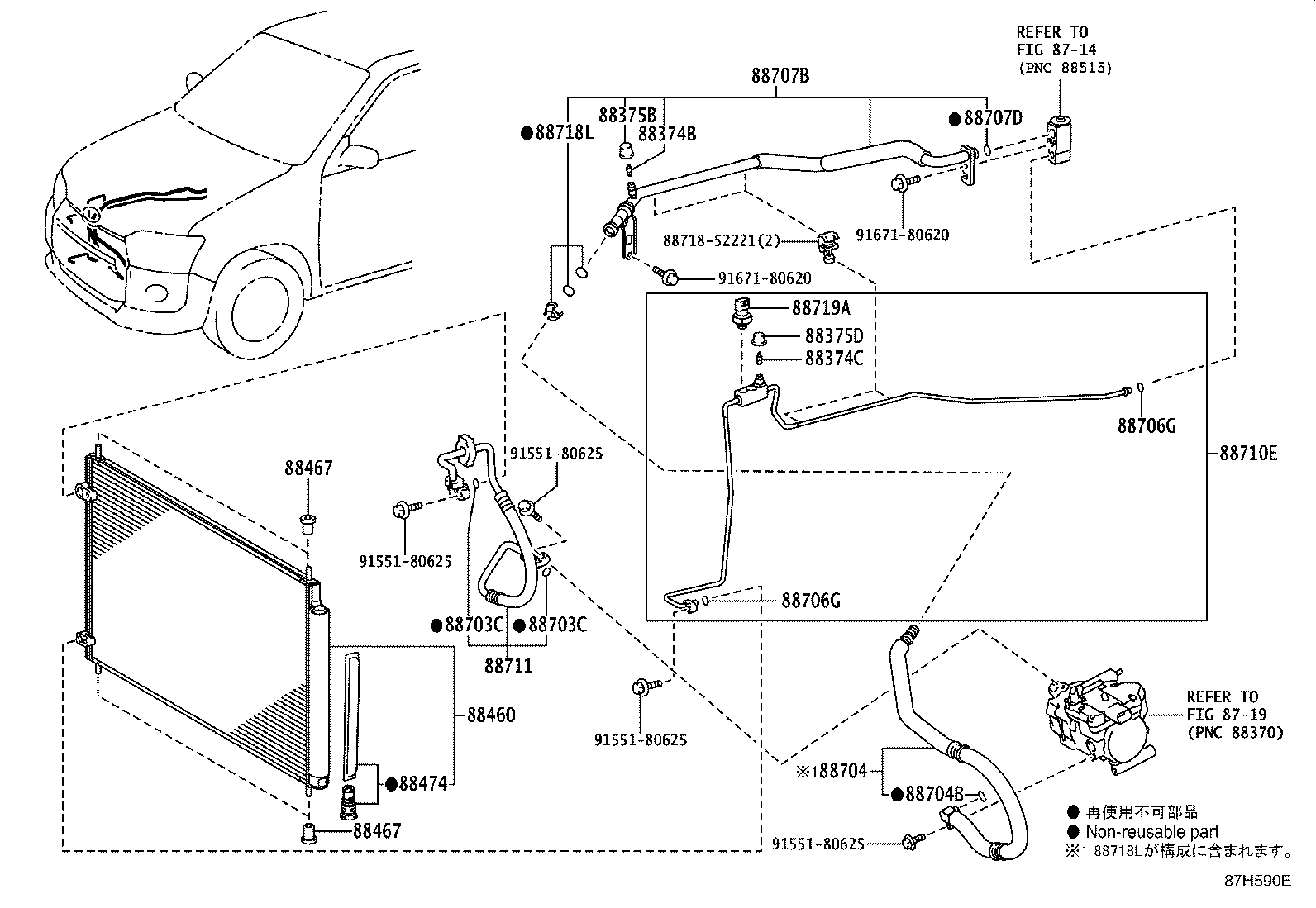

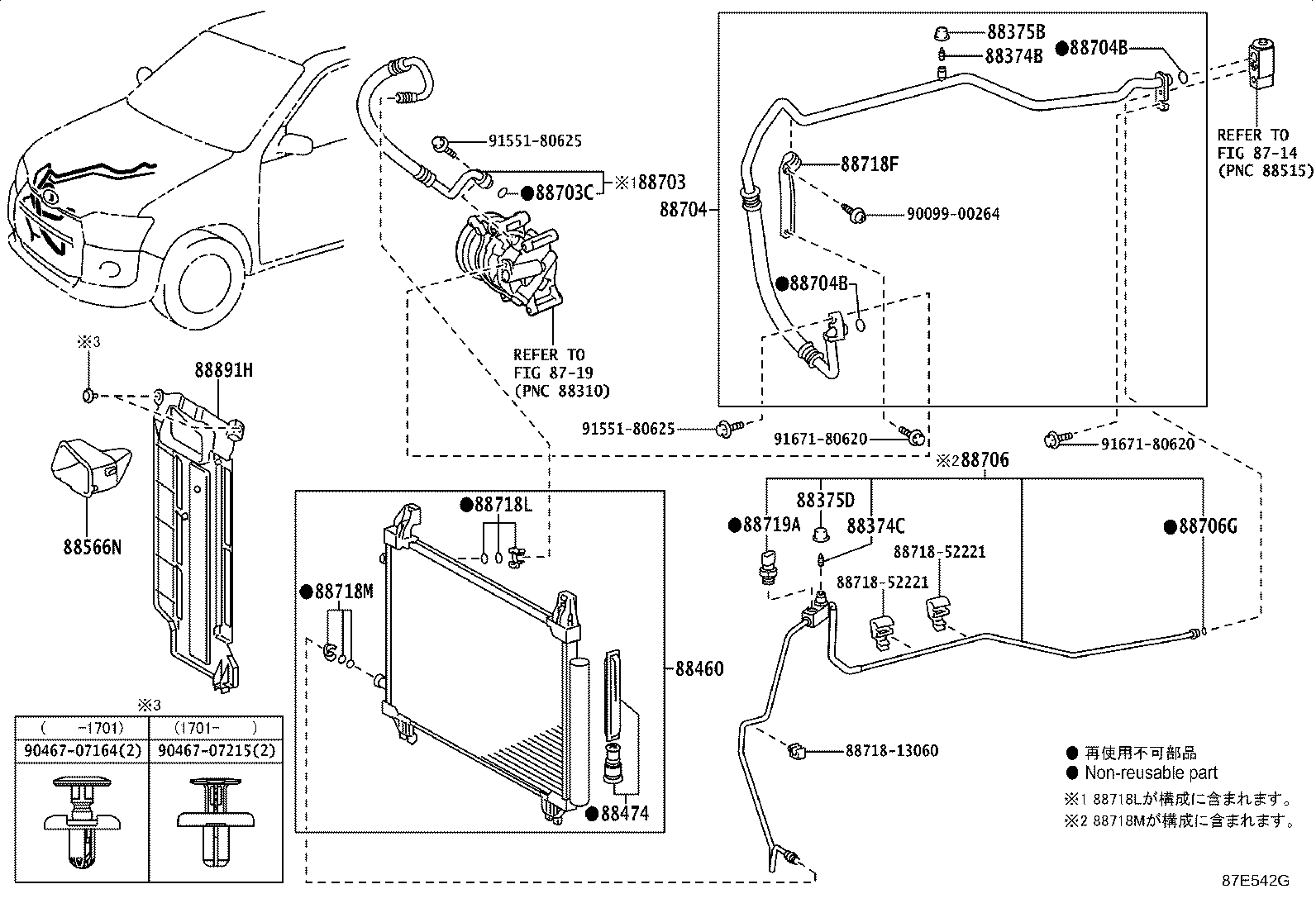

Figure 87E541G 87E541G 2014-09 → — Figure 87E542G 87E542G 2014-09 → — Figure 87H590E 87H590E 2018-12 → —

Part groups

PNCDescription
88374B Valve, Service, NO.1
88374C Valve, Service, NO.2
88375B Cap, Service Valve, NO.1
88375D Cap, Service Valve, NO.2
88460 Condenser Assy, Cooler
88467 Cushion, Cooler Condenser, NO.1
88474 Dryer, Cooler
88566N Duct, Cooler Air, NO.1
88703 Hose Sub-assy, Discharge
88703C Ring, O(FOR DISCHARGE HOSE)
88704 Hose Sub-assy, Suction
88704B Ring, O(FOR SUCTION HOSE)
88706 Pipe Sub-assy, Liquid
88706G Ring, O(FOR LIQUID TUBE)
88707B Tube Sub-assy, Suction, B
88707D Ring, O(FOR SUCTION TUBE)
88710E Tube & Accessory Assy, Air Conditioner
88711 Hose, Cooler Refrigerant Discharge, NO.1
88718F Clamp, NO.1(FOR COOLER REFRIGERANT HOSE)
88718L Clamp, Piping
88718M Clamp, Piping
88719A Sensor, Air Conditioner Pressure
88891H Cover, Cooler, NO.1
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
