Toyota Corolla

1979-03 → 1987-07 · chassis KE7#,AE70,TE7#,CE7# · catalogue 191110 · Japan

Discontinued model Data version 1988-02
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Engine Overhaul Gasket Kit

2 part groups · 6 illustrations

Illustrations

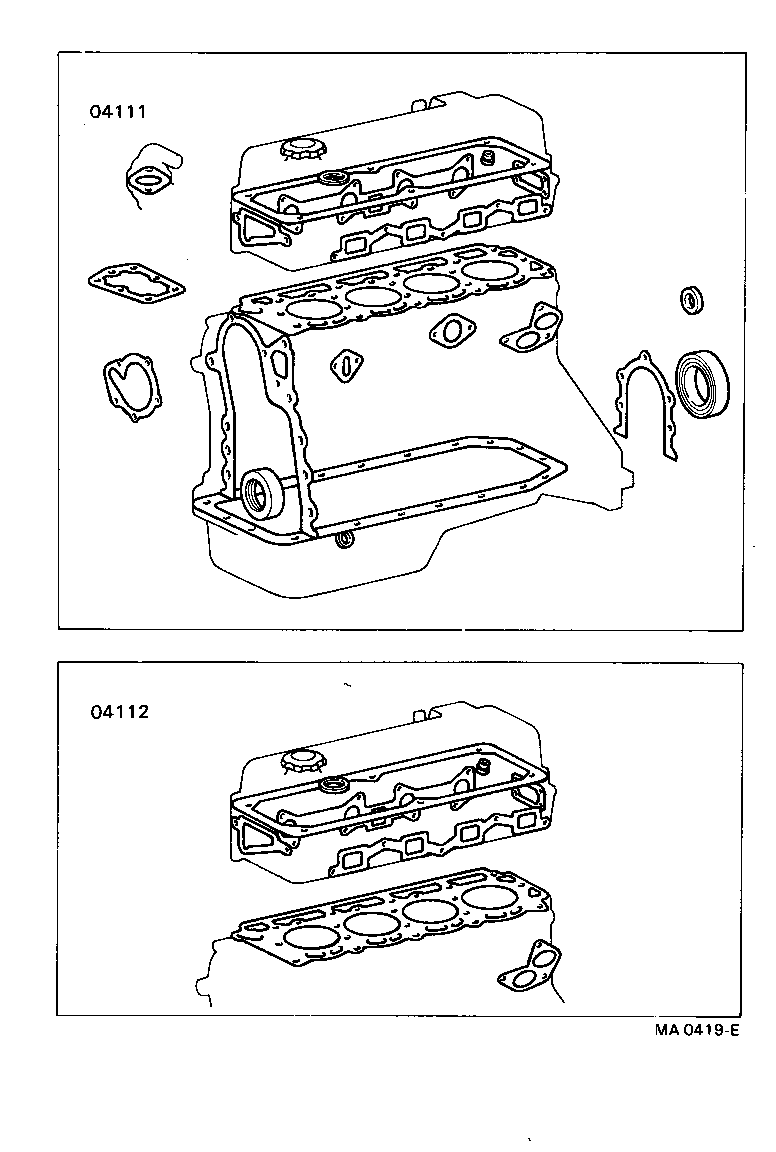

Figure 115077 115077 1979-03 → 1983-04 Figure MA5639 MA5639 1982-02 → — Figure MA4877C MA4877C 1979-03 → — Figure MA7050 MA7050 1983-08 → — Figure MA3881 MA3881 1979-03 → 1983-04 Figure MA0419E MA0419E 1979-08 → 1983-08

Part groups

PNCDescription
04111 Gasket Kit, Engine Overhaul
04112 Gasket Kit, Engine Valve Grind
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
