Toyota Corolla

1979-03 → 1987-07 · chassis KE7#,AE70,TE7#,CE7# · catalogue 191110 · Japan

Discontinued model Data version 1988-02
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Fuel Pump & Pipe

9 part groups · 3 illustrations

Illustrations

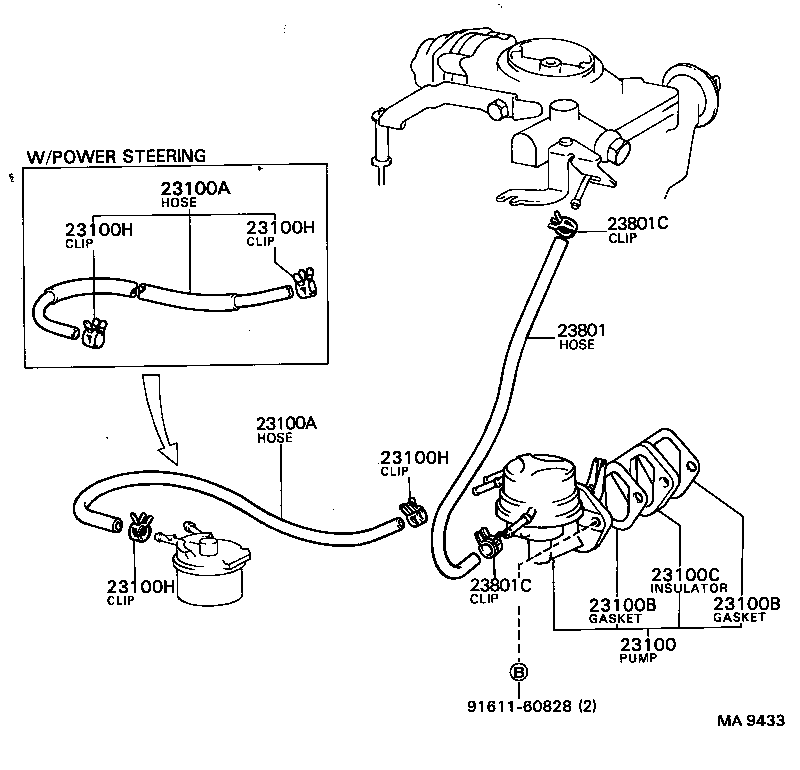

Figure MA9414 MA9414 1979-03 → 1983-08 Figure MA9421 MA9421 1979-03 → — Figure MA9433 MA9433 1979-03 → 1983-08

Part groups

PNCDescription
23100 Pump Assy, Fuel
23100A Hose, Fuel
23100B Gasket, Fuel Pump
23100C Insulator, Fuel Pump
23100H Clip(FOR FUEL HOSE)
23801 Pipe OR Hose Sub-assy, Carburetor Fuel, NO.1
23801C Clip(FOR CARBURETOR FUEL HOSE)
23801D Hose, Fuel Pipe, NO.1
23842 Clamp, Fuel Pipe(HOSE), NO.2
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
