Toyota Corolla

1979-03 → 1987-07 · chassis KE7#,AE70,TE7#,CE7# · catalogue 191110 · Japan

Discontinued model Data version 1988-02
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Suspension Crossmember & Under Cover

12 part groups · 2 illustrations

Illustrations

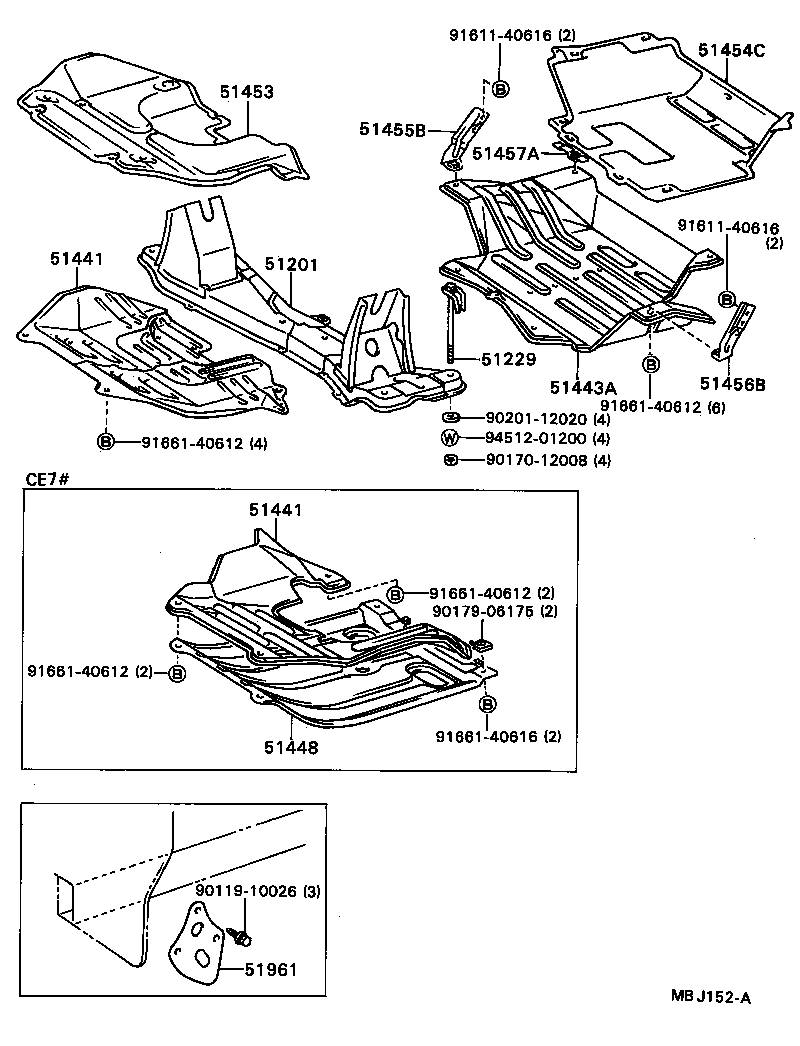

Figure MBA026E MBA026E 1979-03 → 1985-08 Figure MBJ152A MBJ152A 1985-08 → —

Part groups

PNCDescription
51201 Crossmember Sub-assy, Front Suspension
51229 Bolt, Suspension Member Set
51441 Cover, Engine Under, NO.1
51443A Cover, Engine Under, Rear
51448 Protector, Oil Pan
51453 Silencer, Engine Under Cover, Front
51454C Silencer, Engine Under Cover, Rear
51455B Bracket, Engine Under Cover, Rear RH
51456B Bracket, Engine Under Cover, Rear LH
51457A Bracket, Engine Under Cover, NO.3
51961 Hook, NO.1
51962 Hook, NO.2
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
