Toyota Corolla

1979-03 → 1987-07 · chassis KE7#,AE70,TE7#,CE7# · catalogue 191110 · Japan

Discontinued model Data version 1988-02
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Radiator Grille

7 part groups · 3 illustrations

Illustrations

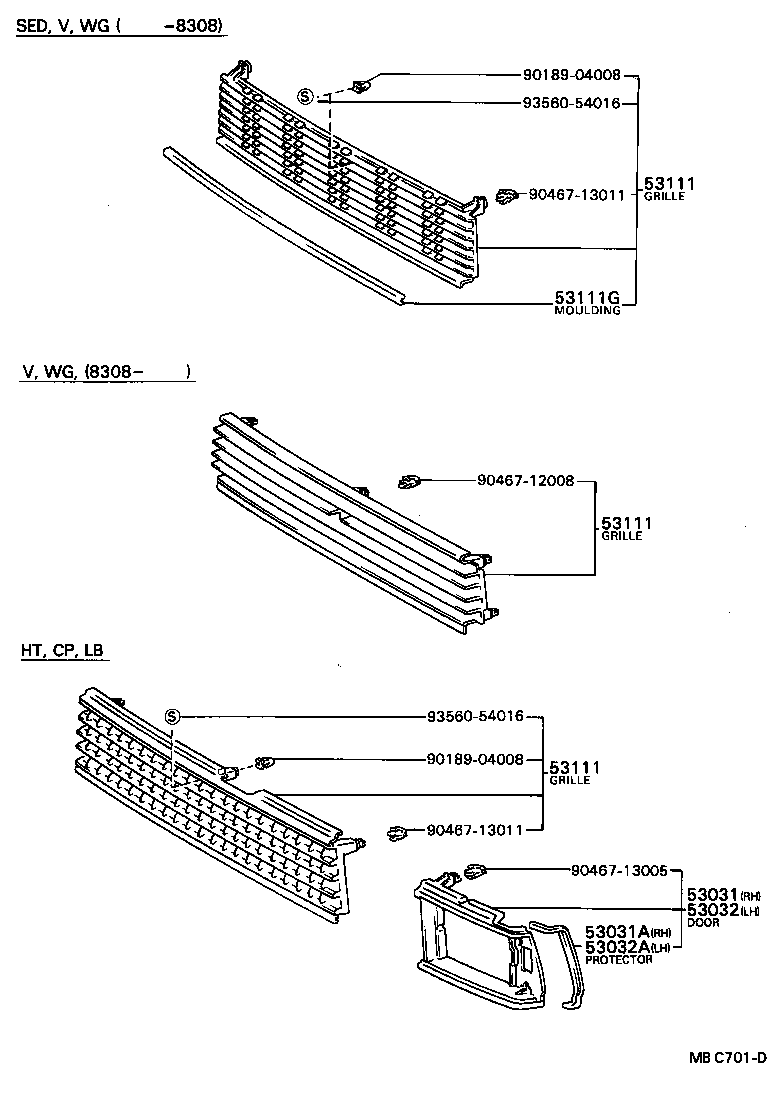

Figure MBA035C MBA035C 1979-03 → 1981-08 Figure MBC701D MBC701D 1981-08 → 1985-08 Figure MBJ153 MBJ153 1985-08 → —

Part groups

PNCDescription
53031 Housing, Headlamp, RH
53031A Protector, Headlamp Door, RH
53032 Housing, Headlamp, LH
53032A Protector, Headlamp Door, LH
53111 Grille, Radiator
53111C Moulding, Radiator Grille, Upper
53111G Moulding, Radiator Grille, Lower
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
