Toyota Corolla

1979-03 → 1987-07 · chassis KE7#,AE70,TE7#,CE7# · catalogue 191110 · Japan

Discontinued model Data version 1988-02

Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Instrument Panel & Glove Compartment

54 part groups · 6 illustrations

Illustrations

MBA043G 1979-03 → 1981-08

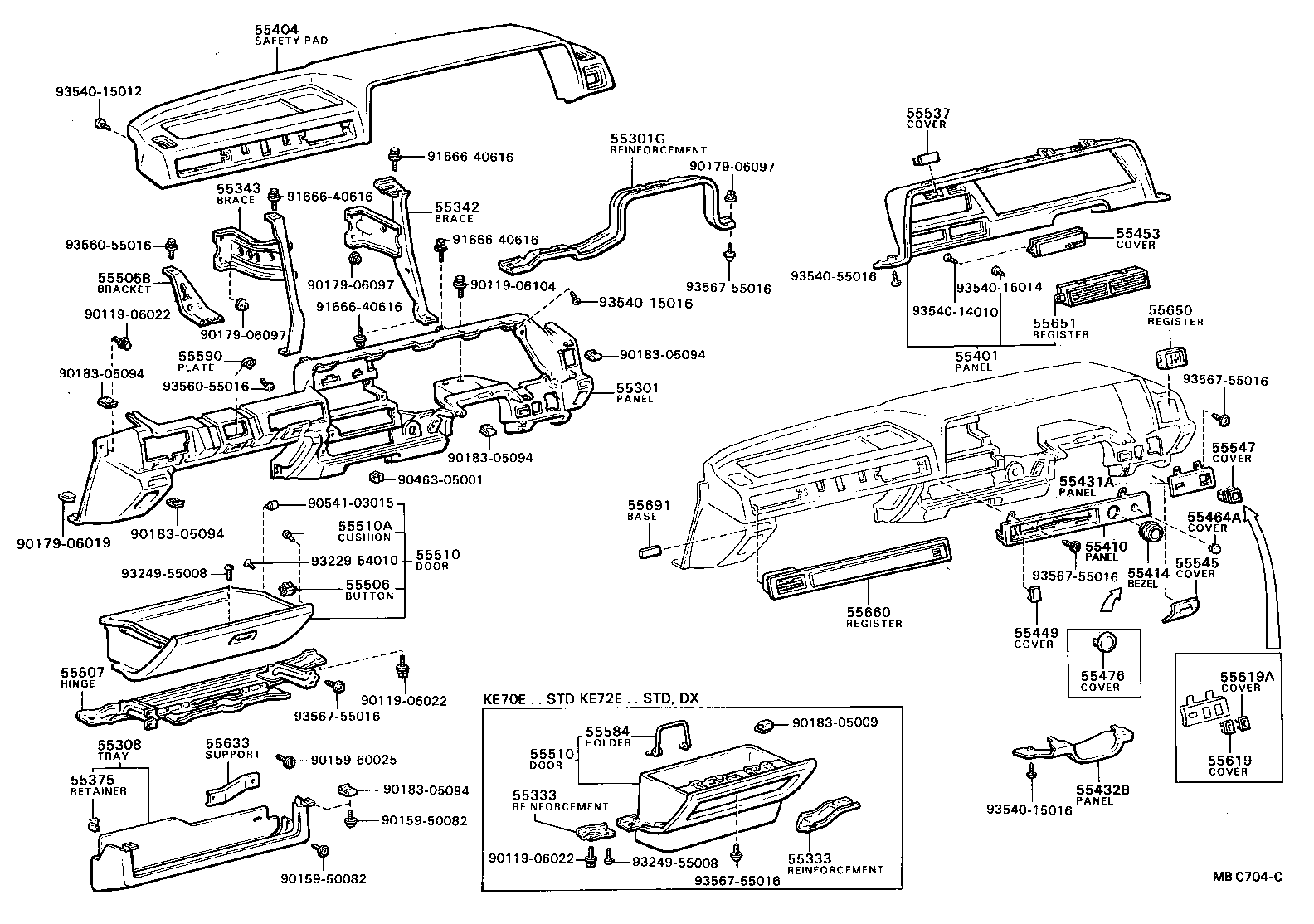

MBC704C 1981-08 → 1983-08

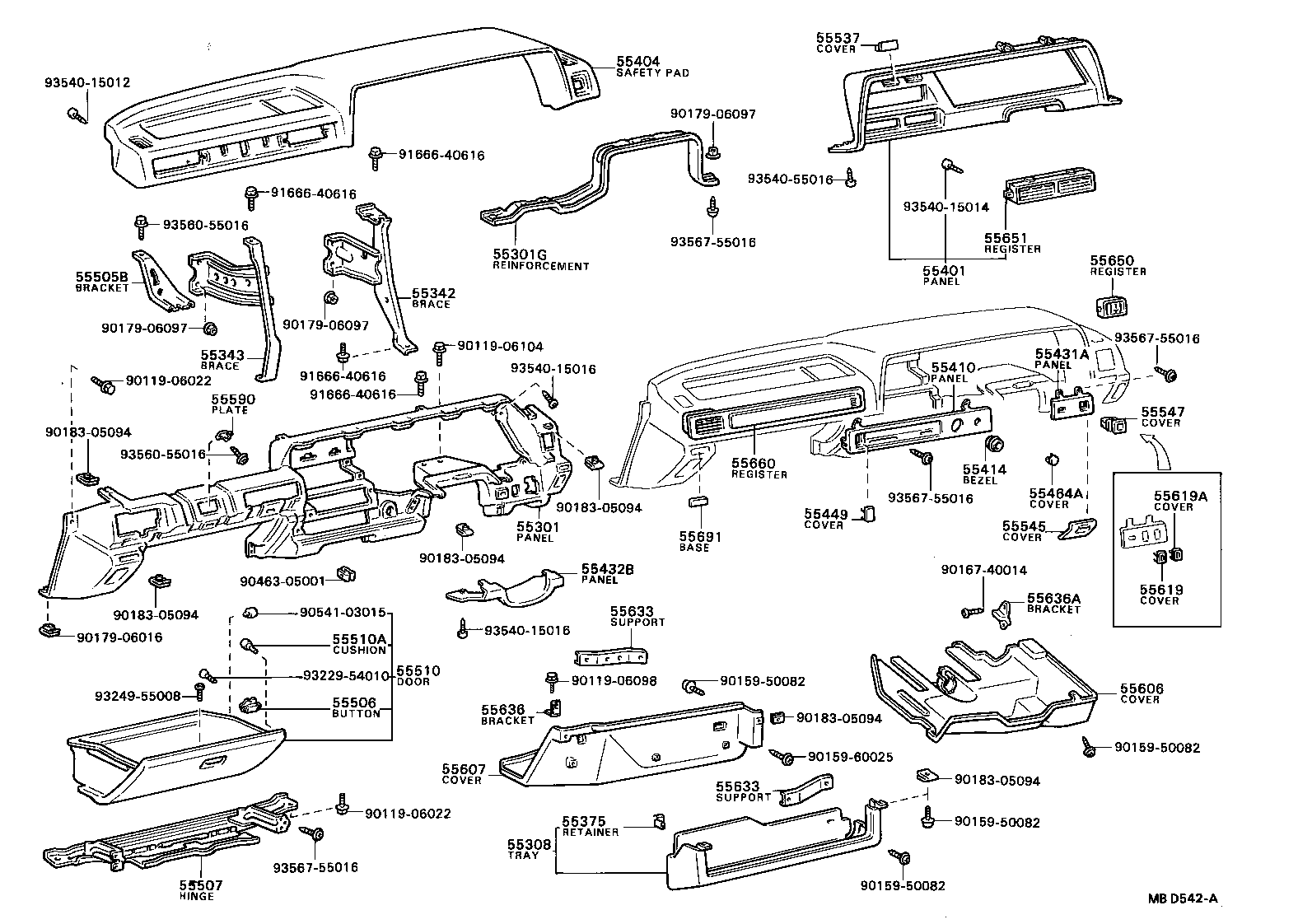

MBD542A 1982-02 → 1983-08

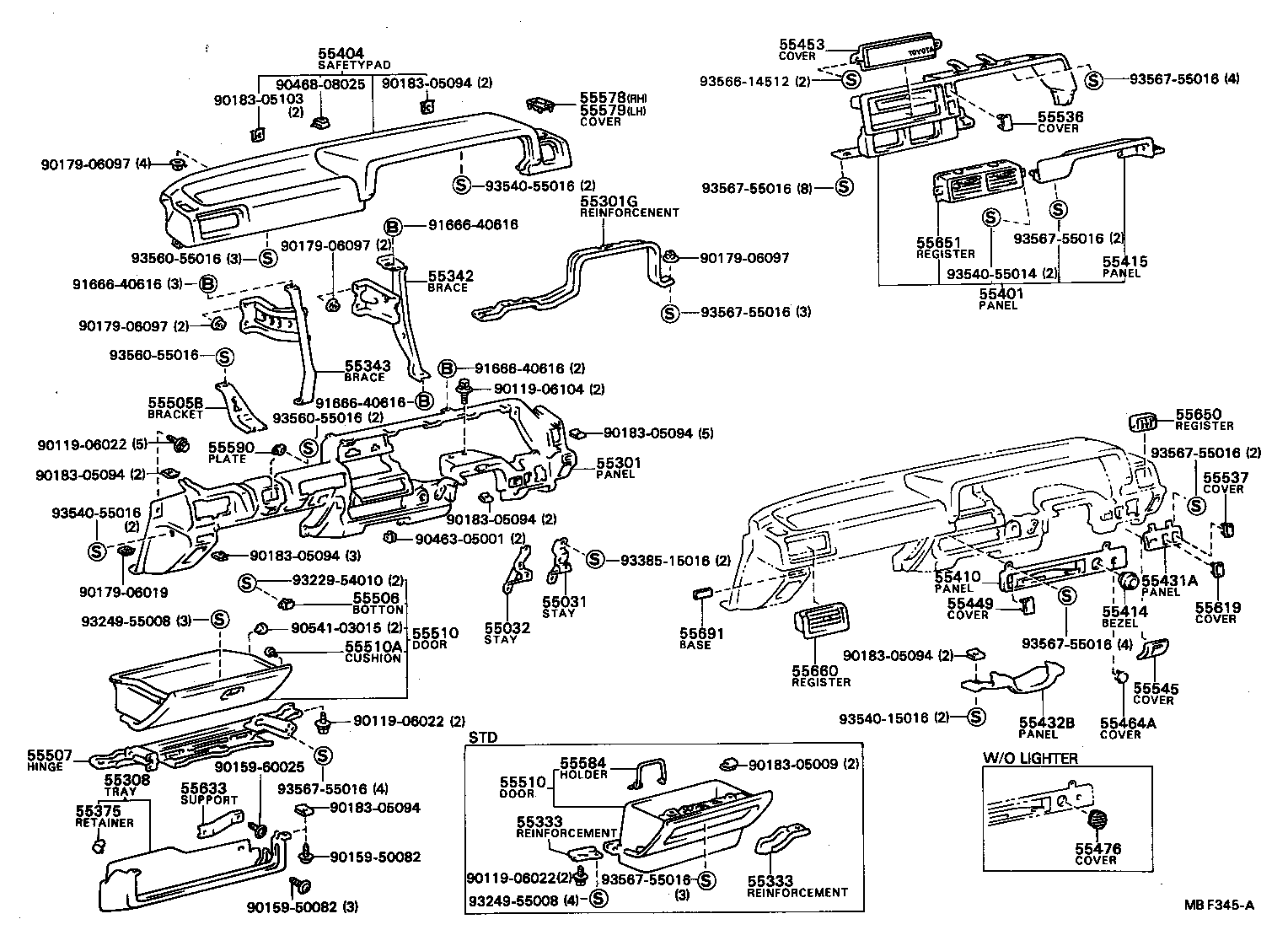

MBF345A 1983-08 → —

MBA044J 1979-03 → 1981-08

MBC705B 1981-08 → 1983-04

Part groups

PNC	Description
55031	Reinforcement, Instrument Panel, NO.1
55032	Reinforcement, Instrument Panel, NO.2
55061	Register Sub-assy, Instrument Panel, NO.1
55301	Panel Sub-assy, Instrument
55301G	Reinforcement Sub-assy, Instrument Panel
55308	Tray Sub-assy, Instrument Panel Under
55333	Reinforcement, Instrument Panel, NO.3
55338	Extension, Instrument Panel Reinforcement, NO.1
55339	Extension, Instrument Panel Reinforcement, NO.2
55341	Brace, Instrument Panel, NO.1
55342	Brace, Instrument Panel, NO.2
55343	Brace, Instrument Panel, NO.3
55375	Retainer, Instrument Panel Under Tray, Upper
55381A	Bracket, Finish Panel Mounting
55401	Panel Sub-assy, Instrument Cluster Finish
55401D	Panel, Instrument Cluster Finish, Upper
55404	Safety Pad Sub-assy, Instrument Panel, Upper
55410	Panel Assy, Instrument Cluster Finish, NO.2
55414	Bezel, Cigar Lighter Hole
55415	Panel, Instrument Cluster Finish, Center
55431A	Panel, Instrument Panel Finish
55432B	Panel, Instrument Panel Finish, Lower
55445B	Plate, Instrument Panel Finish
55449	Cover, Cooler Switch Hole
55453	Cover, Radio Tuner Opening
55464A	Cover, Choke Knob Hole
55476	Cover, Cigarette Lighter Hole
55505B	Bracket, Glove Compartment Door Lock Mounting
55506	Button Sub-assy, Glove Compartment Door Lock
55507	Hinge Sub-assy, Glove Compartment Door
55510	Door Assy, Glove Compartment
55510A	Cushion(FOR GLOVE COMPARTMENT DOOR)
55522	Retainer, Glove Compartment Male
55536	Cover, Rear Window Wiper Switch Hole
55537	Cover, Rear Window Defogger Switch Hole
55545	Cover, Fuse Box Opening
55547	Cover, Remote Control Mirror Hole
55578	Cover, Side Defroster Opening, RH
55579	Cover, Side Defroster Opening, LH
55584	Holder, Map
55590	Plate Assy, Grove Compartment Door Lock Striker
55606	Cover Sub-assy, Instrument Panel Under, NO.1
55607	Cover Sub-assy, Instrument Panel Under, NO.2
55619	Cover, Switch Hole
55619A	Cover, Switch Hole, NO.2
55633	Support, Instrument Panel Under Tray, NO.2
55636	Bracket, Instrument Panel Under Cover, NO.1
55636A	Bracket, Instrument Panel Under Cover, NO.2
55650	Register Assy, Instrument Panel, NO.1
55651	Register, Instrument Panel, NO.1
55660	Register Assy, Instrument Panel, NO.2
55670	Register Assy, Instrument Panel, NO.3
55682	Spring, Instrument Panel Register Support
55691	Base, Instrument Panel Name

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
