Toyota Corolla

1979-03 → 1987-07 · chassis KE7#,AE70,TE7#,CE7# · catalogue 191110 · Japan

Discontinued model Data version 1988-02
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Mat & Carpet

15 part groups · 6 illustrations

Illustrations

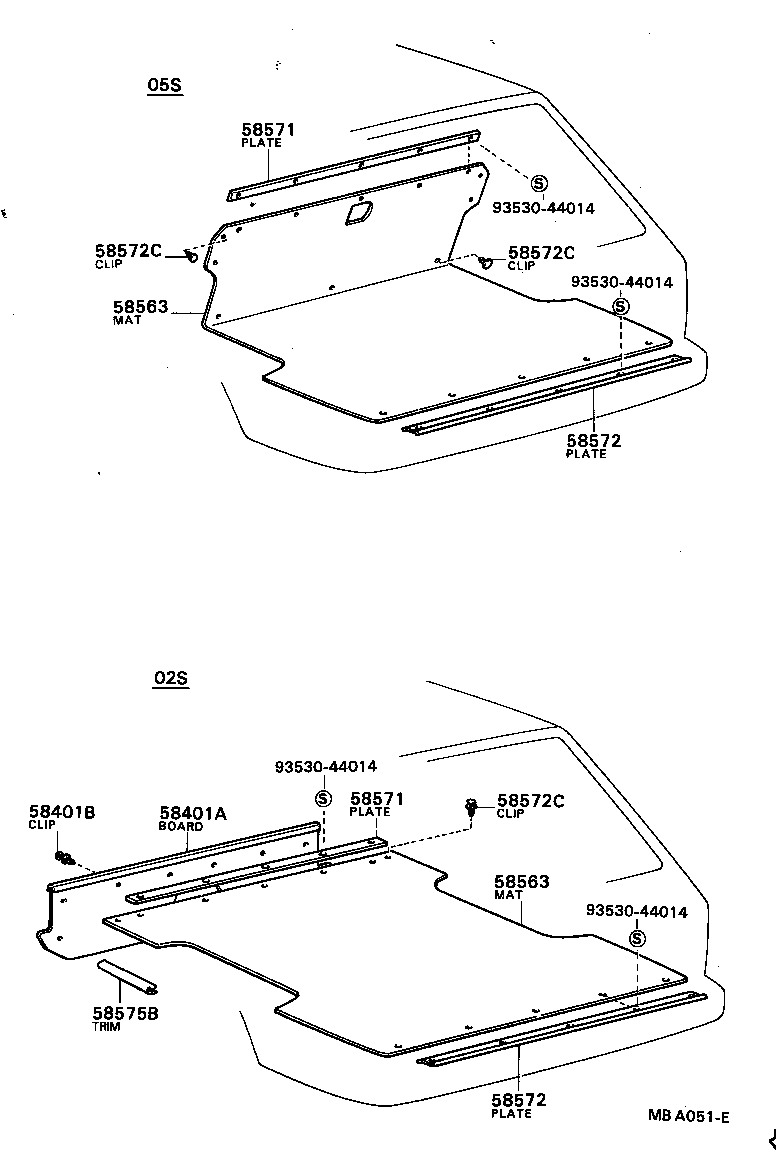

Figure MBA050 MBA050 1979-03 → — Figure MBB240B MBB240B 1979-03 → 1983-04 Figure MBA051E MBA051E 1979-08 → — Figure MBA052 MBA052 1979-03 → — Figure MBB174B MBB174B 1979-03 → 1983-04 Figure MBA053F MBA053F 1979-08 → —

Part groups

PNCDescription
58401A Board Sub-assy, Deck, NO.1
58401B Clip(FOR DECK BOARD NO.1)
58511 Mat, Floor, Front
58520 Carpet Assy, Front Floor
58551 Mat, Floor, Rear
58560 Carpet Assy, Floor, Rear
58563 Mat, Rear Floor
58564 Carpet, Rear Floor
58571 Set Plate, Rear Floor Mat, Front
58572 Set Plate, Rear Floor Mat, Rear
58572C Clip, Rear Floor Mat Set
58575B Trim, Rear Floor
58579 Set Plate, Rear Floor Carpet, NO.1
58579A Set Plate, Rear Floor Carpet, NO.2
58579C Clip, Rear Floor Carpet Set
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
