Toyota Corolla
1979-03 → 1987-07 · chassis KE7#,AE70,TE7#,CE7# · catalogue 191110 · Japan
Discontinued model
Data version 1988-02

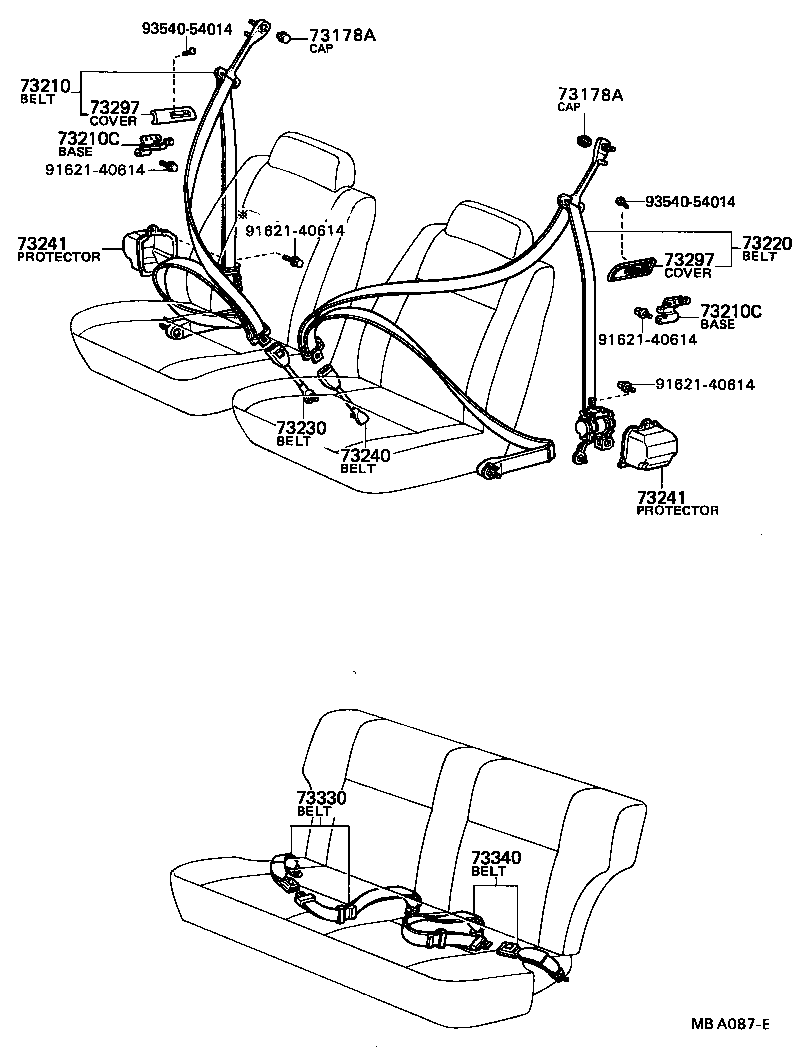

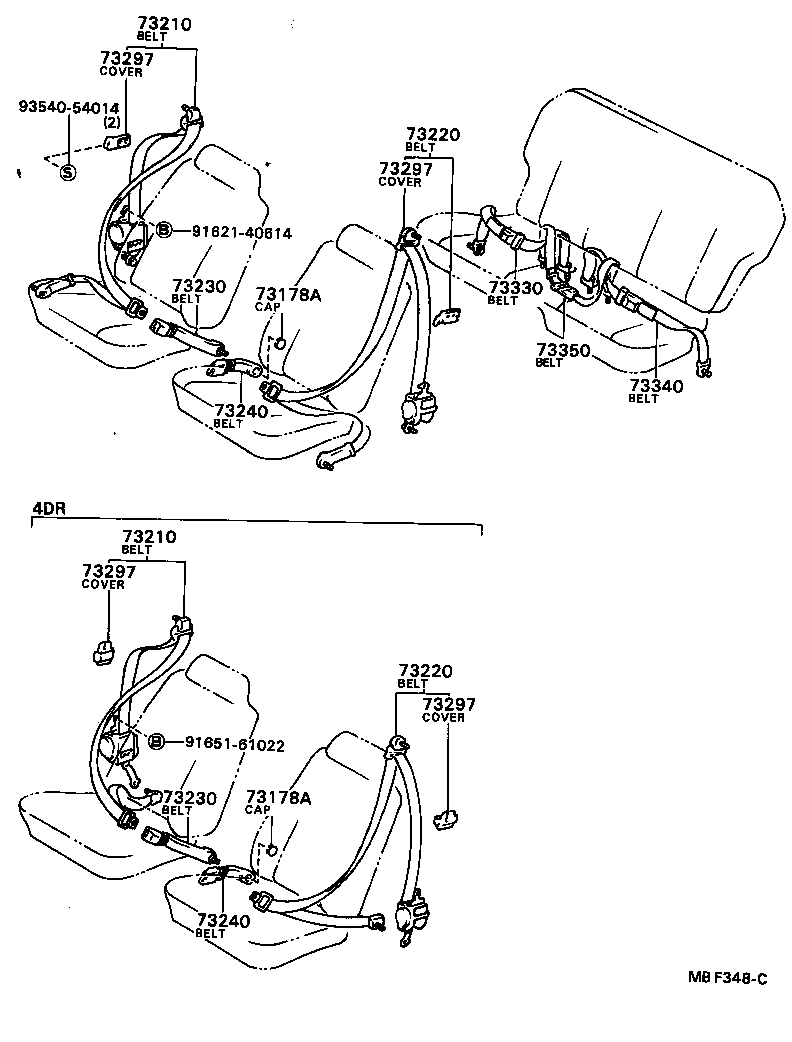

Seat Belt & Child Restraint Seat
12 part groups · 4 illustrations
Part groups
| PNC | Description |
|---|---|
| 73178A | Cap, Seat Belt Anchor Cover |
| 73210 | Belt Assy, Front Seat Outer, RH |
| 73210C | Base, Quarter Trim Upper Belt Hole Cover |
| 73210E | Clip (FOR FRONT SEAT OUTER BELT) |
| 73220 | Belt Assy, Front Seat Outer, LH |
| 73230 | Belt Assy, Front Seat Inner, RH |
| 73240 | Belt Assy, Front Seat Inner, LH |
| 73241 | Protector OR Case, Belt Retractor |
| 73297 | Cover, Quarter Trim OR Center Pillar Belt Hole |
| 73330 | Belt Assy, Rear Seat Lap Type, RH |
| 73340 | Belt Assy, Rear Seat Lap Type, LH |
| 73350 | Belt Assy, Rear Seat Lap Type, Center |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
