Toyota Corolla

1979-03 → 1987-07 · chassis KE7#,AE70,TE7#,CE7# · catalogue 191110 · Japan

Discontinued model Data version 1988-02
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Body Stripe

21 part groups · 6 illustrations

Illustrations

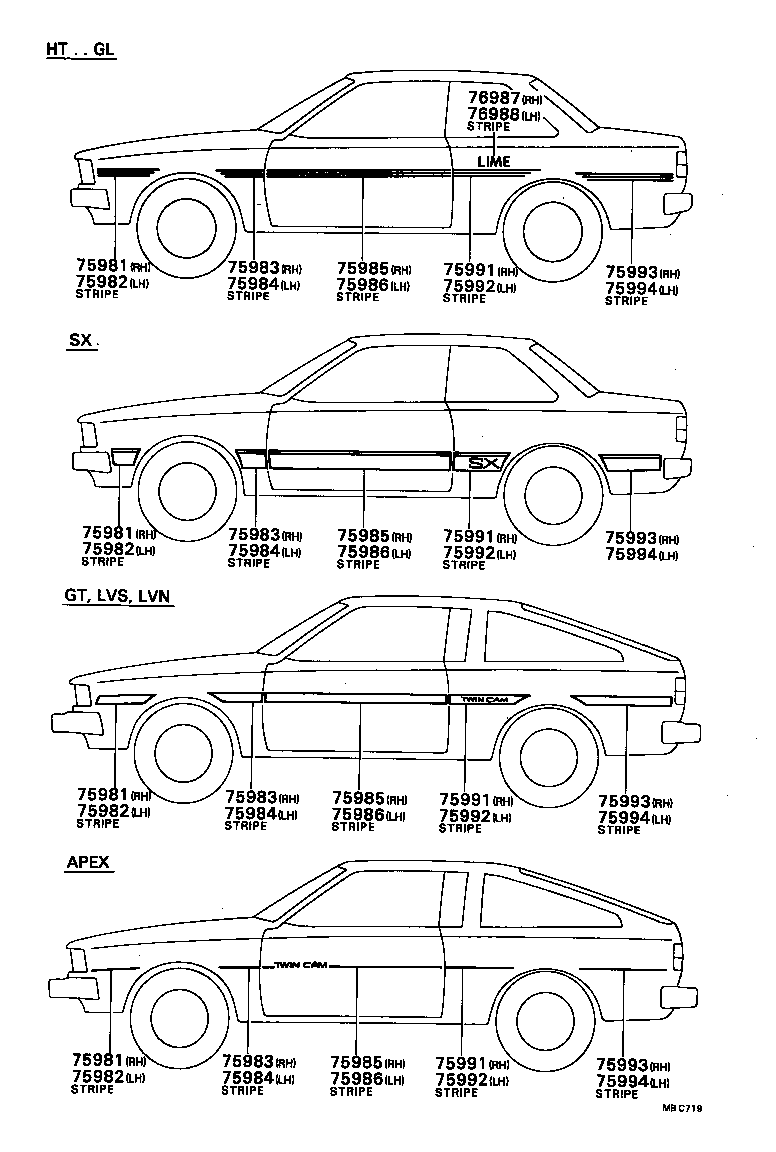

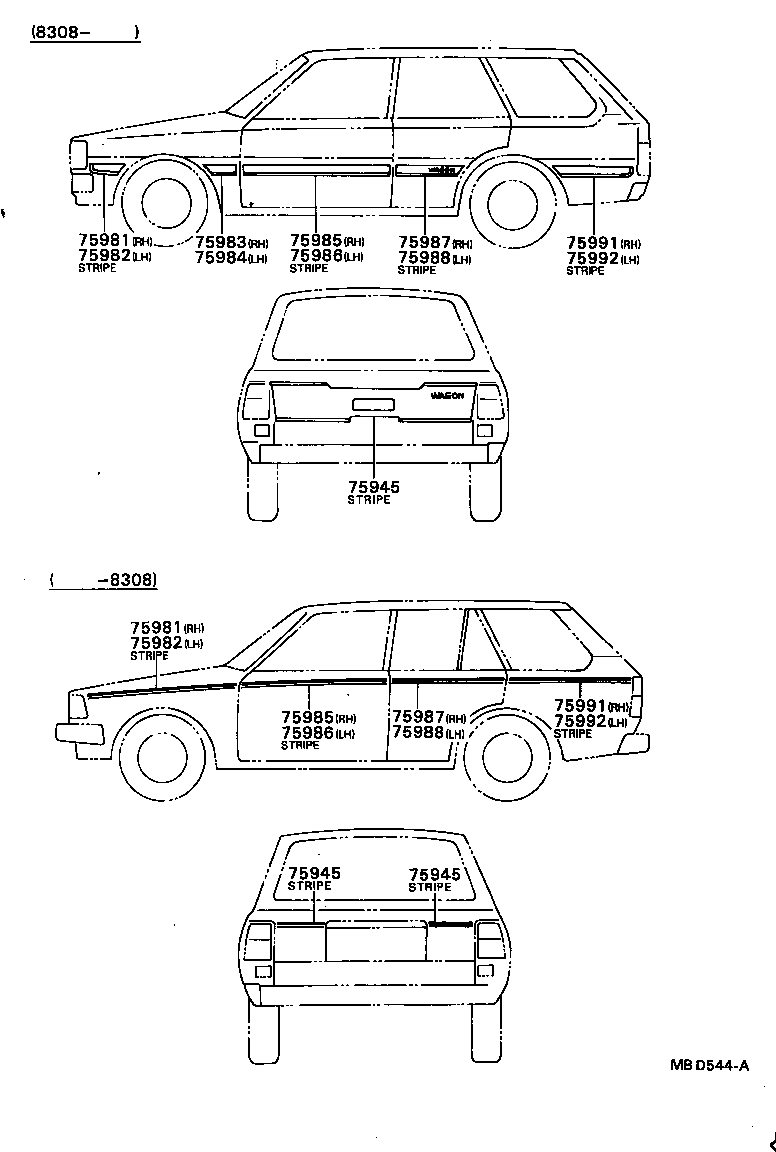

Figure MBA715C MBA715C 1979-03 → 1981-08 Figure MBC518A MBC518A 1980-05 → 1981-08 Figure MBC718 MBC718 1981-08 → 1983-04 Figure MBC719 MBC719 1981-08 → 1983-04 Figure MBD544A MBD544A 1982-05 → 1985-08 Figure MBJ157 MBJ157 1985-08 → —

Part groups

PNCDescription
75945 Stripe, Back Door
75946A Stripe, Back Door, Upper RH
75947A Stripe, Back Door, Upper LH
75948A Stripe, Back Door, Lower RH
75949A Stripe, Back Door, Lower LH
75981 Stripe, Front Fender, RH NO.1
75982 Stripe, Front Fender, LH NO.1
75983 Stripe, Front Fender, RH NO.2
75984 Stripe, Front Fender, LH NO.2
75985 Stripe, Front Door, RH
75986 Stripe, Front Door, LH
75987 Stripe, Rear Door, RH
75988 Stripe, Rear Door, LH
75991 Stripe, Quarter, RH NO.1
75992 Stripe, Quarter, LH NO.1
75993 Stripe, Quarter, RH NO.2
75994 Stripe, Quarter, LH NO.2
76983 Stripe, Front Door Mark, RH
76984 Stripe, Front Door Mark, LH
76987 Stripe, Quarter Mark, RH
76988 Stripe, Quarter Mark, LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
