Heating & Air Conditioning - Cooler Unit

19 part groups · 3 illustrations

Illustrations

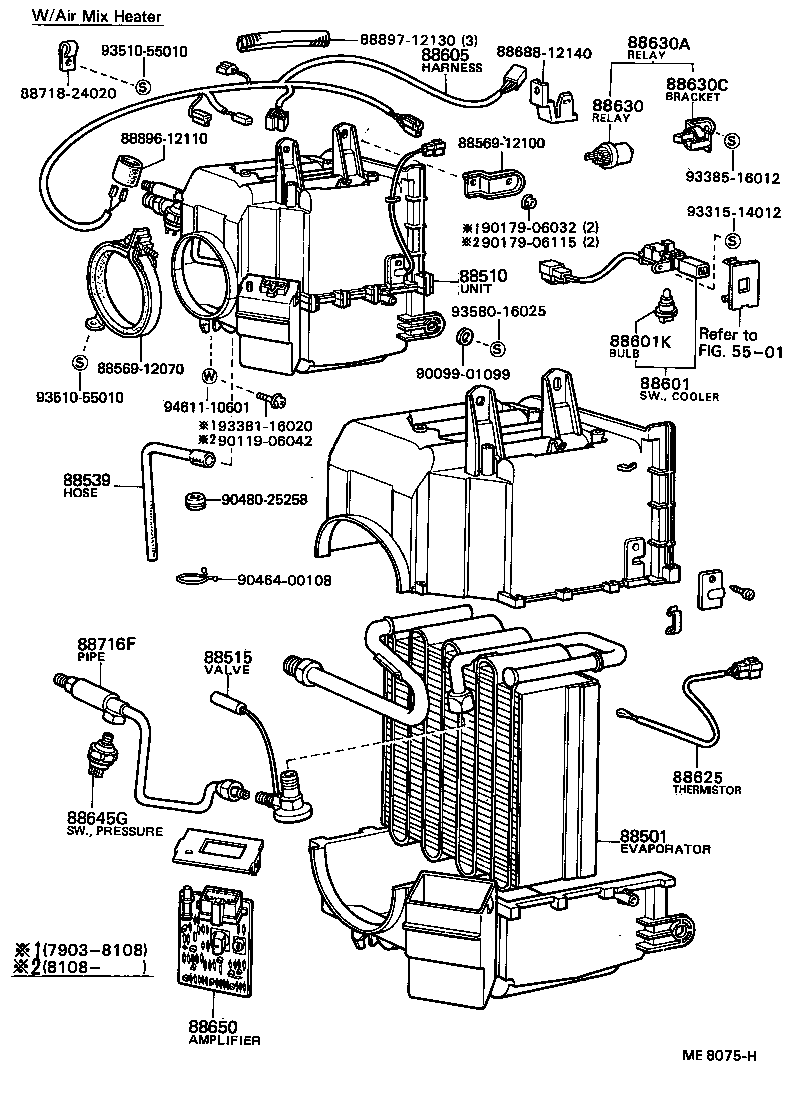

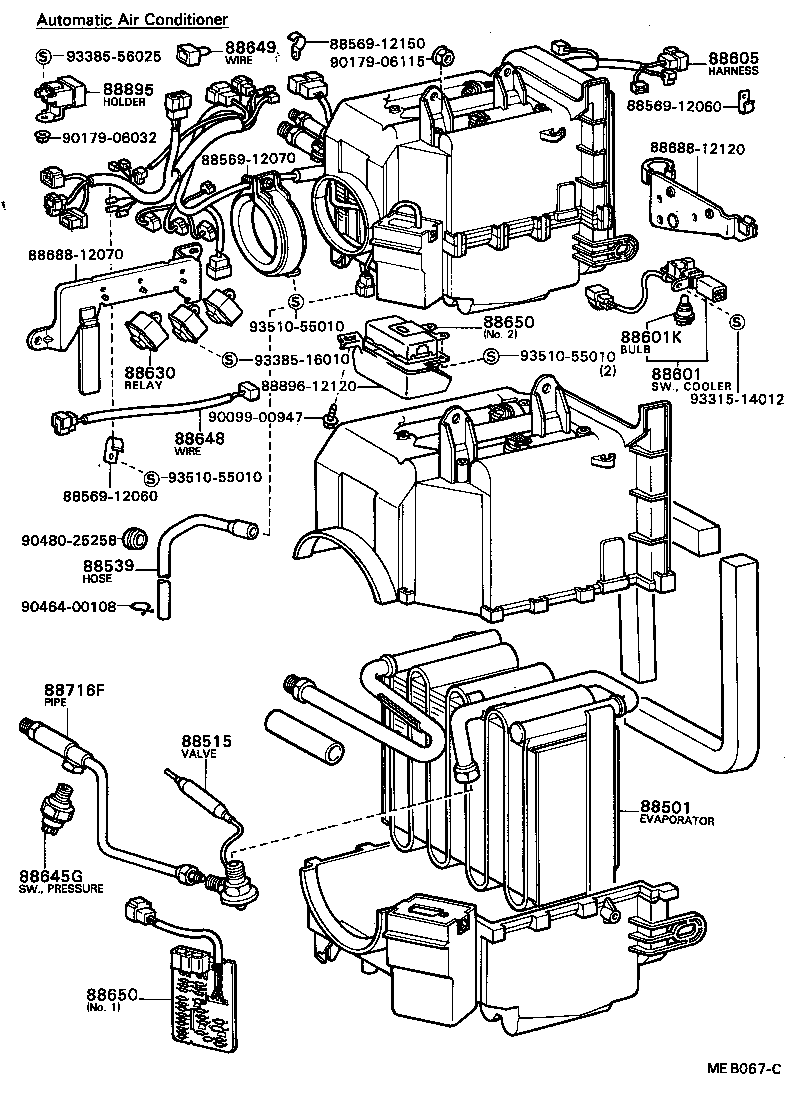

Figure ME8704I ME8704I 1979-03 → — Figure ME8075H ME8075H 1979-03 → — Figure MEB067C MEB067C 1981-08 → 1983-04

Part groups

PNCDescription
88501 Evaporator Sub-assy, Cooler, NO.1
88510 Unit Assy, Cooler
88515 Valve, Cooler Expansion
88539 Hose, Cooler Unit Drain, NO.1
88601 Switch Sub-assy, Cooler Control
88601K Bulb(FOR COOLER SWITCH)
88605 Harness Sub-assy, Cooler Wiring, NO.1
88611 Knob, Cooler Control Switch
88625 Thermistor, Cooler, NO.1
88630 Relay Assy, Cooler
88630A Relay Assy, Cooler
88630B Relay Assy, Cooler
88630C Bracket, Cooler Relay
88645G Switch, Pressure
88648 Wiring, Cooler, NO.1
88649 Wiring, Cooler, NO.2
88650 Amplifier Assy, Cooler Stabilizer
88716F Pipe, Cooler Refrigerant Liquid, F
88895 Holder, Fuse
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
