Cylinder Block

19 part groups · 2 illustrations

Illustrations

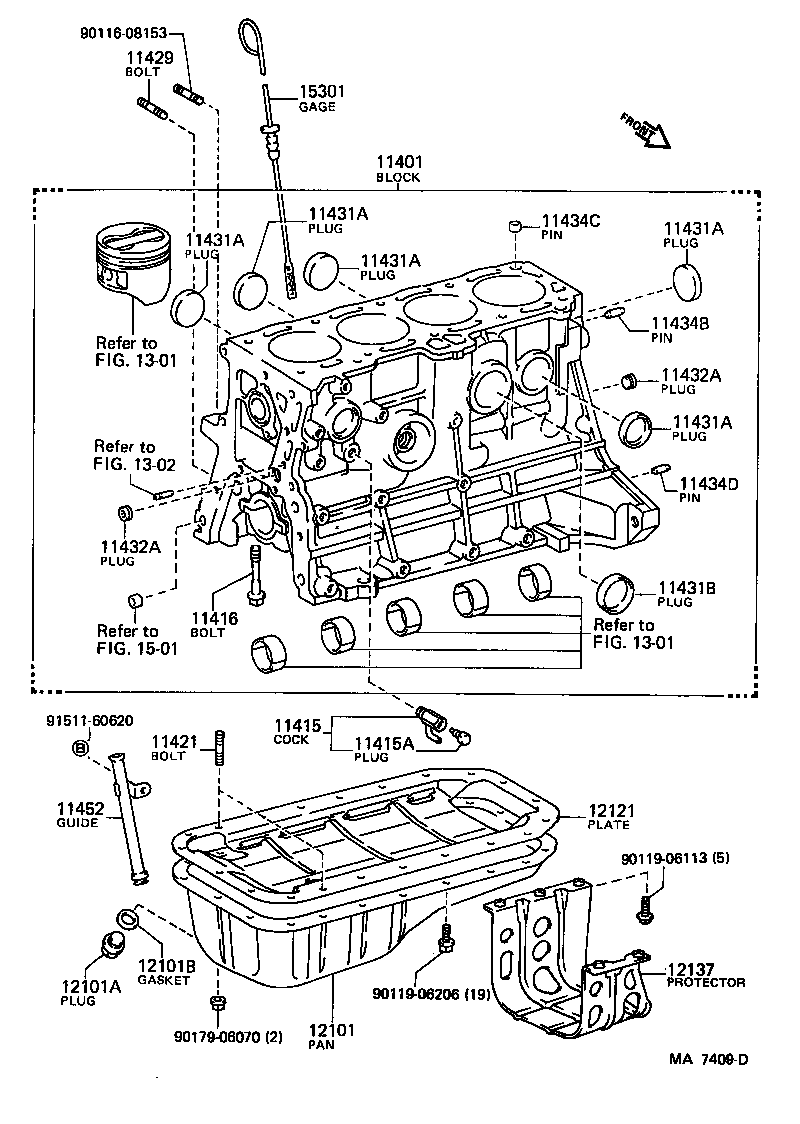

Figure MA7424D MA7424D 1984-06 → — Figure MA7409D MA7409D 1984-06 → —

Part groups

PNCDescription
11401 Block Sub-assy, Cylinder
11415 Cock Sub-assy, Water Drain(FOR CYLINDER BLOCK)
11415A Plug, Water Drain Cock(FOR CYLINDER BLOCK)
11416 Bolt(FOR CRANKSHAFT BEARING CAP SET)
11421 Bolt, Stud(FOR OIL PAN)
11429 Bolt, Stud(FOR ALTERNATOR BRACKET)
11431A Plug, Tight, NO.1(FOR CYLINDER BLOCK)
11431B Plug, Tight, NO.2(FOR CYLINDER BLOCK)
11432A Plug, W/Head Taper Screw, NO.1
11434B Pin, Straight(FOR CLUTCH HOUSING SET)
11434C Pin, Straight (FOR CYLINDER HEAD SET)
11434D Pin, Straight(FOR ENGINE REAR OIL SEAL)
11452 Guide, Oil Level Gage
12101 Pan Sub-assy, Oil
12101A Plug(FOR OIL PAN DRAIN)
12101B Gasket(FOR OIL PAN DRAIN PLUG)
12121 Plate, Oil Pan Baffle, NO.1
12137 Protector, Oil Pan
15301 Gage Sub-assy, Oil Level
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
