Toyota MR2

1984-06 → 1989-12 · chassis AW1# · catalogue 211110 · Japan

Discontinued model Data version 1990-06
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Vacuum Piping

21 part groups · 5 illustrations

Illustrations

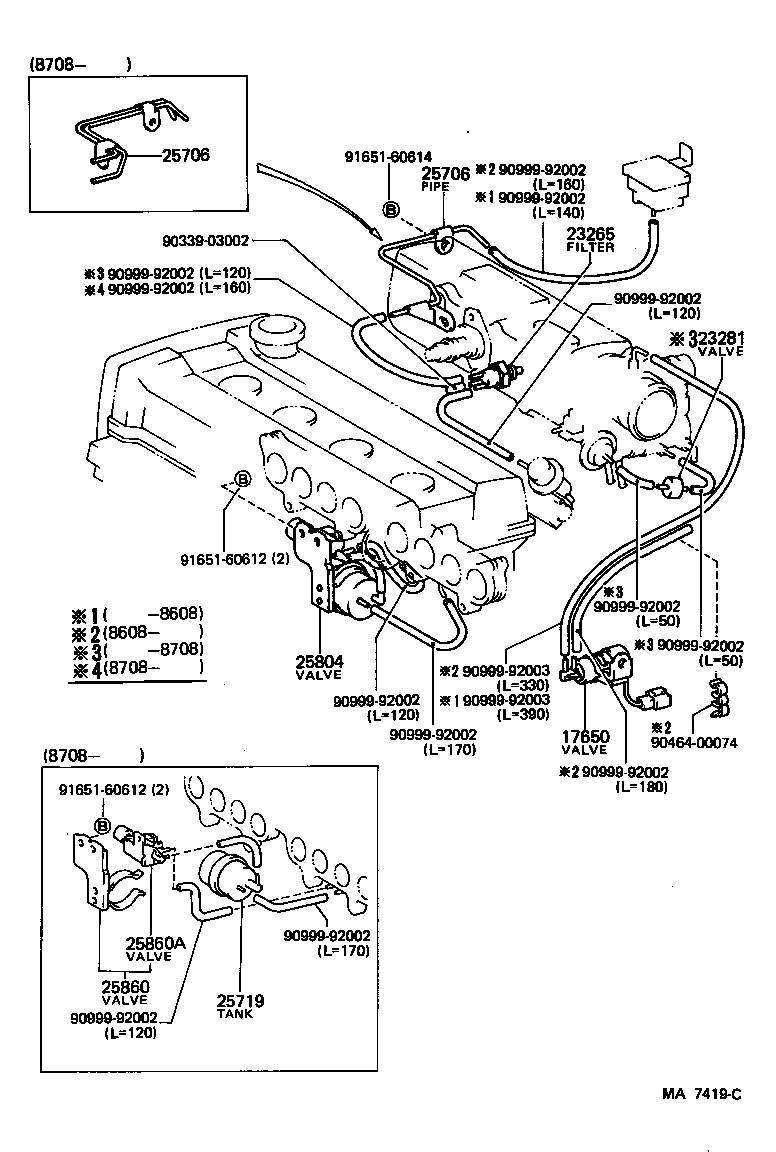

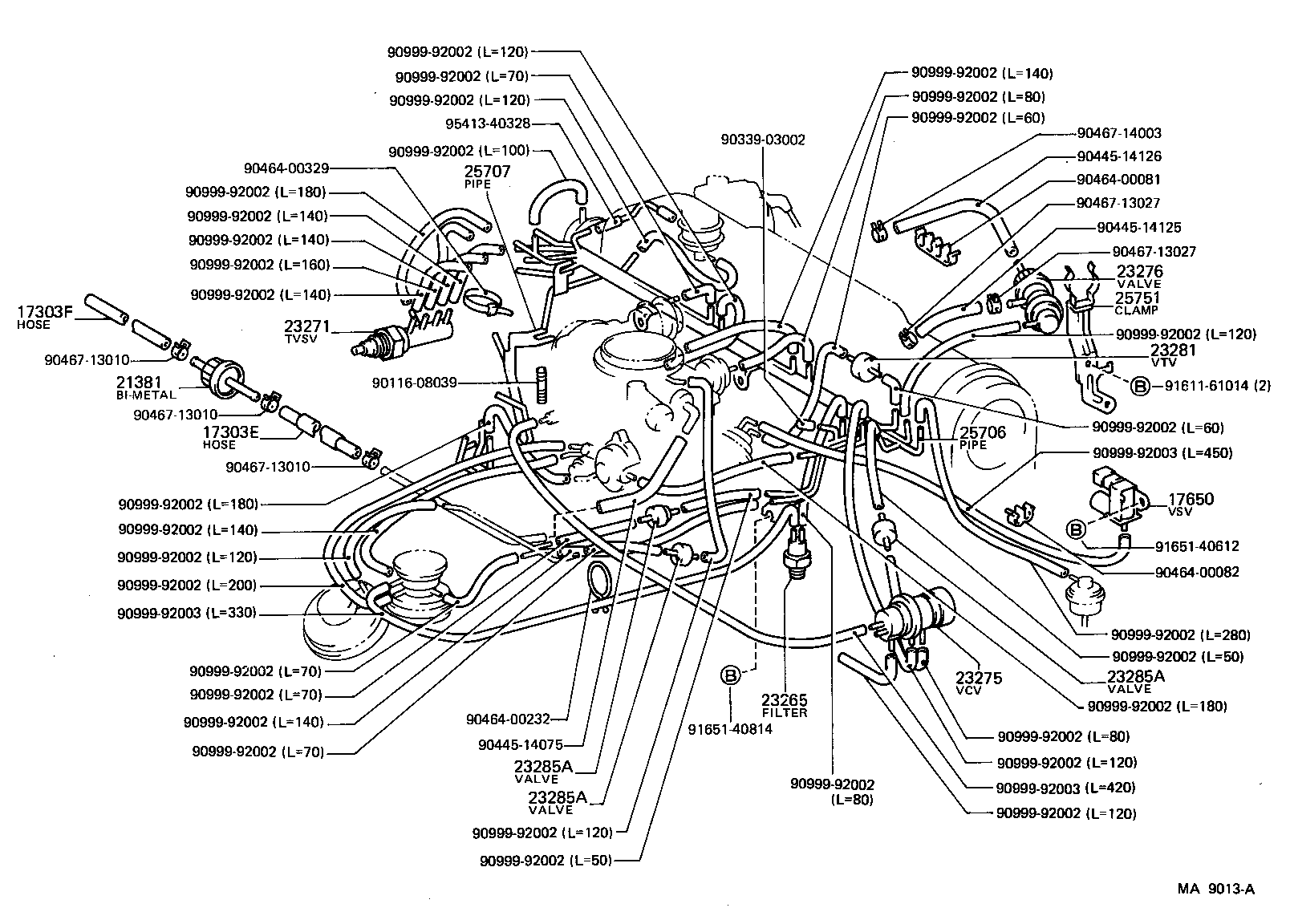

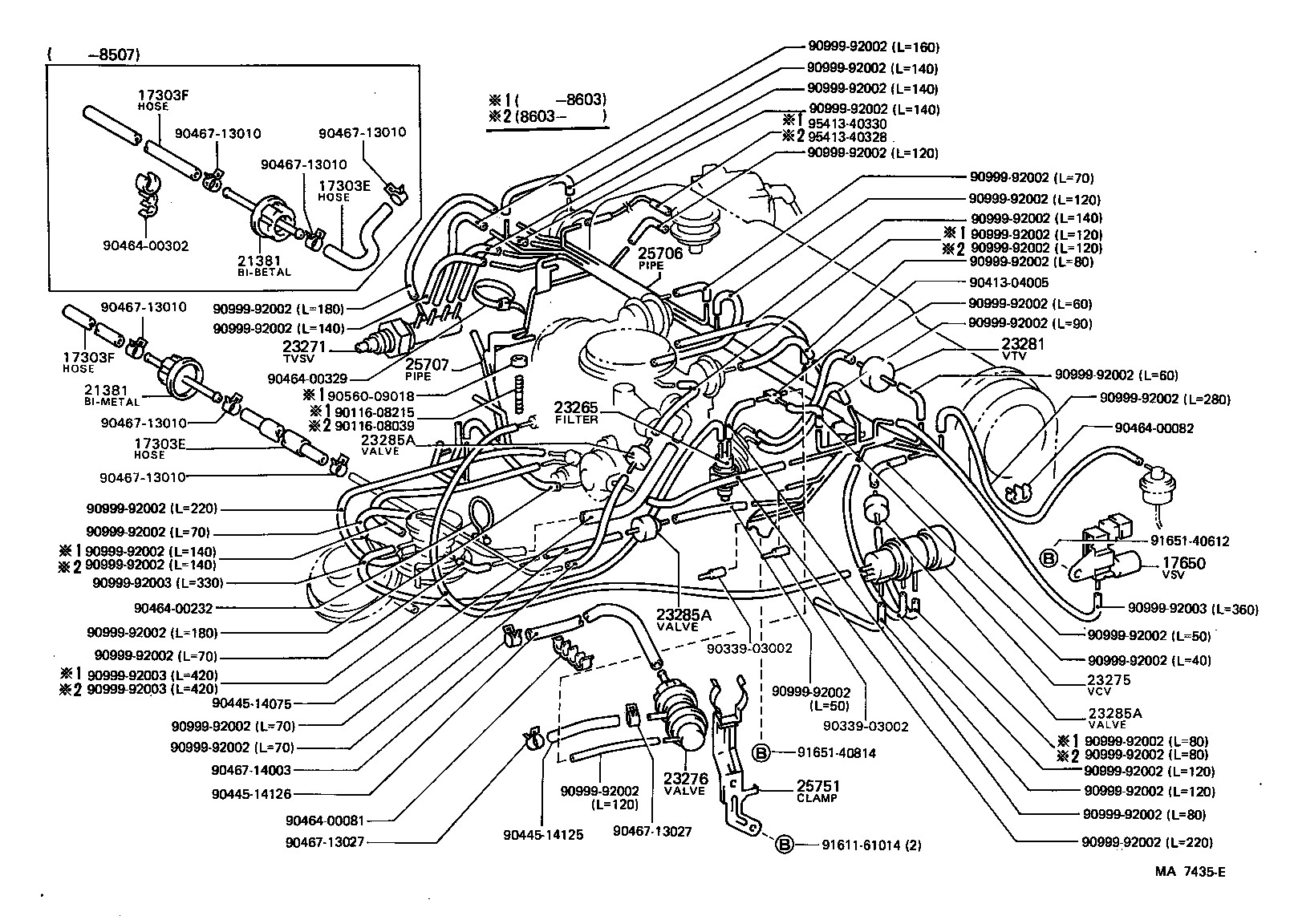

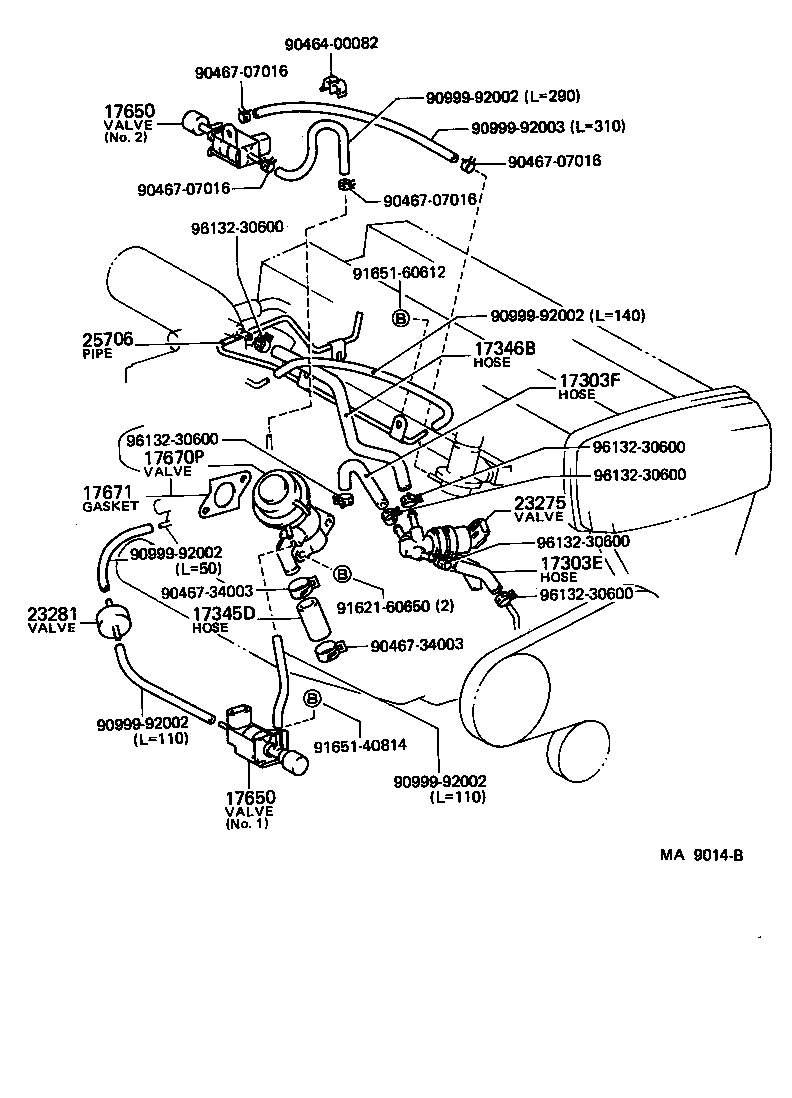

Figure MA9503A MA9503A 1984-06 → — Figure MA7435E MA7435E 1984-06 → 1986-08 Figure MA9013A MA9013A 1986-08 → — Figure MA7419C MA7419C 1984-06 → — Figure MA9014B MA9014B 1986-08 → —

Part groups

PNCDescription
17303E Hose, NO.1(FOR AIR PIPE)
17303F Hose, NO.2(FOR AIR PIPE)
17345D Hose, Air, NO.5
17346B Hose, Air, NO.6
17650 Valve Assy, Vacuum Switching
17670P Valve Assy, Air By-pass
17671 Gasket, Air By-pass Valve
21381 Bimetal, Thermostatic
23265 Filter, Gas, NO.1
23271 Valve, Thermostatic Vacuum Switching, NO.1
23275 Valve, Vacuum Control, NO.1
23276 Valve, Vacuum Control, NO.2
23281 Valve, Vacuum Transmitting, NO.1
23285A Valve, Check, NO.1
25706 Pipe Sub-assy, Vacuum Transmitting, NO.1
25707 Pipe Sub-assy, Vacuum Transmitting, NO.2
25719 Tank, Vacuum Surge
25751 Clamp, Vacuum Control Valve, NO.1
25804 Valve Set, Vacuum Control
25860 Valve Assy, Vacuum Switching, NO.1
25860A Valve, Vacuum Switching, NO.1
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
