Toyota MR2

1984-06 → 1989-12 · chassis AW1# · catalogue 211110 · Japan

Discontinued model Data version 1990-06
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Transaxle OR Transmission Assy & Gasket Kit (ATM)

3 part groups · 2 illustrations

Illustrations

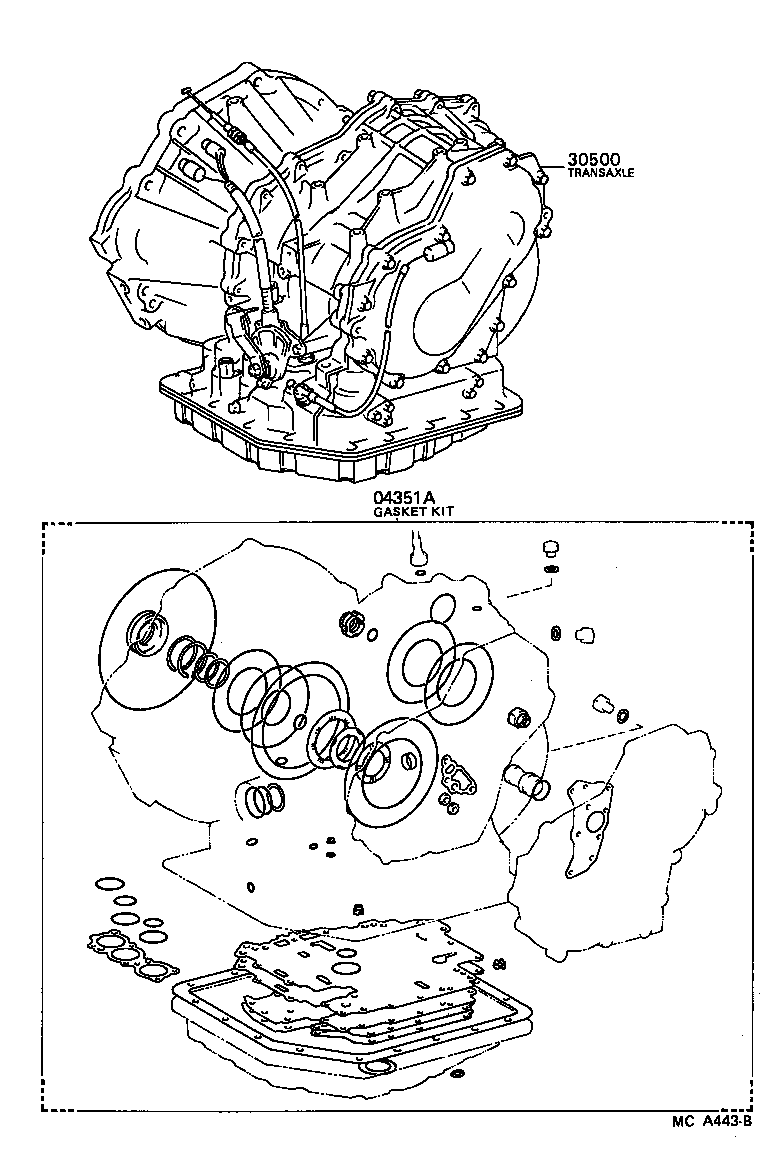

Figure MCA925B MCA925B 1984-06 → 1986-08 Figure MCA443B MCA443B 1986-08 → —

Part groups

PNCDescription
04351A Gasket Kit, Transaxle Overhaul(ATM)
04412A Gasket Kit, Differential Carrier(ATM)
30500 Transaxle Assy, Automatic
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
