Toyota MR2

1984-06 → 1989-12 · chassis AW1# · catalogue 211110 · Japan

Discontinued model Data version 1990-06
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Steering Wheel

22 part groups · 3 illustrations

Illustrations

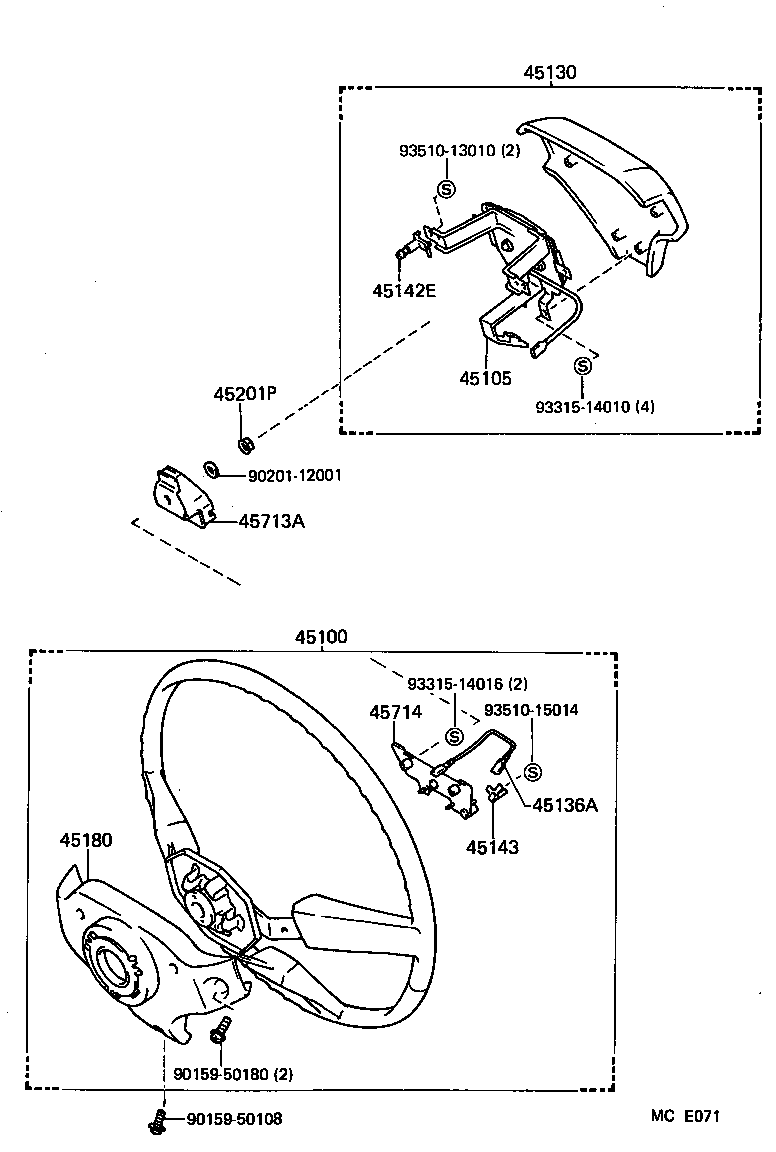

Figure MC9751D MC9751D 1984-06 → 1986-08 Figure MCE071 MCE071 1986-08 → — Figure MCF759 MCF759 1988-01 → —

Part groups

PNCDescription
45100 Wheel Assy, Steering
45102 Wheel Sub-assy, Steering
45103 Hub Sub-assy, Steering Wheel
45105 Plate Sub-assy, Horn Button Contact, NO.1
45105B Spacer(FOR HORN BUTTON CONTACT PLATE)
45112 Pad, Steering Wheel
45125 Mark, Steering Wheel Pad
45130 Button Assy, Horn
45136 Plate, Horn Button Contact
45136A Cord(FOR HORN CONTACT RING)
45136B Spring, Compression(FOR HORN BUTTON CONTACT PLATE)
45137 Plate, Horn Button Stop
45142 Seat, Horn Button Contact, NO.1
45142E Piece, Horn Contact
45143 Seat, Horn Button Contact, NO.2
45155A Spacer, Horn Contact
45180 Cover Sub-assy, Steering Wheel
45184 Cover, Steering Wheel Boss, Lower
45201P Nut, Steering Wheel Set
45207 Ring, Horn Contact
45713A Damper, Steering Shake
45714 Bracket, Steering Shake Dumper
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
