Toyota MR2
1984-06 → 1989-12 · chassis AW1# · catalogue 211110 · Japan
Discontinued model
Data version 1990-06

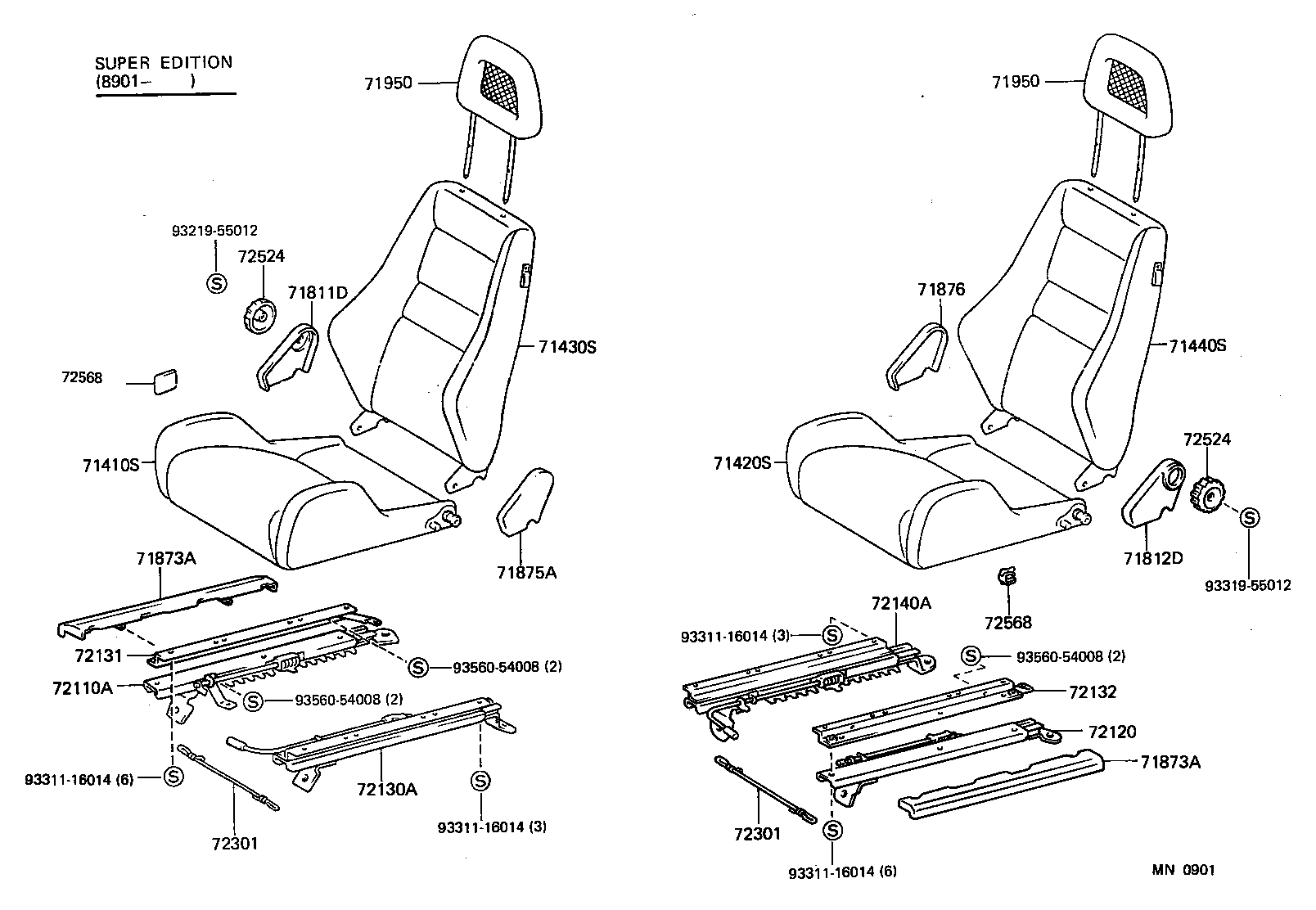

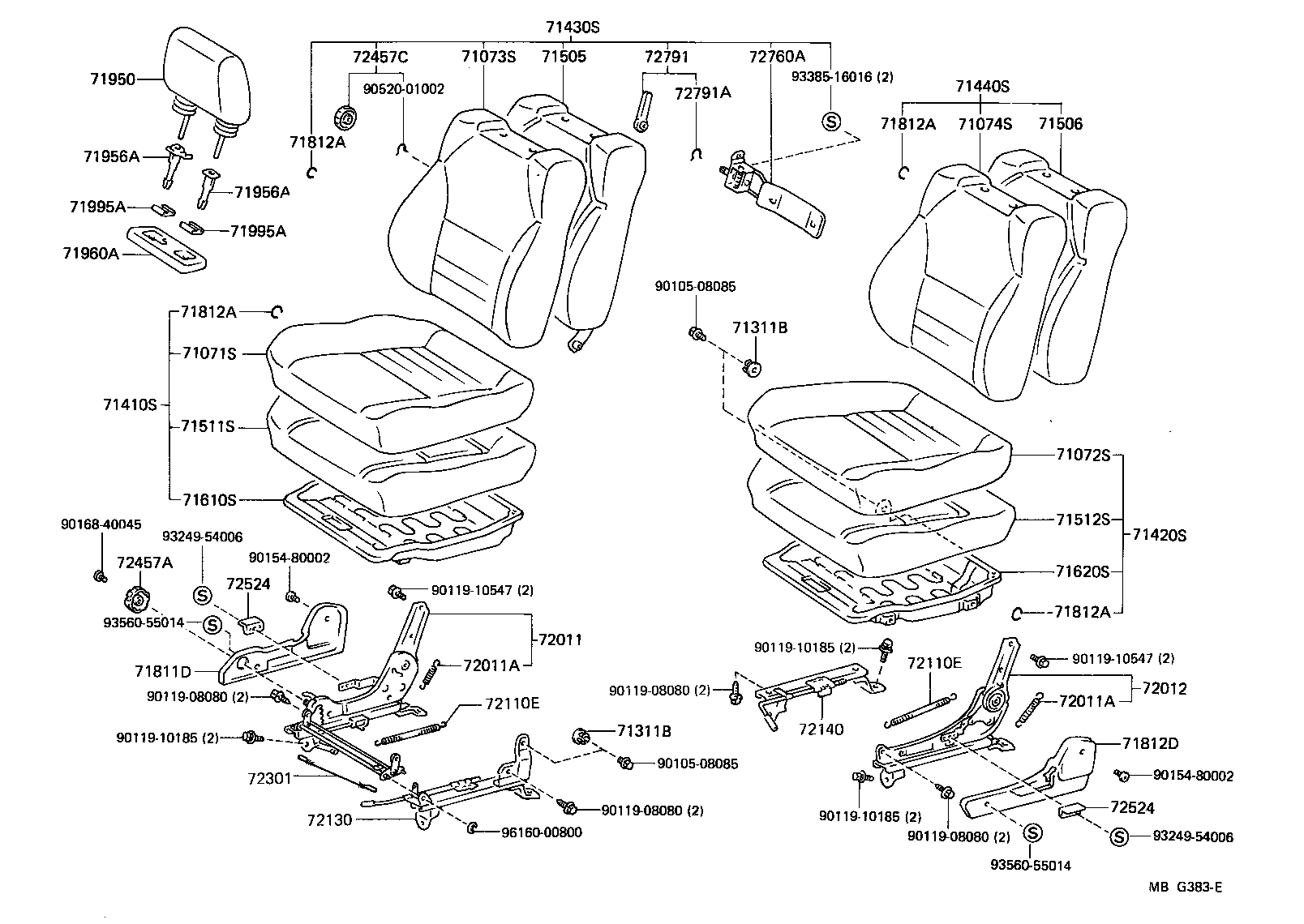

Front Seat & Seat Track
45 part groups · 3 illustrations
Part groups
| PNC | Description |
|---|---|
| 71071S | Cover, Front Seat Cushion, RH(FOR SEPARATE TYPE) |
| 71072S | Cover, Front Seat Cushion, LH(FOR SEPARATE TYPE) |
| 71073S | Cover, Front Seatback, RH(FOR SEPARATE TYPE) |
| 71074S | Cover, Front Seatback, LH(FOR SEPARATE TYPE) |
| 71311B | Bush (FOR FRONT SEAT HINGE PIN) |
| 71410S | Cushion Assy, Front Seat, RH(FOR SEPARATE TYPE) |
| 71420S | Cushion Assy, Front Seat, LH (FOR SEPARATE TYPE) |
| 71430S | Back Assy, Front Seat, RH(FOR SEPARATE TYPE) |
| 71440S | Back Assy, Front Seat, LH(FOR SEPARATE TYPE) |
| 71505 | Pad Sub-assy, Front Seatback W/Frame, RH |
| 71506 | Pad Sub-assy, Front Seatback W/Frame, LH |
| 71511S | Pad, Front Seat Cushion, RH(FOR SEPARATE TYPE) |
| 71512S | Pad, Front Seat Cushion, LH (FOR SEPARATE TYPE) |
| 71610S | Spring Assy, Front Seat Cushion, RH(FOR SEPARATE TYPE) |
| 71620S | Spring Assy, Front Seat Cushion, LH(FOR SEPARATE TYPE) |
| 71811D | Shield, Front Seat Cushion, RH |
| 71812A | Ring, Hog, Small (FOR FRONT SEAT) |
| 71812D | Shield, Front Seat Cushion, LH |
| 71873A | Shield, Front Seat Cushion, Lower |
| 71875A | Cover, Reclining Adjuster Inside, RH |
| 71876 | Cover, Reclining Adjuster Inside, LH |
| 71950 | Headrest Assy, Front Seat |
| 71956A | Support, Front Seat Headrest |
| 71960A | Base Assy, Headrest Support |
| 71995A | Clamp, Headrest Boot |
| 72011 | Adjuster Sub-assy, Front Seat, Outer RH |
| 72011A | Spring, Tension (FOR FRONT SEAT ADJUSTER OUTER) |
| 72012 | Adjuster Sub-assy, Front Seat, Outer LH |
| 72110A | Track Assy, Front Seat, Outer RH |
| 72110E | Spring, Tension, NO.1 (FOR SEAT TRACK) |
| 72120 | Track Assy, Front Seat, Outer LH |
| 72130 | Track Assy, RH Seat, Inner |
| 72130A | Track Assy, Front Seat, Inner RH |
| 72131 | Bracket, Front Outer Seat Track Upper Rail, RH |
| 72132 | Bracket, Front Outer Seat Track Upper Rail, LH |
| 72140 | Track Assy, LH Seat, Inner |
| 72140A | Track Assy, Front Seat,Inner LH |
| 72301 | Wire Sub-assy, Seat Track Equalizing |
| 72457A | Knob, Seat Adjuster |
| 72457C | Knob, Side Support Adjuster |
| 72524 | Handle, Reclining Adjuster Release |
| 72568 | Plate, Reclining Bolt Lock |
| 72760A | Adjuster Assy, Lumbar Support |
| 72791 | Lever, Lumbar Support |
| 72791A | Ring, Shaft Snap(FOR LUMBER SUPPORT LEVER) |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
