Toyota MR2

1984-06 → 1989-12 · chassis AW1# · catalogue 211110 · Japan

Discontinued model Data version 1990-06
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Armrest & Visor

13 part groups · 2 illustrations

Illustrations

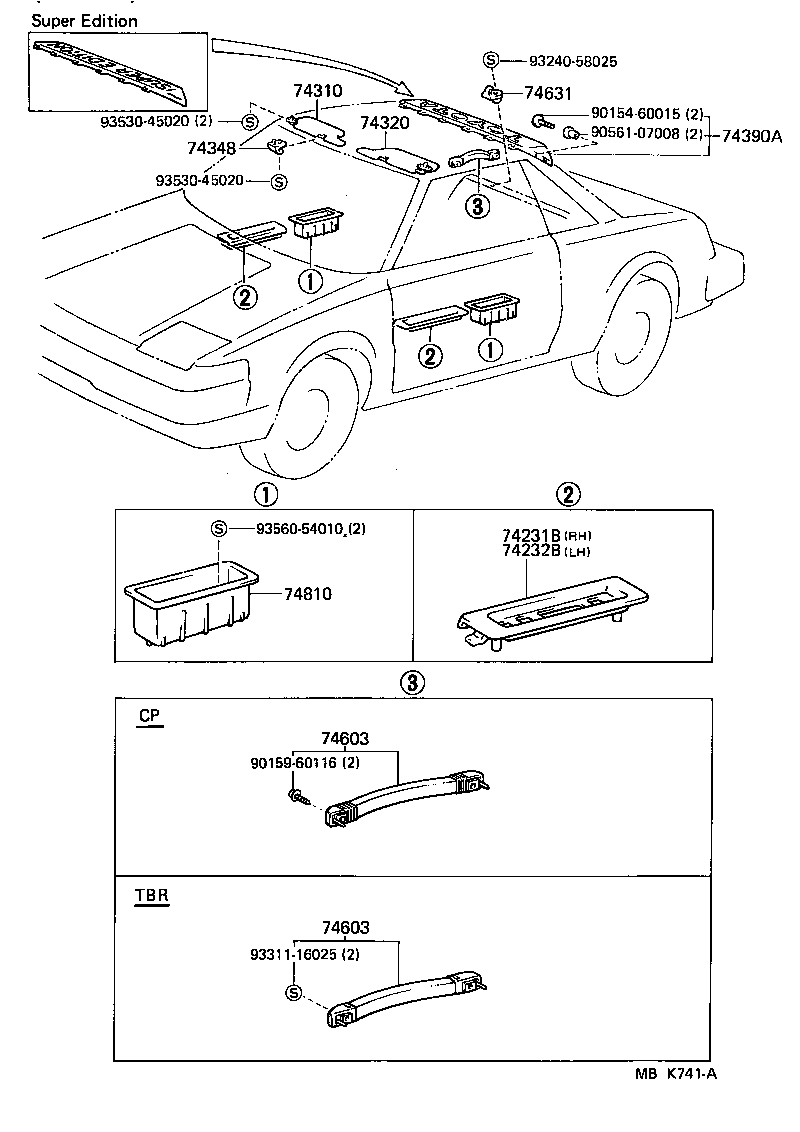

Figure MBG289E MBG289E 1984-06 → 1986-08 Figure MBK741A MBK741A 1986-08 → —

Part groups

PNCDescription
74210 Armrest Assy, Front, RH
74220 Armrest Assy, Front, LH
74223 Cap, Door Armrest, RH
74224 Cap, Door Armrest, LH
74231B Panel, Door Armrest Base, RH
74232B Panel, Door Armrest Base, LH
74310 Visor Assy, RH
74320 Visor Assy, LH
74348 Holder, Visor
74390A Visor Assy, Rear, Outer
74603 Grip Sub-assy, Assist, Front
74631 Hook, Coat, A
74810 Pull Assy, Door, Inside
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
