Toyota MR2

1984-06 → 1989-12 · chassis AW1# · catalogue 211110 · Japan

Discontinued model Data version 1990-06
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Emblem & Name Plate (EXTERIOR & INTERIOR)

8 part groups · 2 illustrations

Illustrations

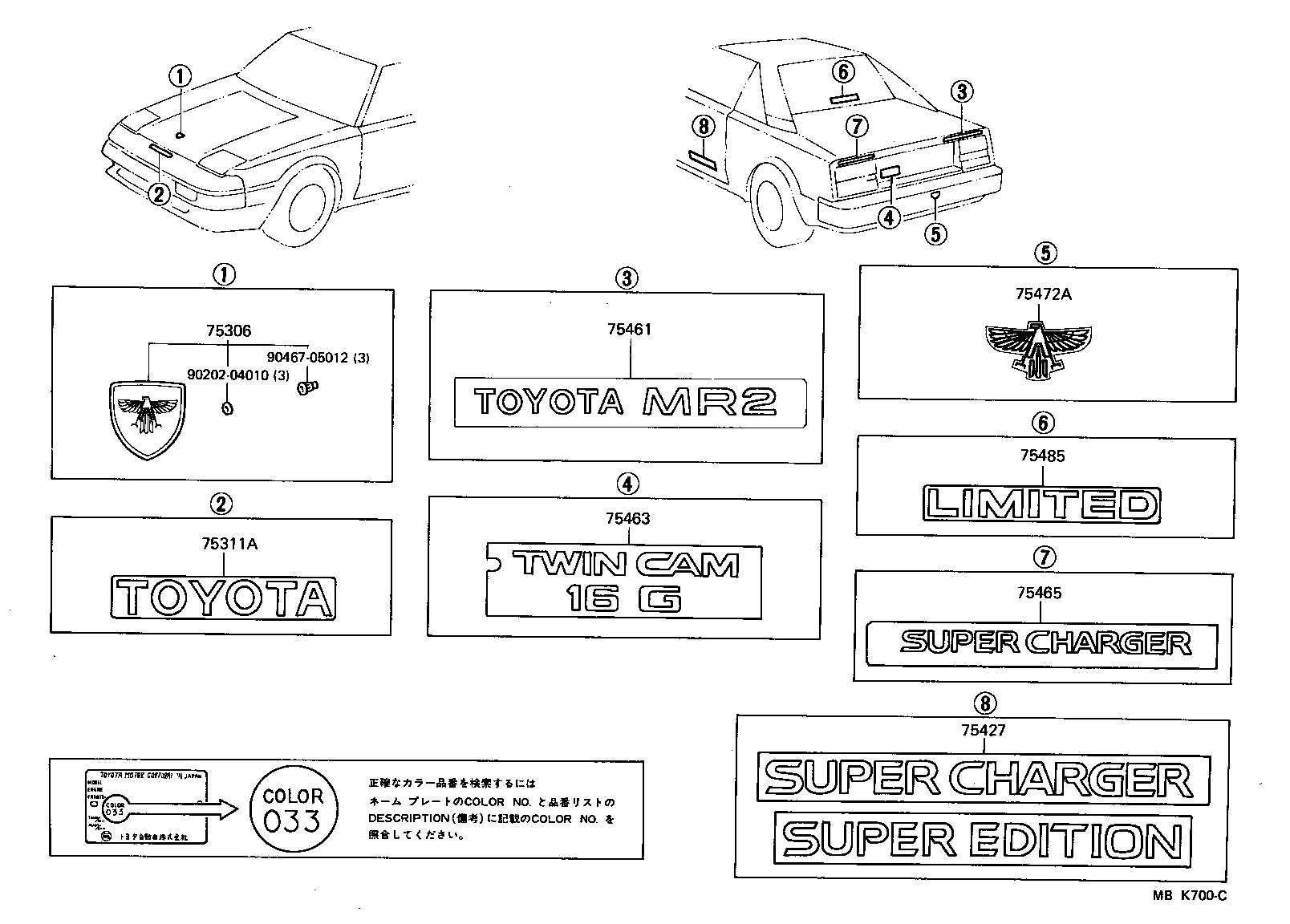

Figure MBG293D MBG293D 1984-06 → 1986-08 Figure MBK700C MBK700C 1986-08 → —

Part groups

PNCDescription
75306 Plate, Hood Name
75311A Plate, Front Name, NO.1
75427 Plate, Front Door Name
75461 Plate, Rear Name, NO.2 (MODEL MARK)
75463 Plate, Rear Name, NO.4 (GRADE MARK)
75465 Plate, Rear Name, NO.5 (MECHANISM)
75472A Plate, Rear Body Name, NO.2
75485 Plate, Back Window Name
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
