Toyota MR2

1984-06 → 1989-12 · chassis AW1# · catalogue 211110 · Japan

Discontinued model Data version 1990-06
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Heating & Air Conditioning - Vacuum Piping

10 part groups · 2 illustrations

Illustrations

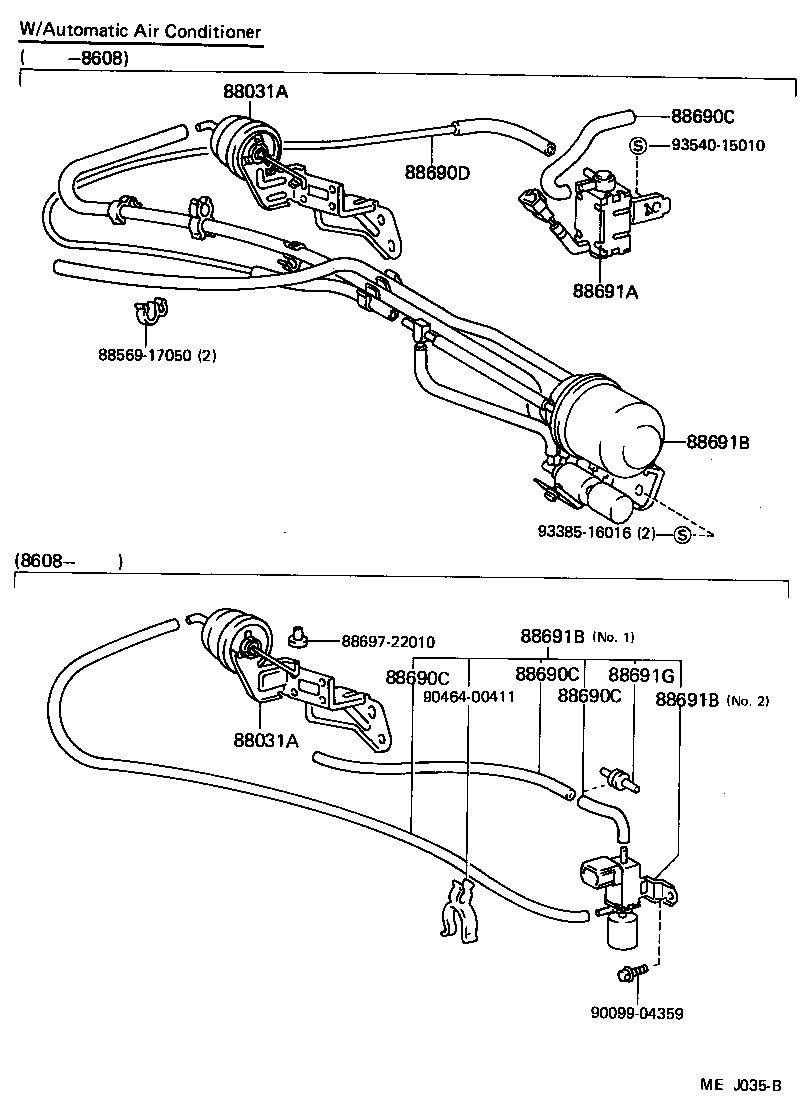

Figure MEF088H MEF088H 1984-06 → — Figure MEJ035B MEJ035B 1984-06 → —

Part groups

PNCDescription
88031 Actuator Set, Idle-up
88031A Diaphragm Sub-assy, Idle-up Actuator
88690C Hose, Vacuum, NO.1 (FOR HEATER OR AIR CONDITIONER)
88690D Hose, Vacuum, NO.2 (FOR HEATER OR AIR CONDITIONER)
88691 Valve, Magnet (FOR IDLE UP DEVICE)
88691A Valve, Magnet (FOR BLOWER CHANGING-OVER DEVICE)
88691B Valve, Magnet (FOR WATER VALVE)
88691C Hose, Vacuum (FOR IDLE UP DEVICE), NO.1
88691G Valve, Check(FOR IDLE-UP DIVICE)
88892B Cover, Magnet Valve
