Toyota MR2

1989-12 → 1999-08 · chassis SW20 · catalogue 211120 · Japan

Discontinued model Data version 2000-03
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Camshaft & Valve

20 part groups · 5 illustrations

Illustrations

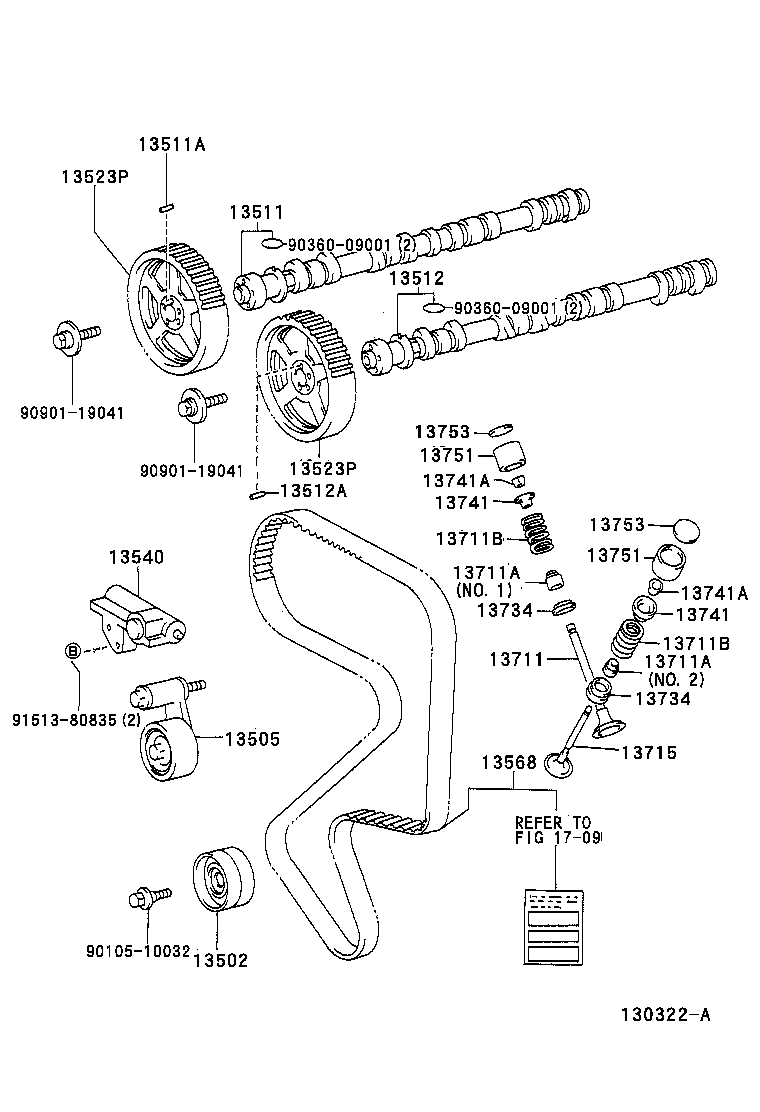

Figure 130321A 130321A 1989-12 → 1993-11 Figure 130322A 130322A 1989-12 → 1993-11 Figure 130125B 130125B 1993-11 → 1997-12 Figure 130125B 130125B 1997-12 → — Figure 130139B 130139B 1997-12 → —

Part groups

PNCDescription
13050 Gear Assy, Camshaft Timing
13502 Idler Sub-assy, Timing Belt, NO.2
13505 Idler Sub-assy, Timing Belt, NO.1
13505A Spring, Tension(FOR IDLER)
13511 Camshaft
13511A Pin, Straight(FOR CAMSHAFT KNOCK)
13512 Camshaft, NO.2
13512A Pin, Straight NO.2(FOR CAMSHAFT KNOCK)
13523P Pulley, Camshaft Timing
13540 Tensioner Assy, Chain, NO.1
13568 Belt, Timing
13711 Valve, Intake
13711A Seal OR Ring, O(FOR VALVE STEM OIL)
13711B Spring, Compression(FOR INNER)
13715 Valve, Exhaust
13734 Seat, Valve Spring
13741 Retainer, Valve Spring
13741A Lock, Valve Spring Retainer
13751 Lifter, Valve
13753 Shim, Valve Adjusting
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
