Toyota MR2
1989-12 → 1999-08 · chassis SW20 · catalogue 211120 · Japan
Discontinued model
Data version 2000-03
Manifold

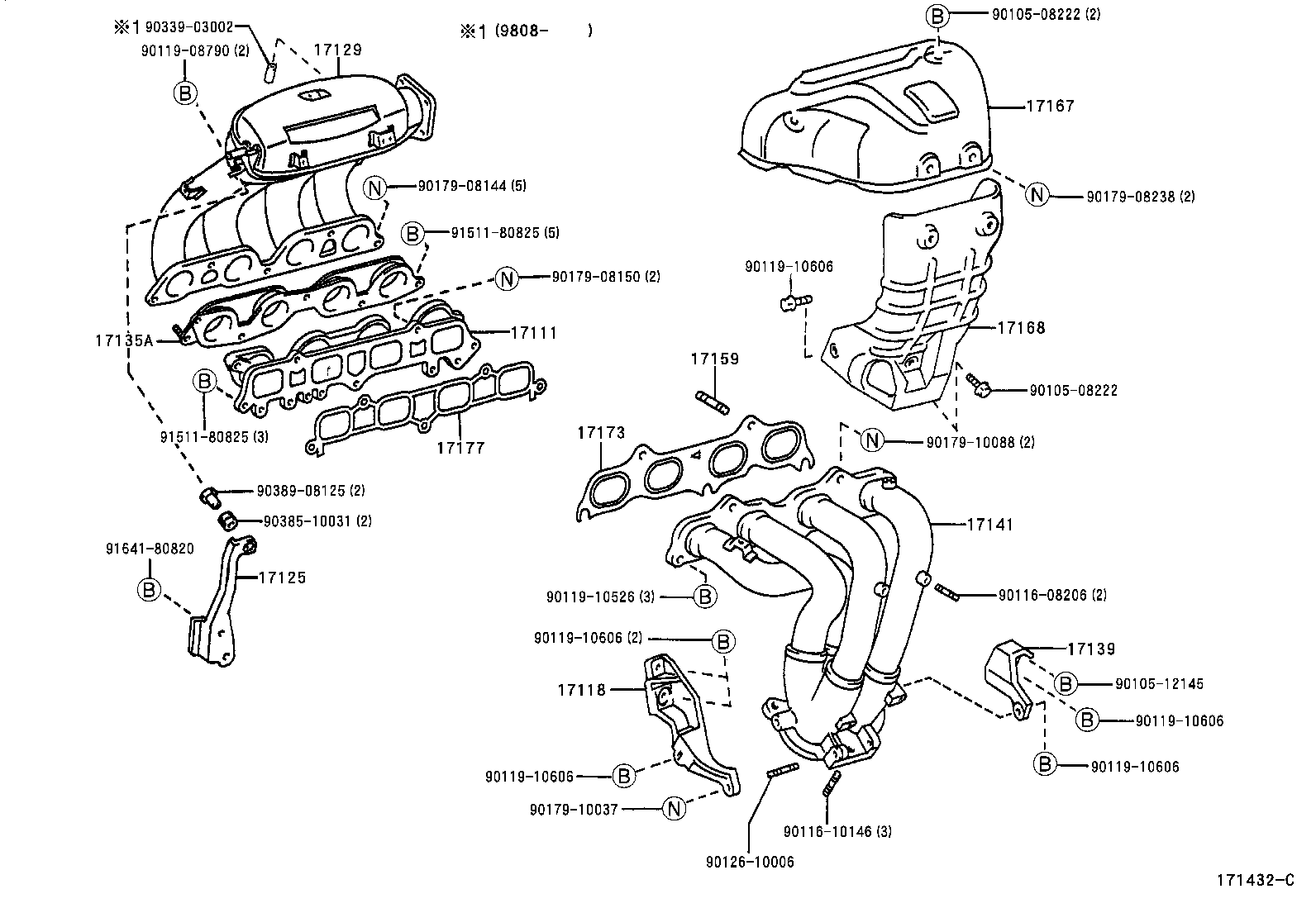

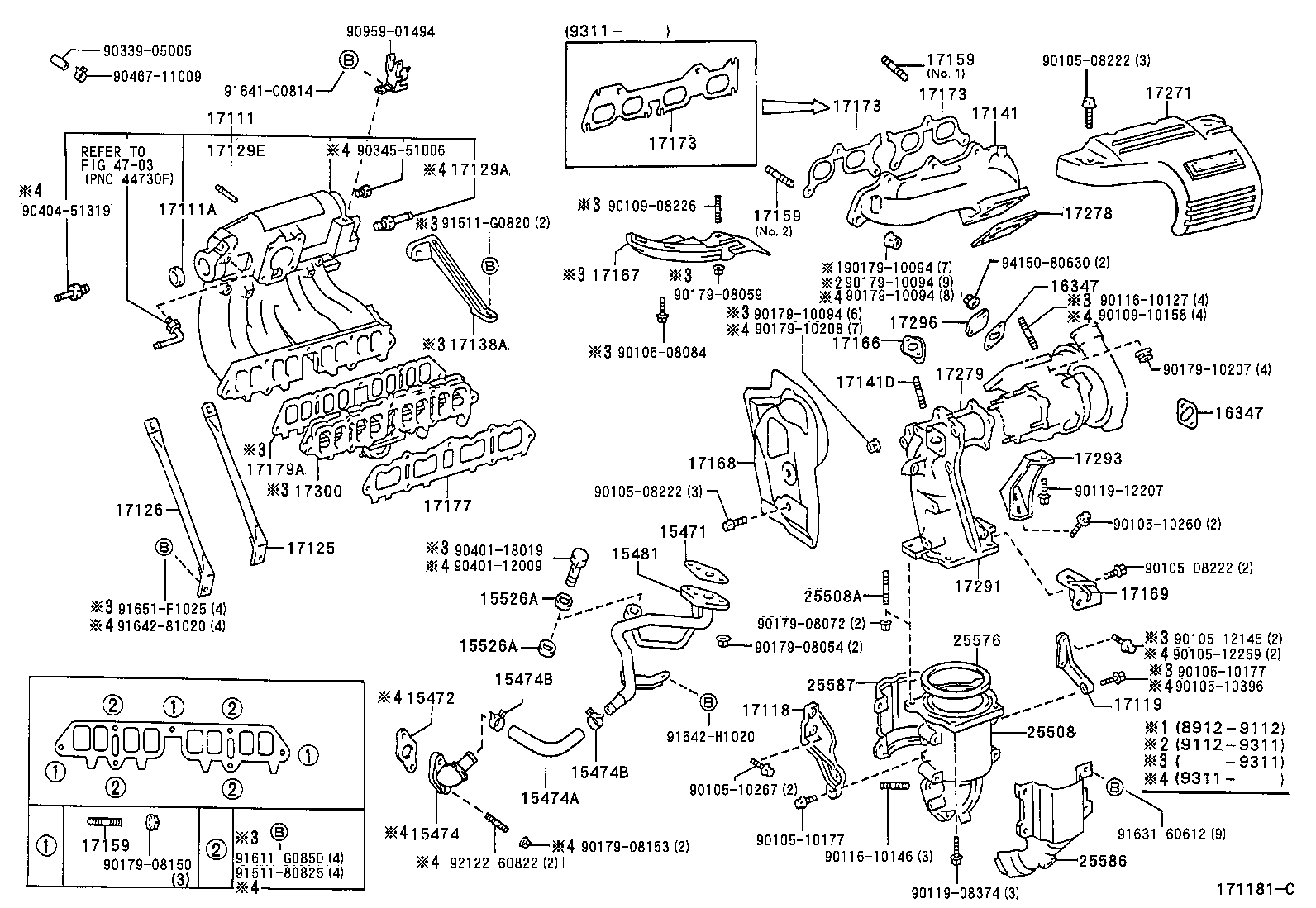

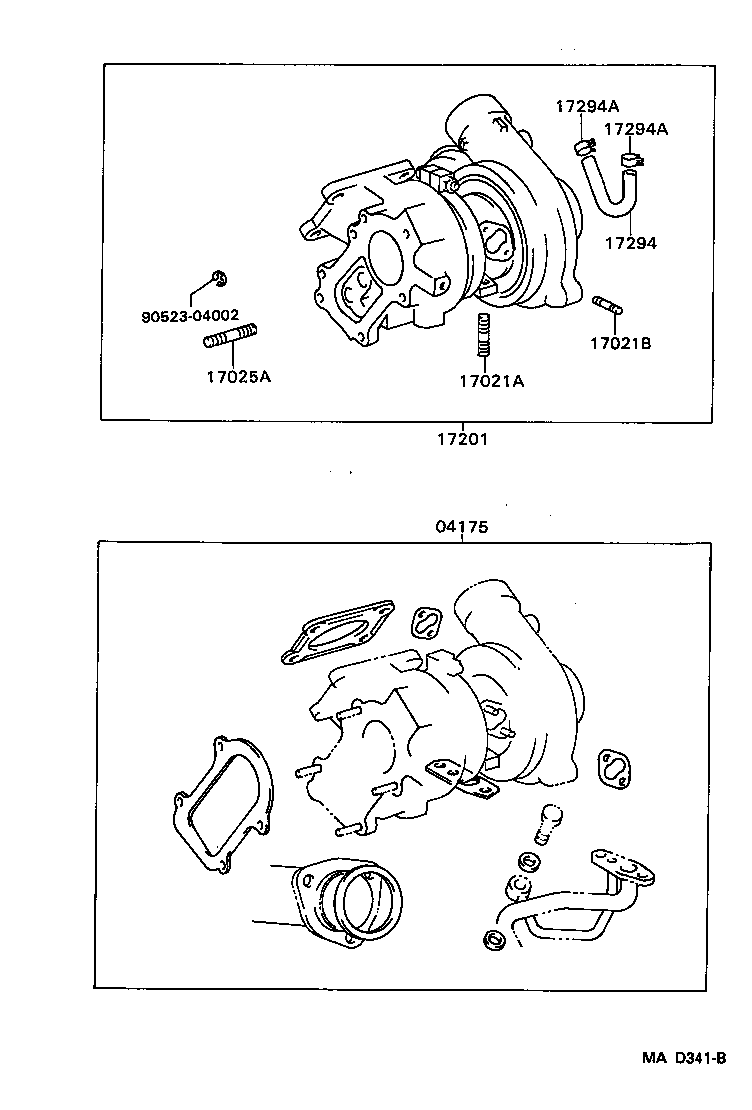

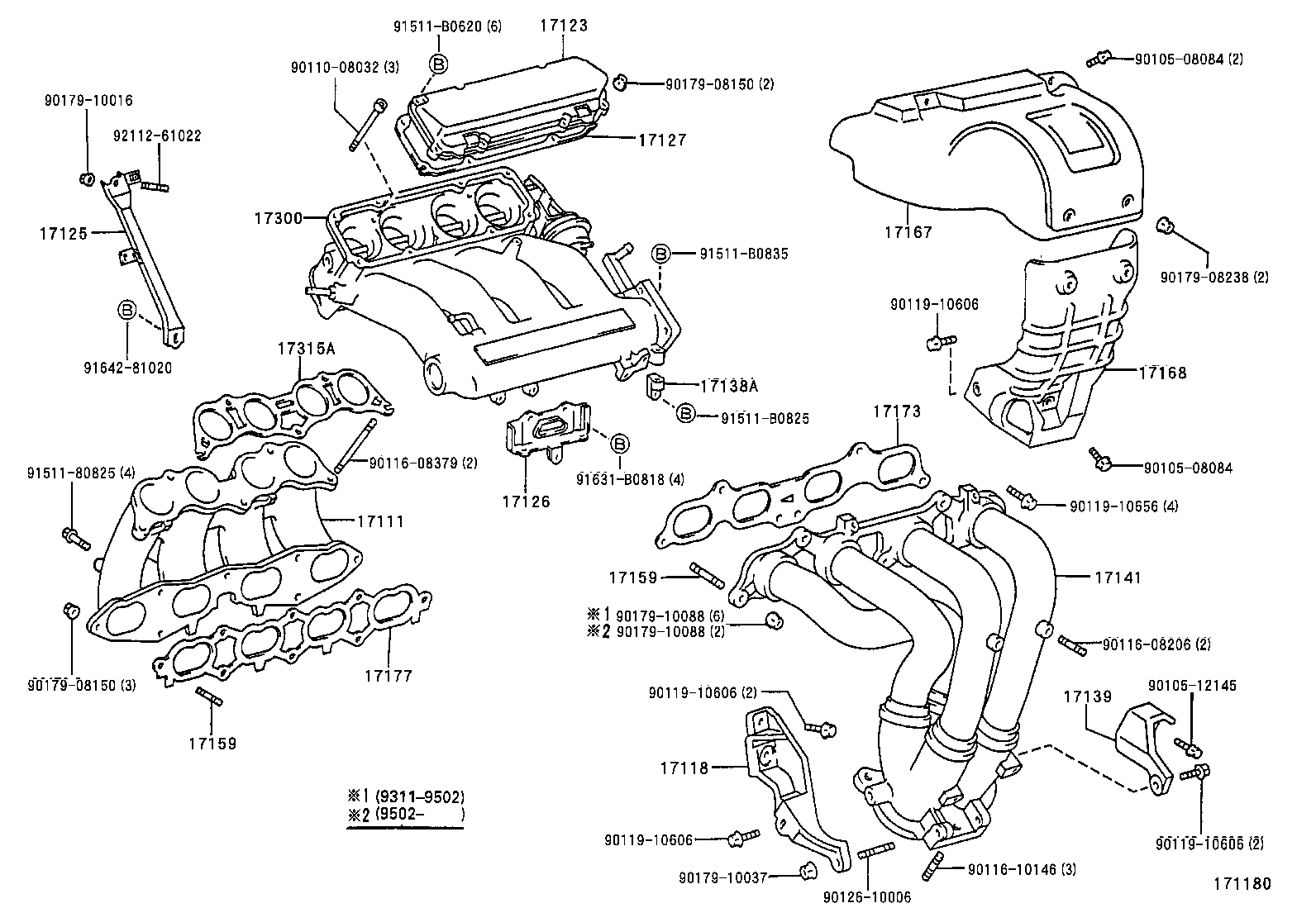

54 part groups · 5 illustrations
Part groups
| PNC | Description |
|---|---|
| 04175 | Gasket Kit, Turbocharger |
| 15471 | Gasket, Turbo Oil Inlet |
| 15472 | Gasket, Turbo Oil Outlet, NO.1 |
| 15474 | Pipe, Turbo Oil Outlet |
| 15474A | Hose, Turbo Oil Outlet |
| 15474B | Clamp OR Clip(FOR TURBO OIL OUTLET HOSE) |
| 15481 | Pipe, Turbo Oil, NO.1 |
| 15526A | Gasket, Joint(FOR TURBO OIL PIPE) |
| 16347 | Gasket, Water By-pass |
| 17021A | Bolt, Stud(FOR BEARING HOUSING) |
| 17021B | Bolt, Stud |
| 17025A | Bolt, Stud(FOR TURBINE HOUSING) |
| 17111 | Manifold, Intake |
| 17111A | Plug, NO.1 |
| 17111B | Plug, NO.2 |
| 17118 | Stay, Manifold |
| 17119 | Stay, Manifold, NO.2 |
| 17123 | Cover, Surge Tank |
| 17125 | Stay, Surge Tank, NO.1 |
| 17126 | Stay, Surge Tank, NO.2 |
| 17127 | Gasket, Surge Tank Cover |
| 17129 | Tank, Intake Air Surge |
| 17129A | Union, NO.1 |
| 17129E | Union, NO.3 |
| 17135A | Insulator, Intake Manifold, NO.1 |
| 17138A | Stay, Intake Pipe |
| 17139 | Stay, Manifold, NO.2 |
| 17141 | Manifold, Exhaust |
| 17141D | Bolt, Stud(FOR OXYGEN SENSOR) |
| 17152 | Bolt, Stud(FOR MANIFOLD TO EXHAUST PIPE) |
| 17159 | Bolt, Stud(FOR MANIFOLD TO CYLINDER HEAD) |
| 17166 | Insulator, Exhaust Manifold Heat,NO.4 |
| 17167 | Insulator, Exhaust Manifold Heat, NO.1 |
| 17168 | Insulator, Exhaust Manifold Heat, NO.2 |
| 17169 | Insulator, Exhaust Manifold Heat, NO.3 |
| 17173 | Gasket, Exhaust Manifold TO Head |
| 17177 | Gasket, Intake Manifold TO Head, NO.1 |
| 17179A | Gasket, Intake Manifold, NO.2 |
| 17201 | Turbocharger Sub-assy |
| 17271 | Insulator, Turbo, NO.1 |
| 17278 | Gasket, Turbo TO Exhaust Manifold |
| 17279 | Gasket, Turbine Outlet Elbow |
| 17291 | Elbow, Turbine Outlet |
| 17293 | Stay, Turbocharger |
| 17294 | Hose, Actuator |
| 17294A | Clip(FOR ACTUATOR HOSE) |
| 17296 | Plate, Bearing Housing, Side |
| 17300 | Valve Assy, Intake Air Control |
| 17315A | Gasket, Intake Air Control Valve |
| 25508 | Converter Sub-assy, Manifold |
| 25508A | Bolt, Stud(FOR MANIFOLD CONVERTER) |
| 25576 | Gasket, Manifold Converter |
| 25586 | Insulator, Manifold Converter, NO.1 |
| 25587 | Insulator, Manifold Converter, NO.2 |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
