Toyota MR2
1989-12 → 1999-08 · chassis SW20 · catalogue 211120 · Japan
Discontinued model
Data version 2000-03

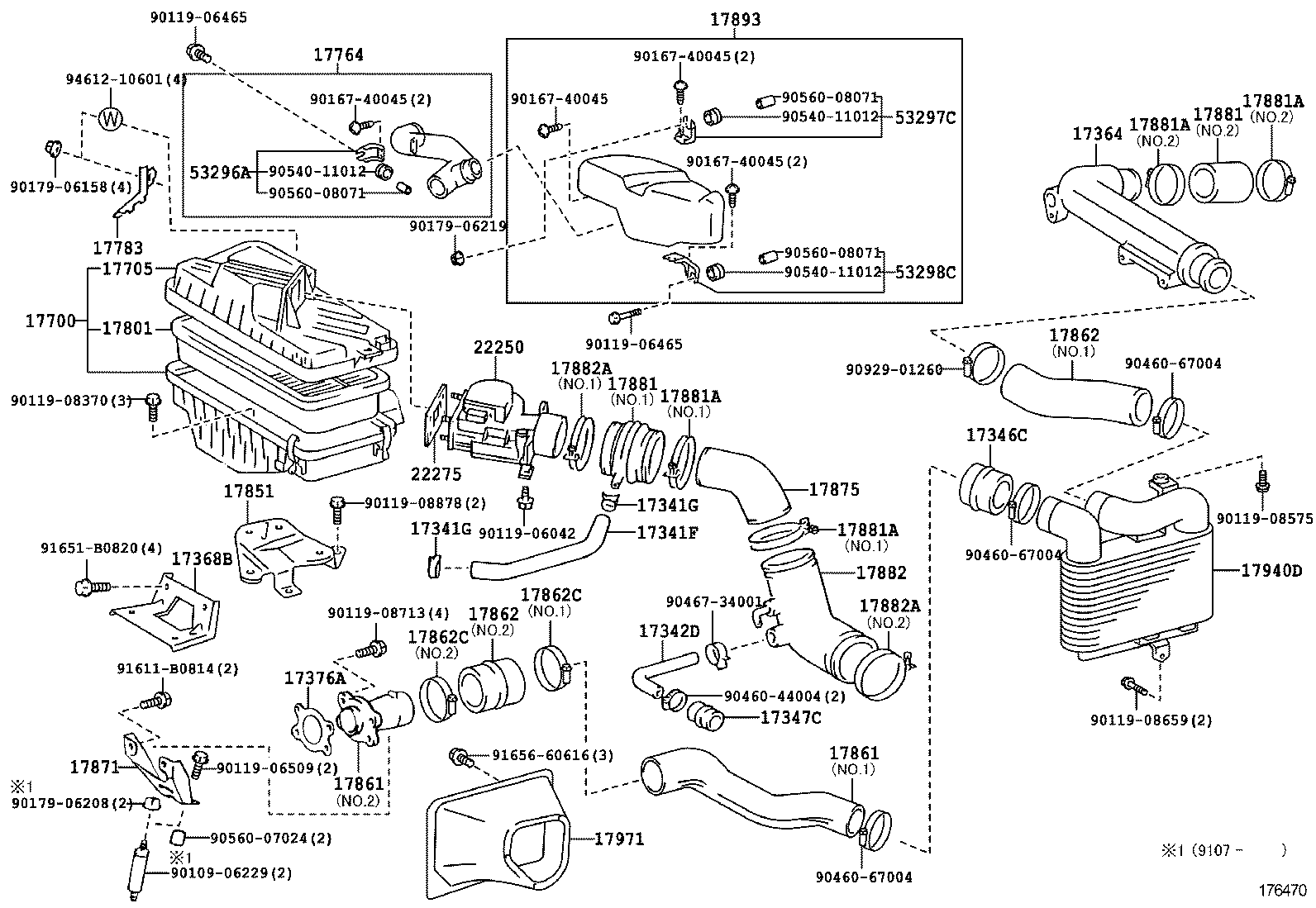

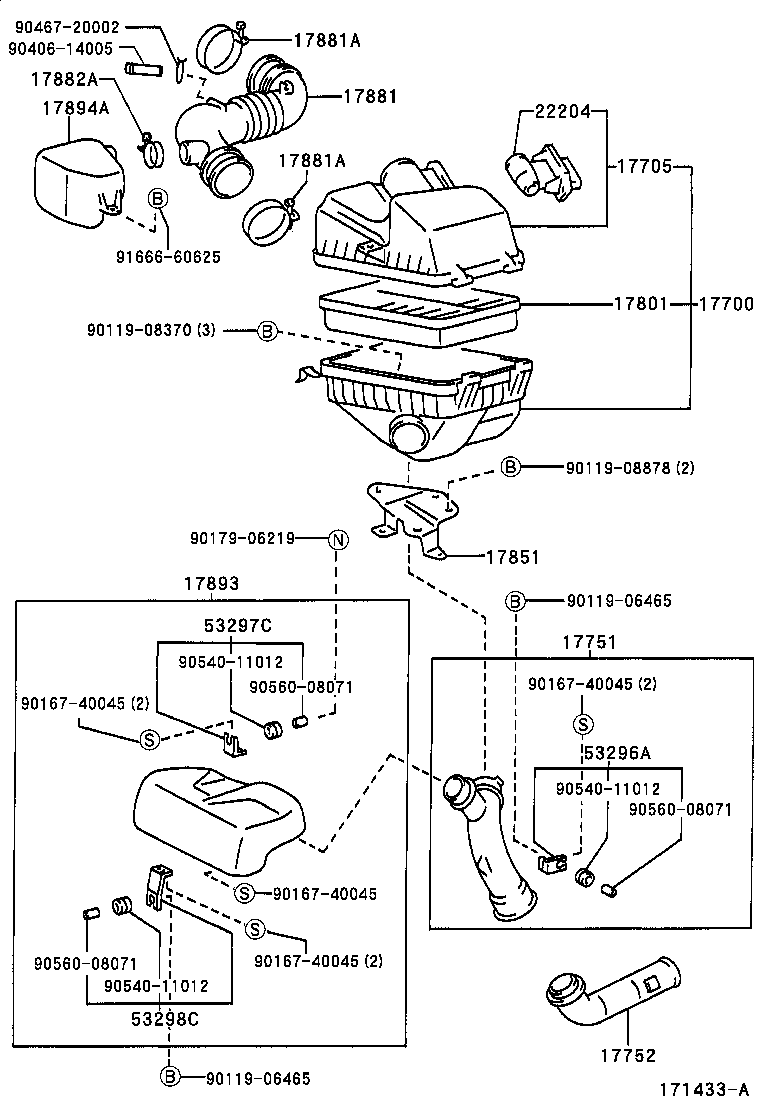

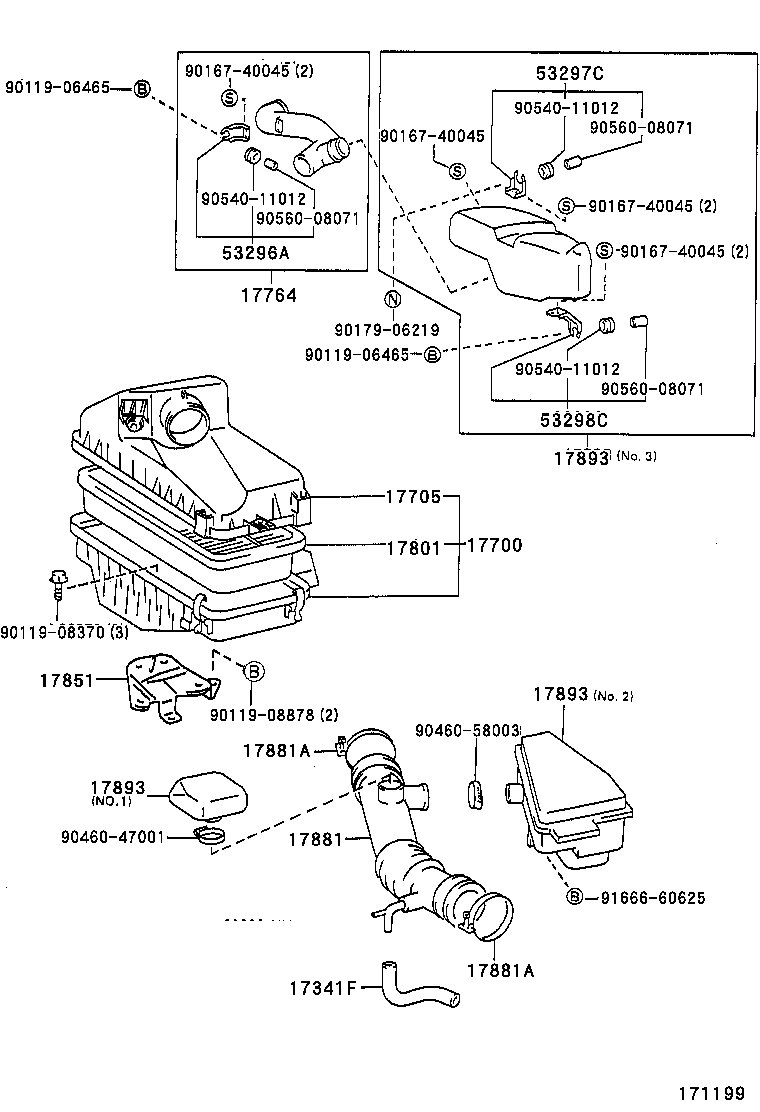

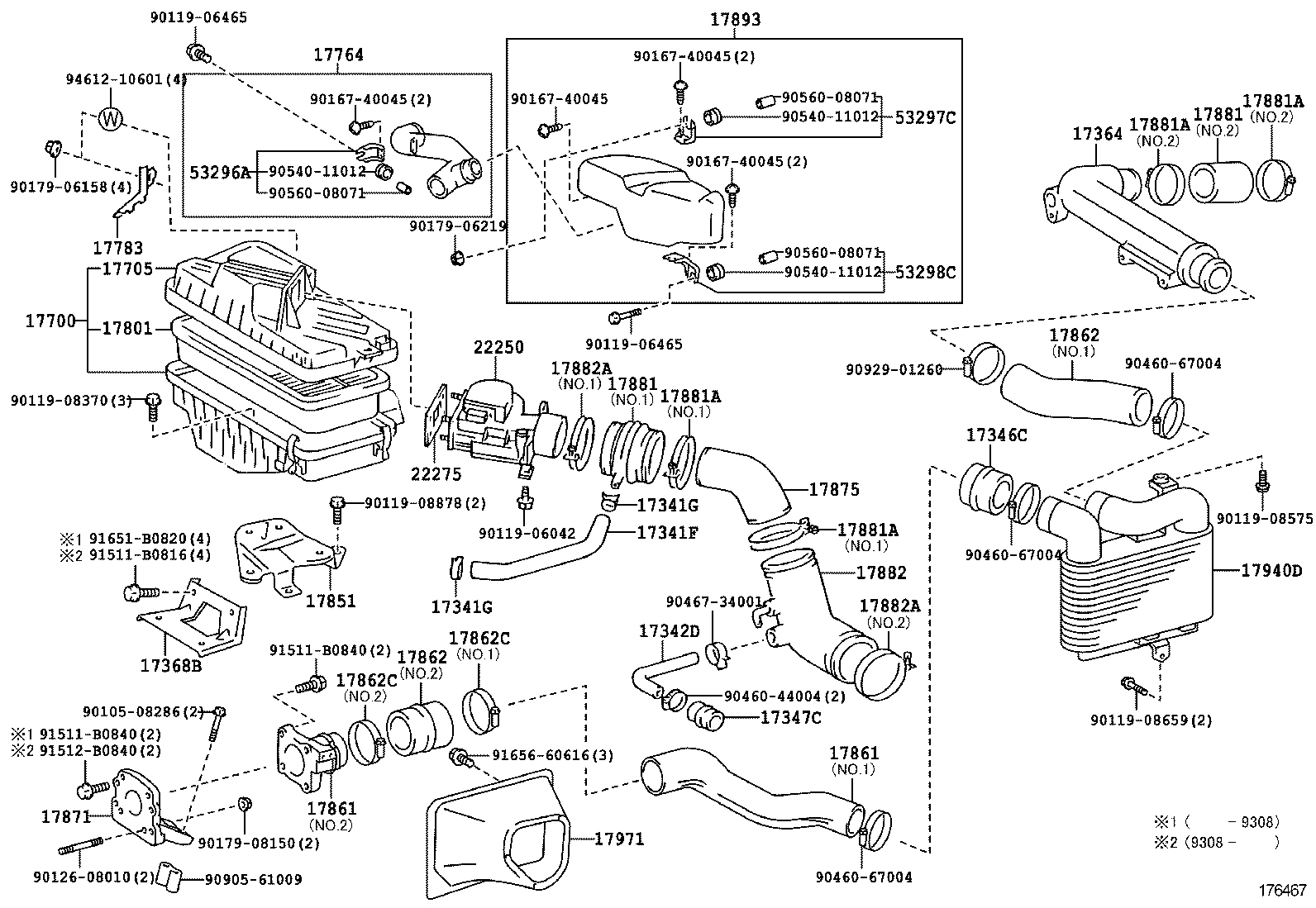

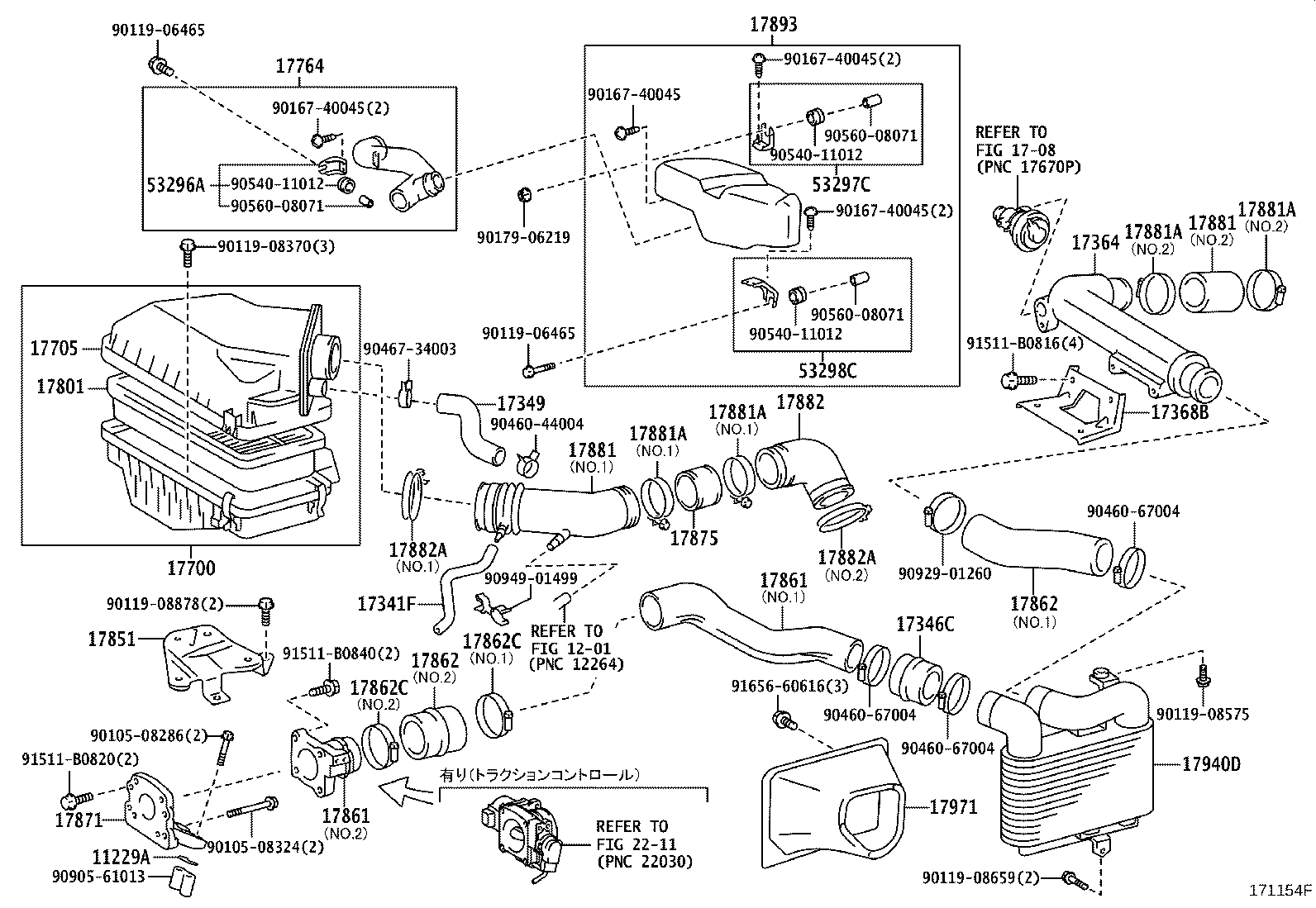

Air Cleaner
37 part groups · 6 illustrations
Part groups
| PNC | Description |
|---|---|
| 11229A | Gasket, Cylinder Head Cover, NO.3 |
| 17341F | Hose, Air, NO.1 |
| 17341G | Clamp OR Clip(FOR AIR HOSE, NO.1) |
| 17342D | Hose, Air, NO.2 |
| 17346C | Hose, NO.6 |
| 17347C | Hose, Air, NO.7 |
| 17349 | Hose, Intake Pipe |
| 17364 | Tube, Air, NO.4 |
| 17368B | Support, Air Tube |
| 17376A | Gasket, Air Tube |
| 17700 | Cleaner Assy, Air |
| 17705 | Cap Sub-assy, Air Cleaner |
| 17751 | Inlet, Air Cleaner, NO.1 |
| 17752 | Inlet, Air Cleaner, NO.2 |
| 17764 | Duct, Air Cleaner |
| 17783 | Plate, Air Cleaner Baffle |
| 17801 | Element Sub-assy, Air Cleaner Filter |
| 17851 | Bracket, Air Cleaner Support |
| 17861 | Connector, Intake Air |
| 17862 | Connector, Intake Air, NO.2 |
| 17862C | Clamp(FOR INTAKE AIR CONNECTOR NO.2) |
| 17871 | Stay, Air Connector |
| 17875 | Pipe, Intake Air Connector |
| 17881 | Hose, Air Cleaner, NO.1 |
| 17881A | Clamp(FOR AIR CLEANER HOSE, NO.1) |
| 17882 | Hose, Air Cleaner, NO.2 |
| 17882A | Clamp(FOR AIR CLEANER HOSE, NO.2) |
| 17893 | Resonator, Intake Air |
| 17894A | Resonator, Intake Air, NO.2 |
| 17940D | Intercooler Assy |
| 17971 | Inlet, Cool Air, NO.1 |
| 22204 | Meter Sub-assy, Intake Air Flow |
| 22250 | Meter Assy, Intake Air Flow |
| 22275 | Gasket, Air Flow Meter |
| 53296A | Retainer, Cool Air Intake Duct |
| 53297C | Retainer, Cool Air Intake Duct, NO.2 |
| 53298C | Retainer, Cool Air Intake Duct, NO.3 |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
