Toyota MR2

1989-12 → 1999-08 · chassis SW20 · catalogue 211120 · Japan

Discontinued model Data version 2000-03
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Vacuum Piping

21 part groups · 8 illustrations

Illustrations

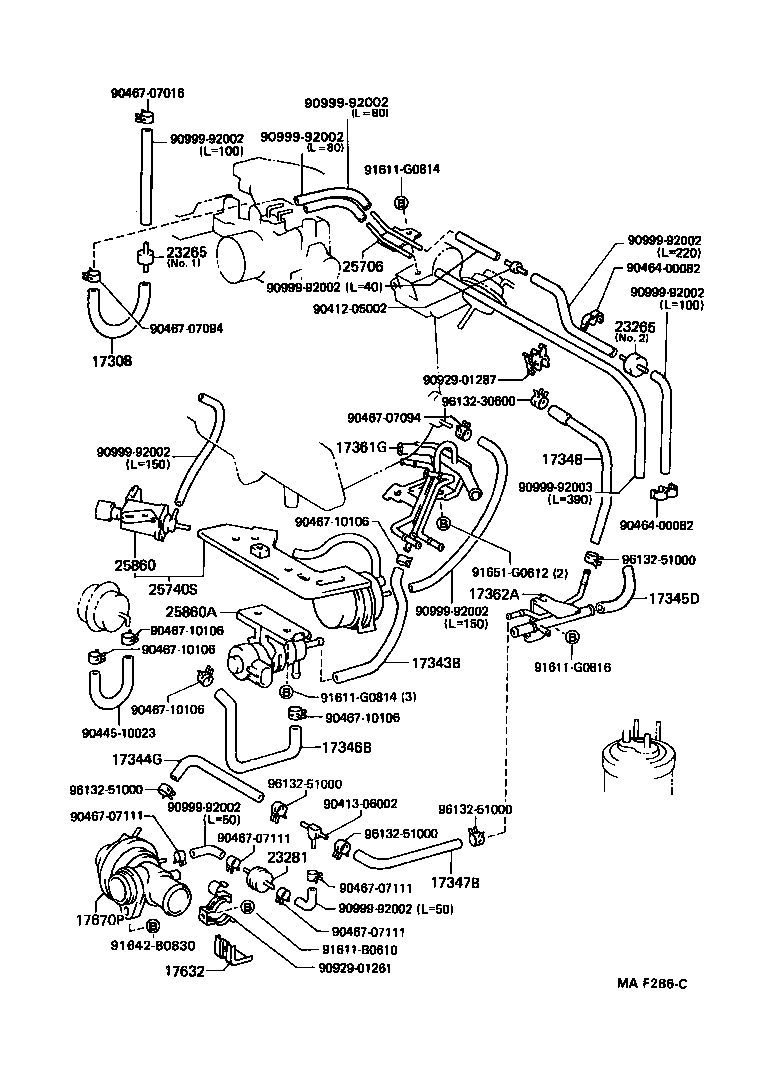

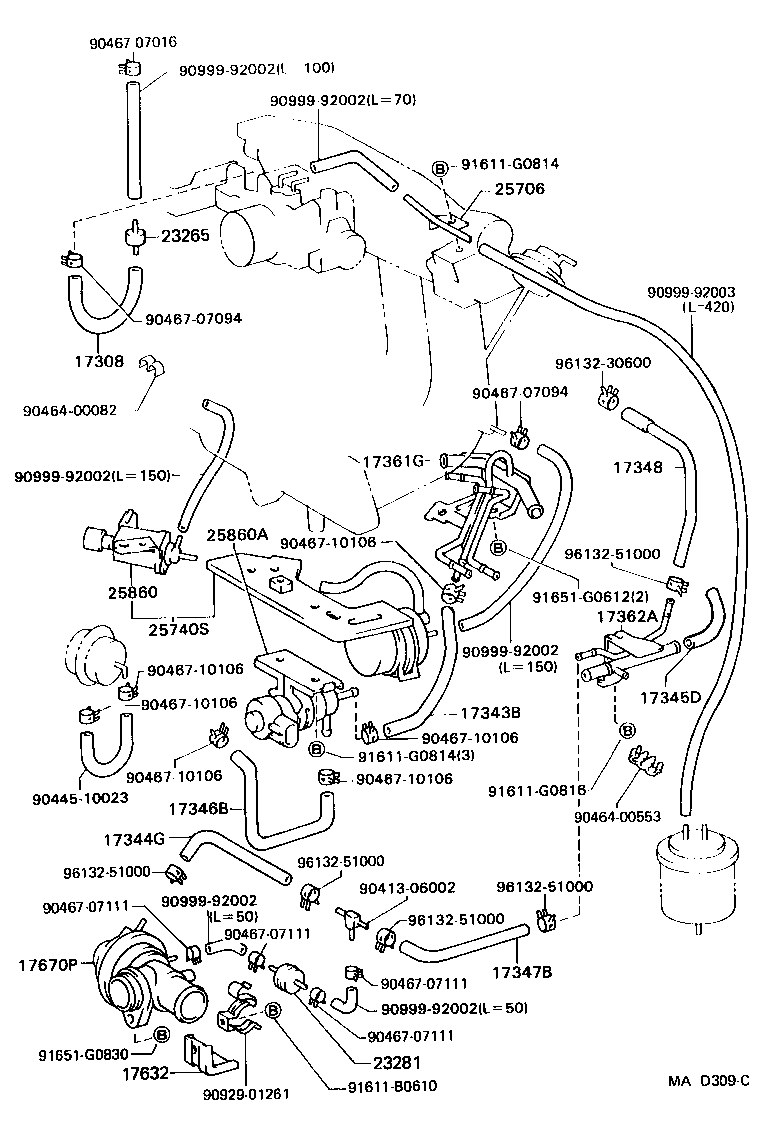

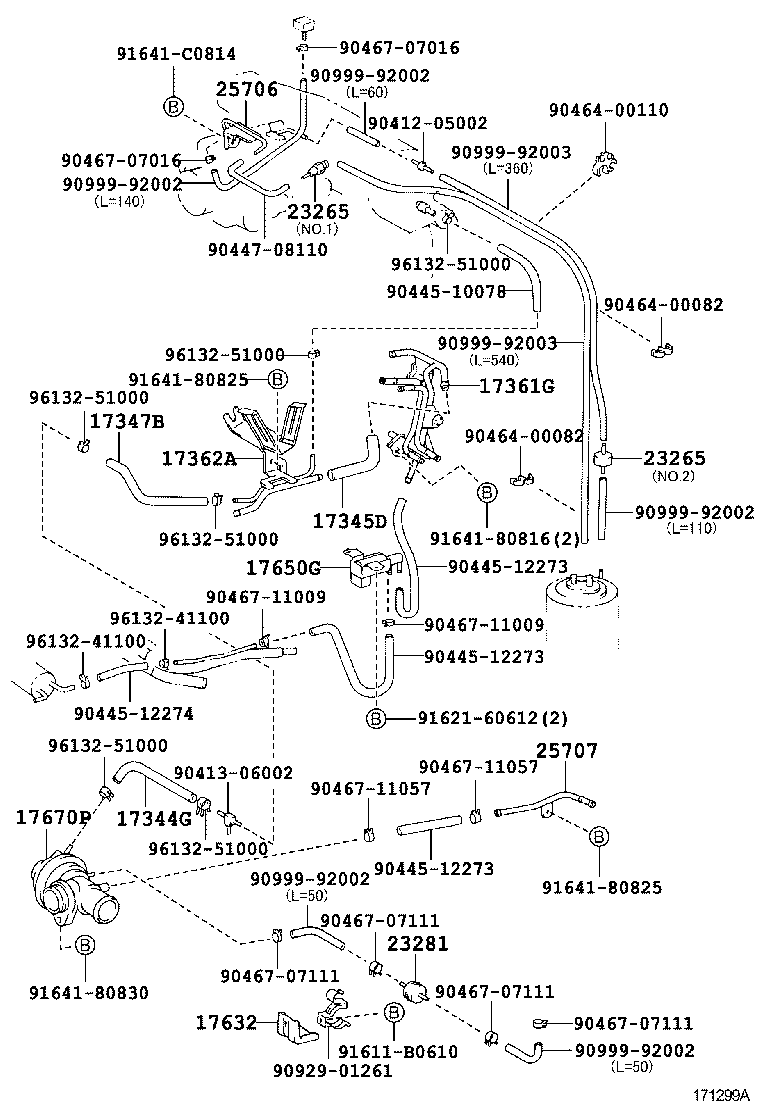

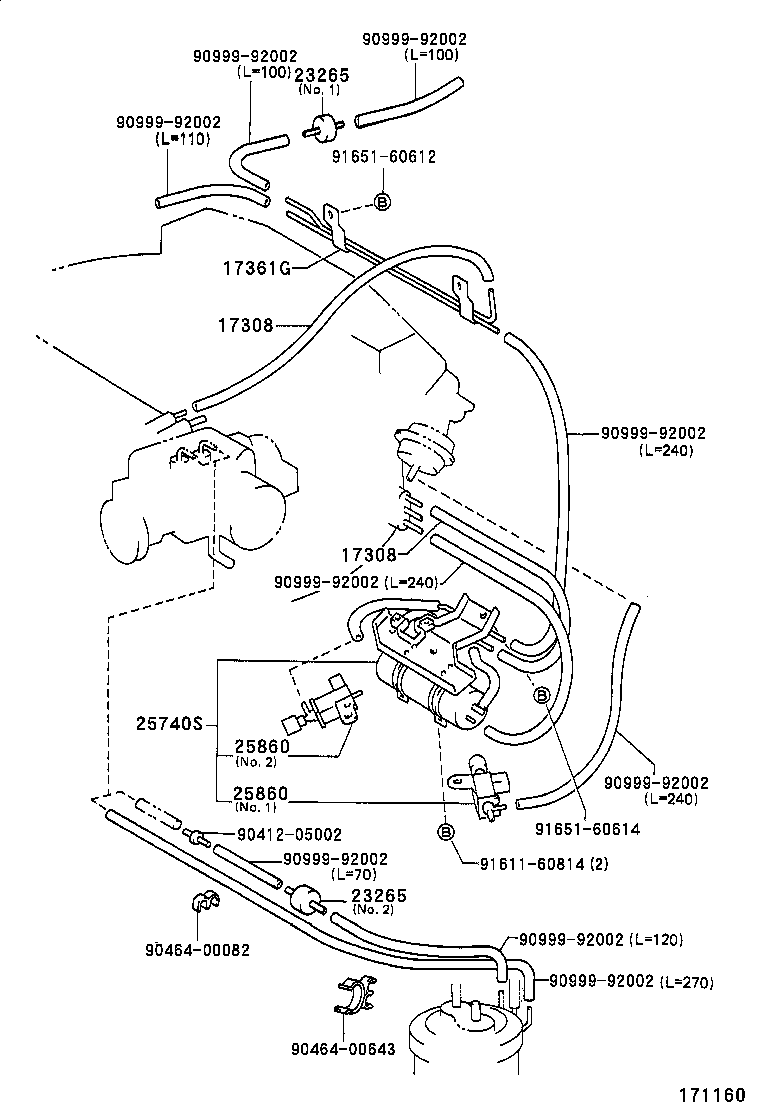

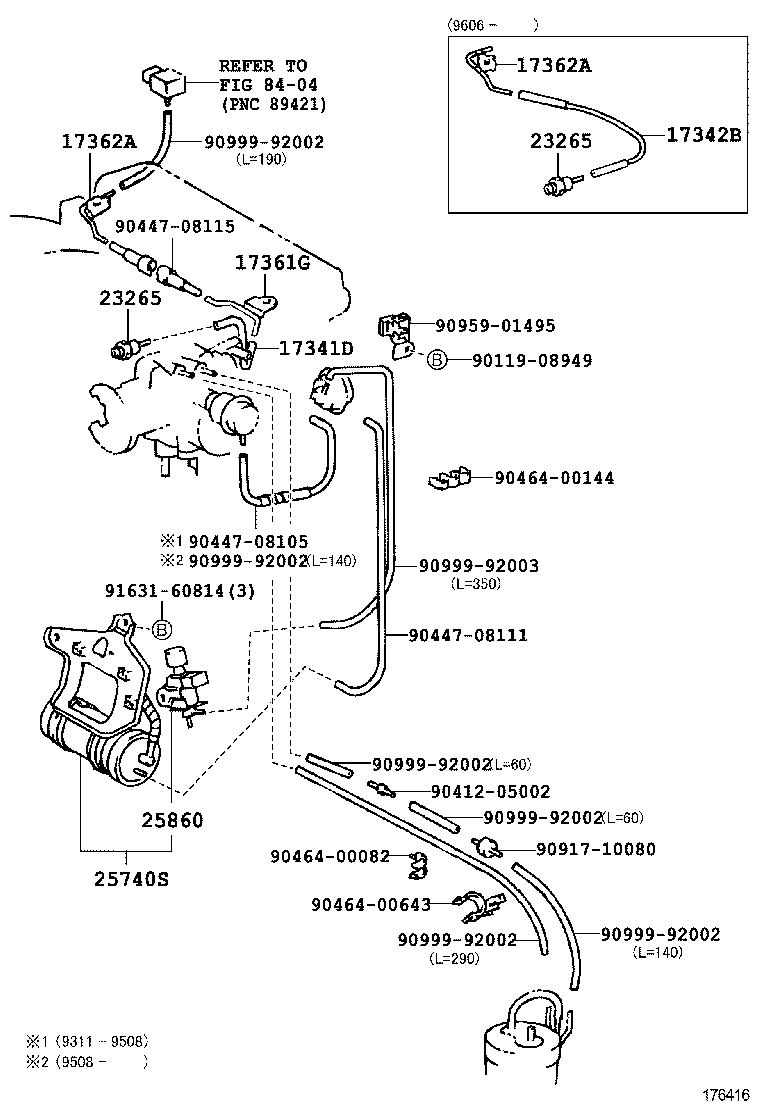

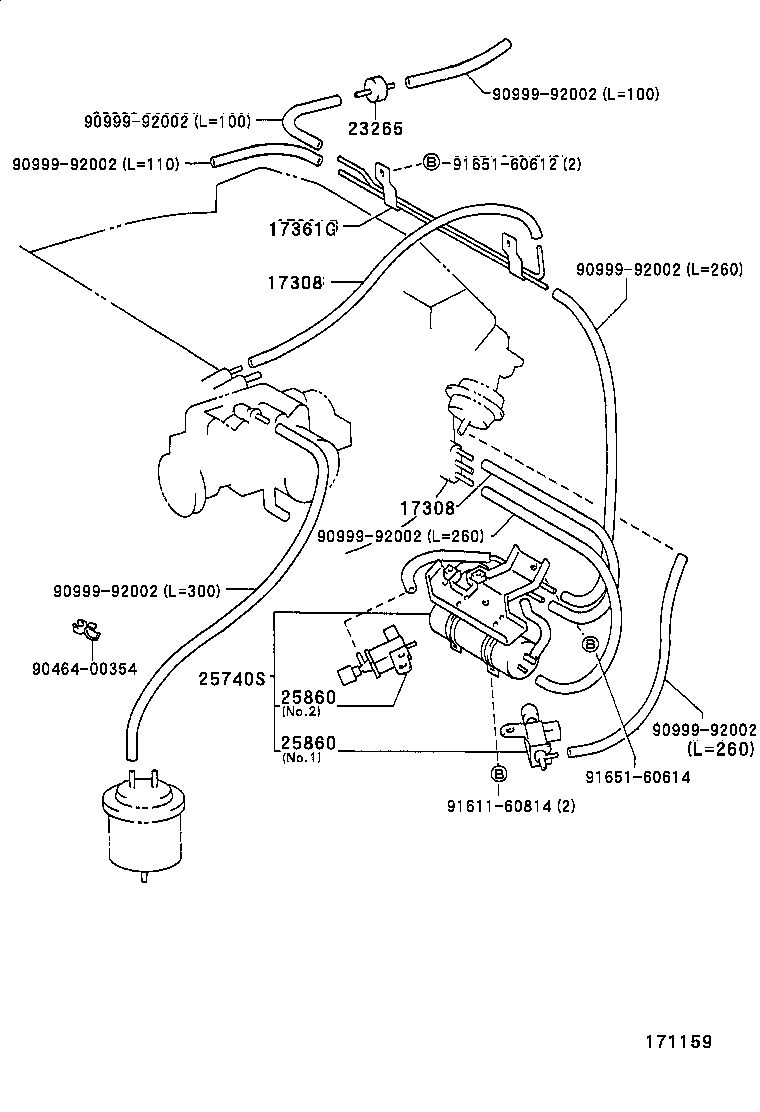

Figure 170020 170020 1989-12 → — Figure 171159 171159 1989-12 → 1991-12 Figure 171160 171160 1991-12 → 1993-11 Figure 176416 176416 1993-11 → 1997-12 Figure 171434 171434 1997-12 → — Figure MAD309C MAD309C 1989-12 → 1991-12 Figure MAF286C MAF286C 1991-12 → 1993-11 Figure 171299A 171299A 1993-11 → —

Part groups

PNCDescription
17308 Hose Sub-assy, Vacuum(FOR IDLE-UP)
17341D Hose, NO.1(FOR IDLE-UP)
17342B Hose, NO.2(FOR IDLE-UP)
17343B Hose, NO.3(FOR IDLE-UP)
17344G Hose, Air, NO.4
17345D Hose, Air, NO.5
17346B Hose, Air, NO.6
17347B Hose, Air, NO.7
17348 Hose, Air, NO.8
17361G Tube, Air(FOR IDLE-UP)
17362A Tube, Air, NO.2
17632 Cover, Housing
17650G Valve, Duty Vacuum Switching
17670P Valve Assy, Air By-pass
23265 Filter, Gas, NO.1
23281 Valve, Vacuum Transmitting, NO.1
25706 Pipe Sub-assy, Vacuum Transmitting, NO.1
25707 Pipe Sub-assy, Vacuum Transmitting, NO.2
25740S Valve Assy, Air Control(FOR IDLE SPEED CONTROL)
25860 Valve Assy, Vacuum Switching, NO.1
25860A Valve, Vacuum Switching, NO.1
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
