Toyota MR2

1989-12 → 1999-08 · chassis SW20 · catalogue 211120 · Japan

Discontinued model Data version 2000-03
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Brake Tube & Clamp

72 part groups · 12 illustrations

Illustrations

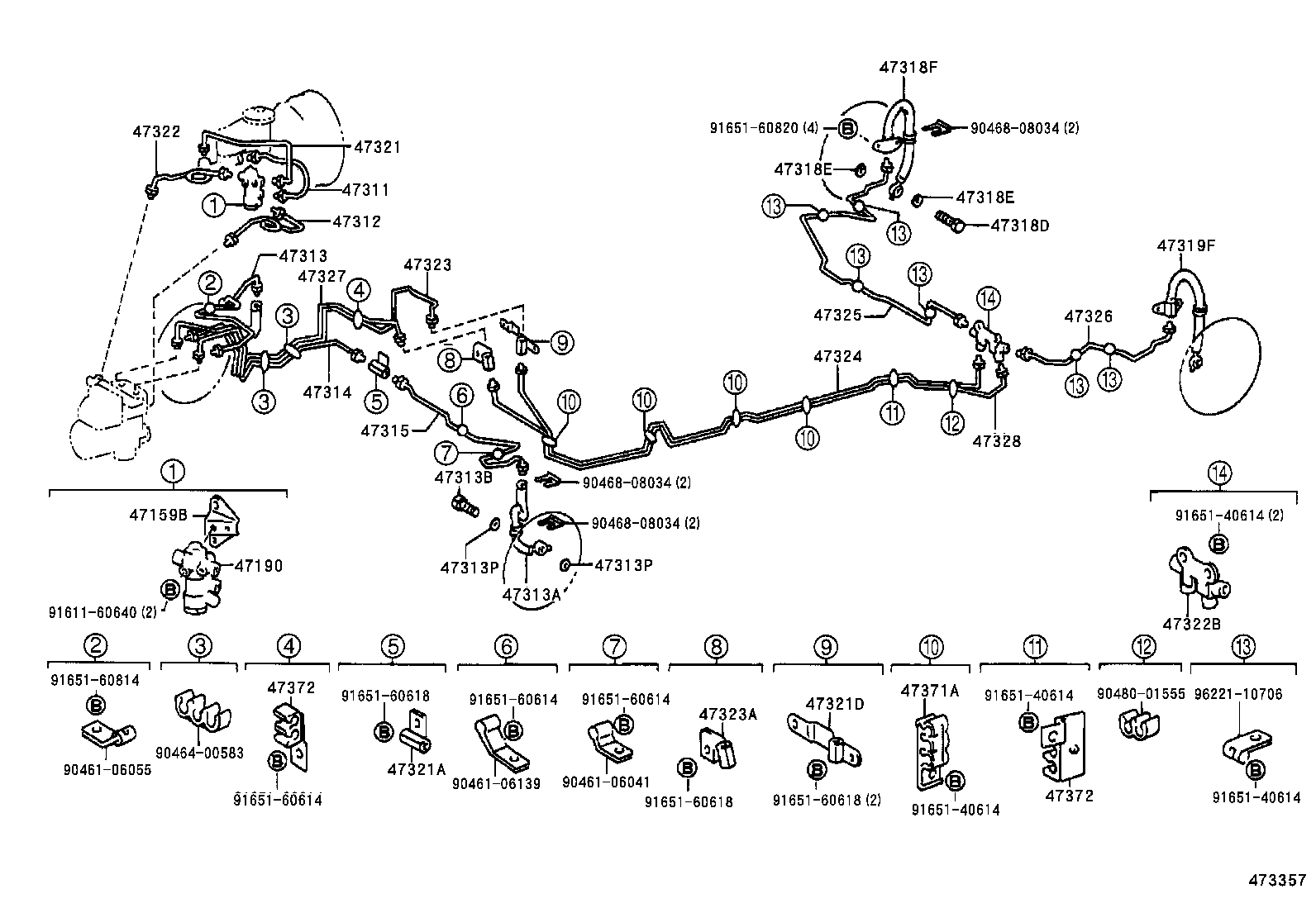

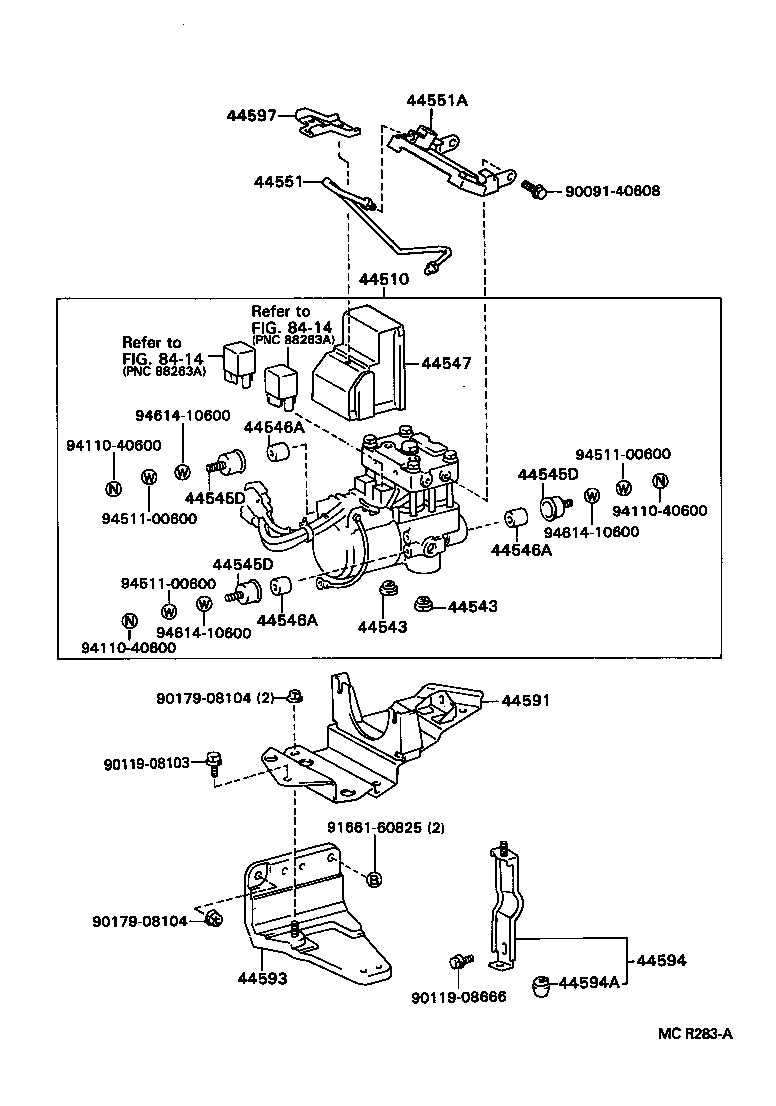

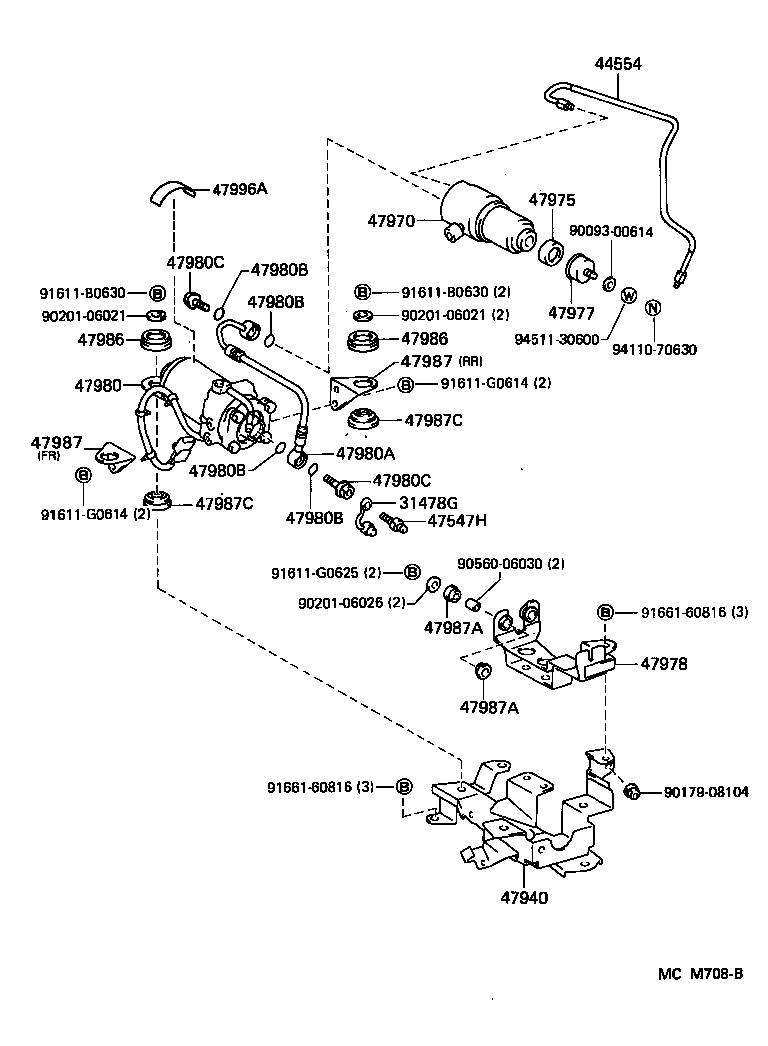

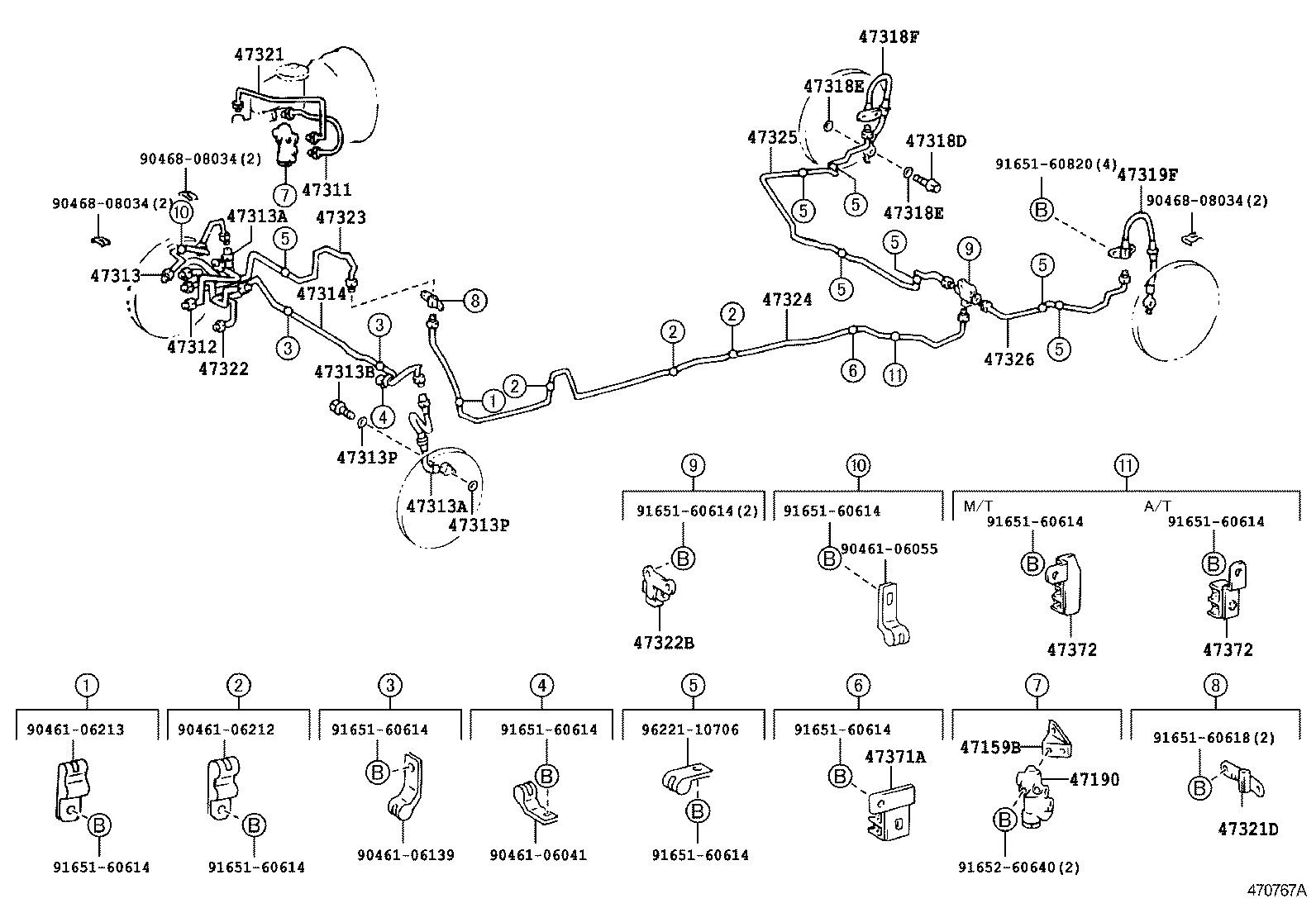

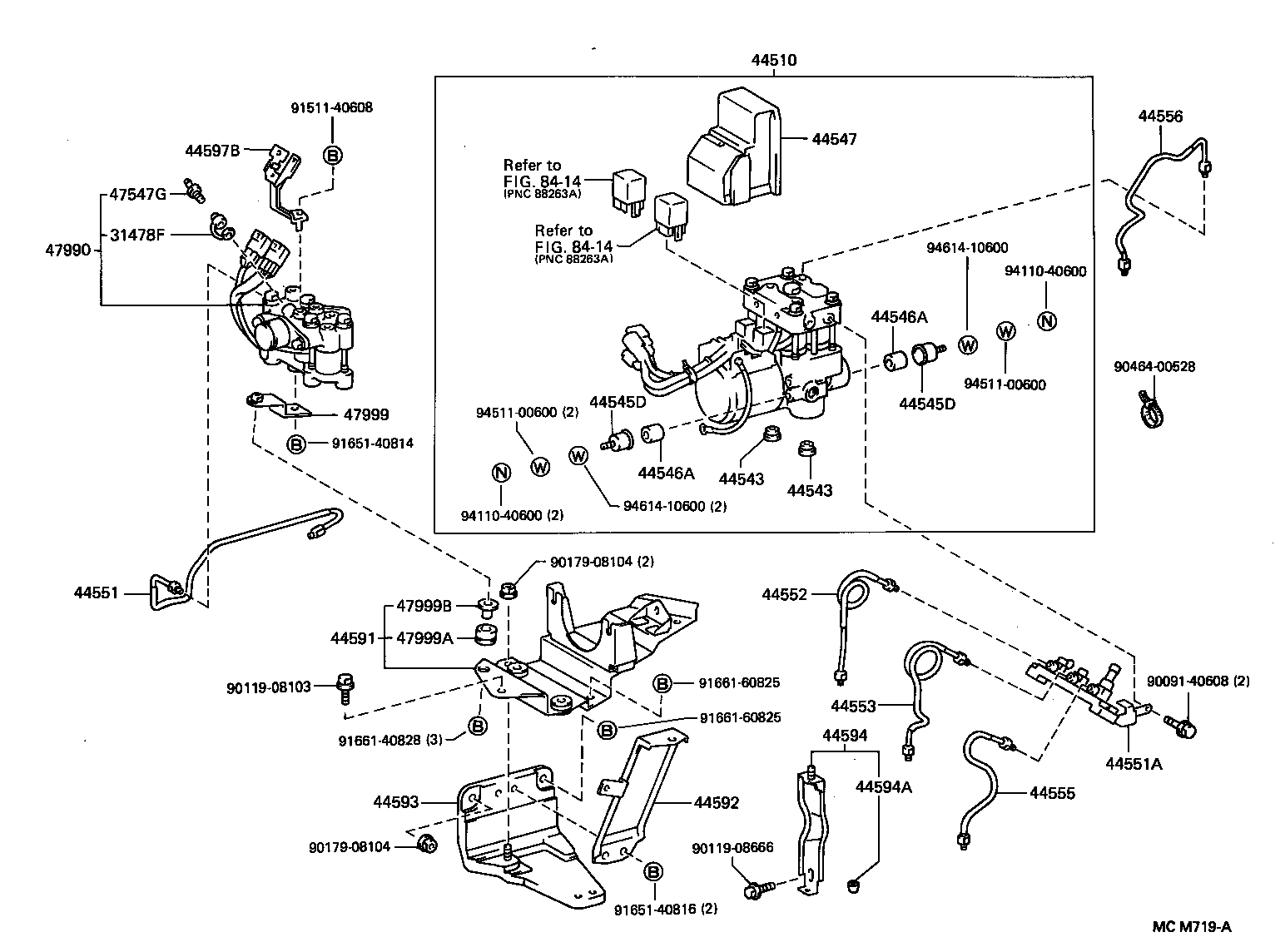

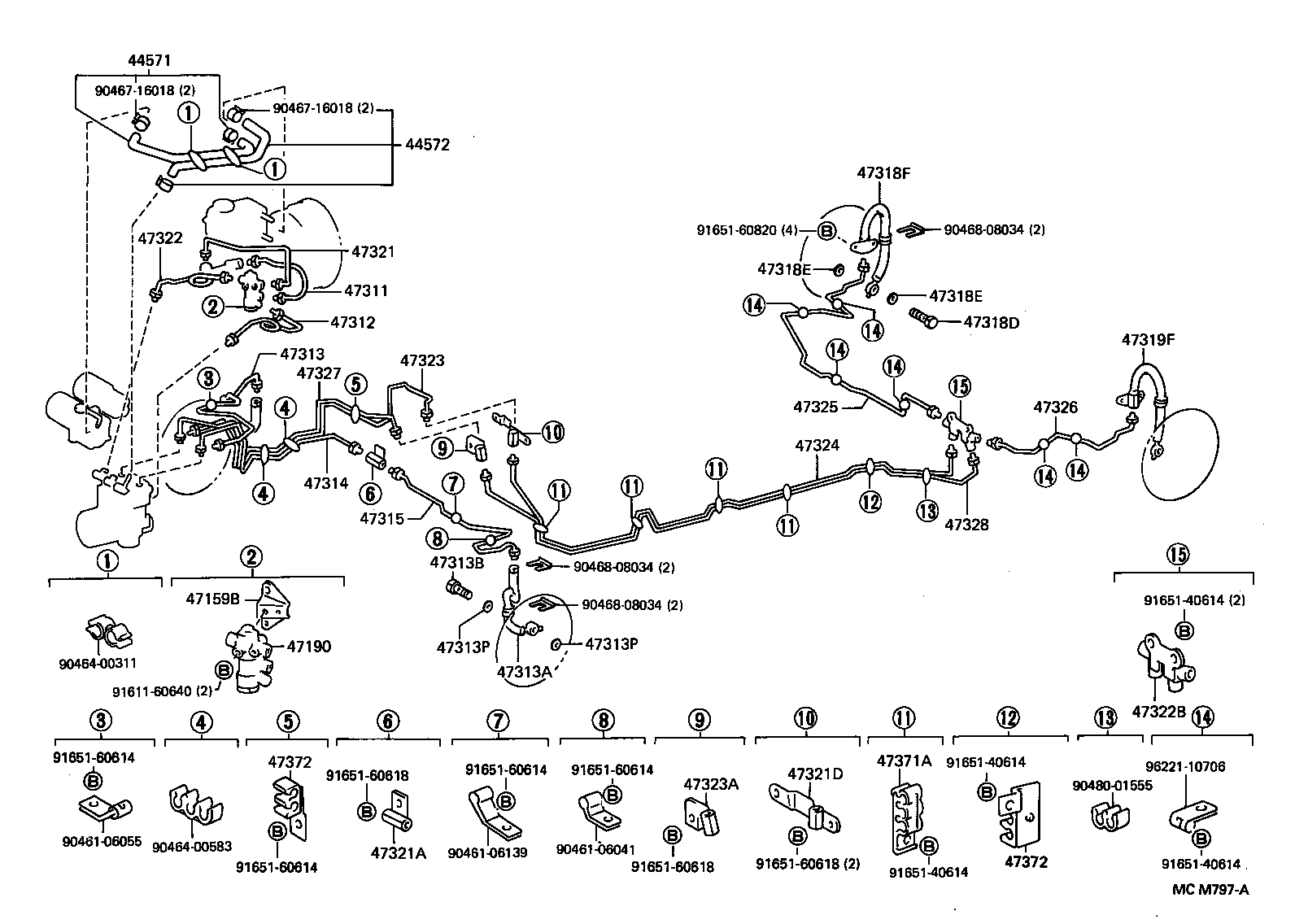

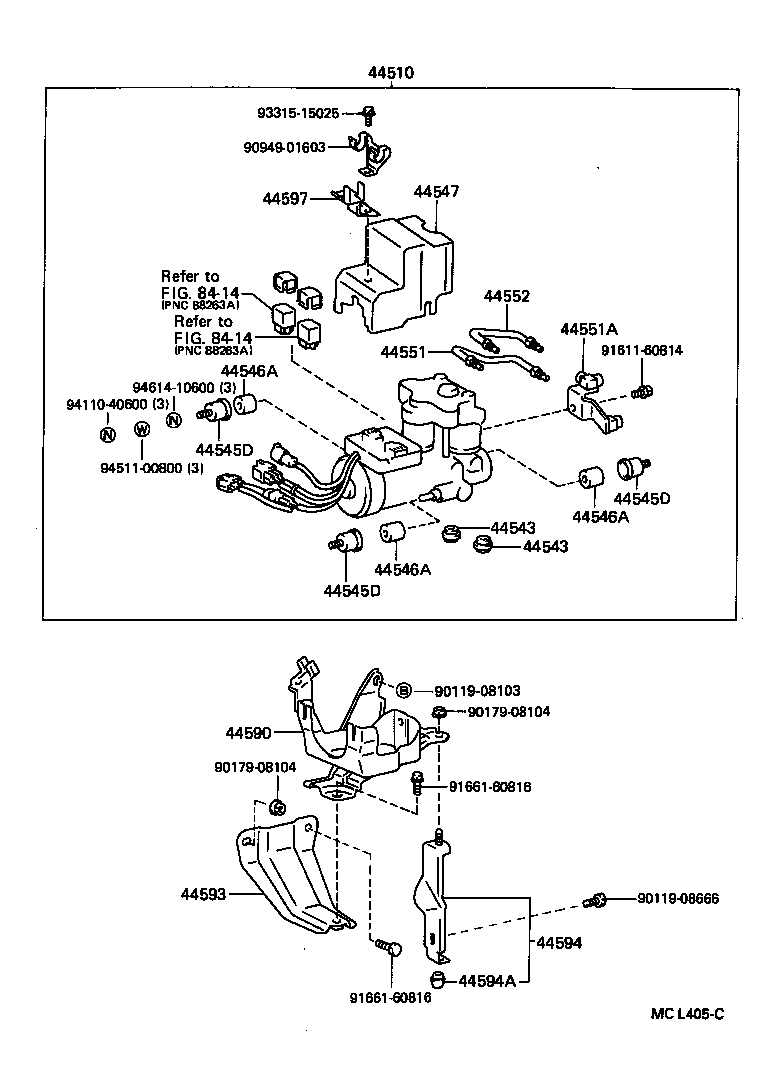

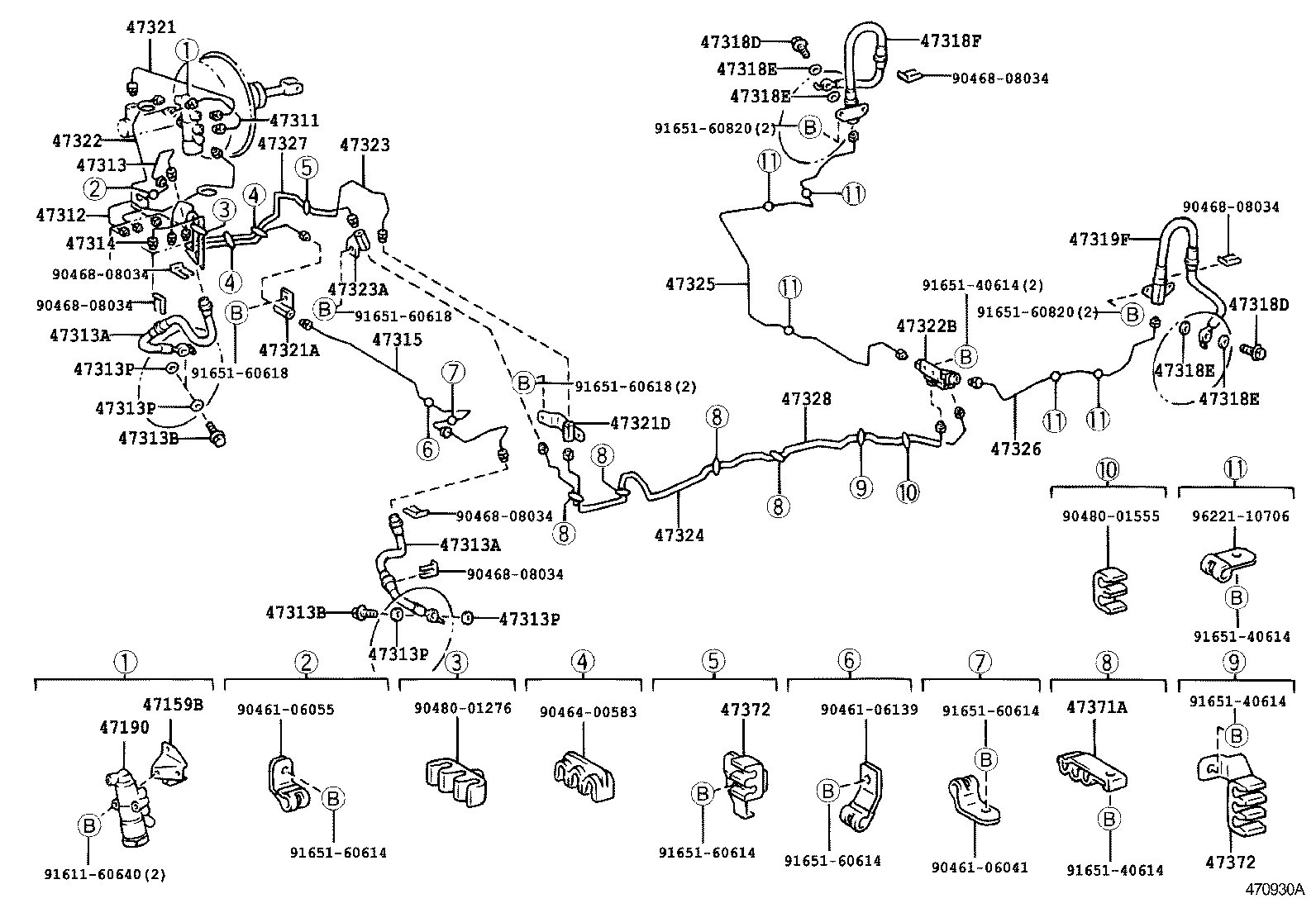

Figure 470766 470766 1989-12 → 1996-06 Figure 470767A 470767A 1989-12 → 1996-06 Figure 473357 473357 1996-06 → 1997-12 Figure MCL405C MCL405C 1989-12 → 1993-11 Figure MCL405C MCL405C 1993-11 → 1996-06 Figure MCR283A MCR283A 1993-11 → 1996-06 Figure MCR283A MCR283A 1996-06 → 1997-12 Figure MCM797A MCM797A 1991-12 → 1997-12 Figure MCM708B MCM708B 1991-12 → 1997-12 Figure MCM719A MCM719A 1991-12 → 1997-12 Figure 470930A 470930A 1997-12 → — Figure 470931 470931 1997-12 → —

Part groups

PNCDescription
31478F Cap, Bleeder Plug(FOR BRAKE TRACTION ACTUATOR)
31478G Cap, Bleeder Plug(FOR BRAKE TRACTION ACCUMULATOR)
44510 Actuator Assy, Brake
44543 Cap, Rubber
44545D Holder, Brake Actuator Bolt
44546A Cushion, Brake Actuator Bolt
44547 Case, Relay(FOR BRAKE ACTUATOR)
44551 Tube, Brake Actuator, NO.1
44551A Way, NO.1(FOR BRAKE ACTUATOR)
44552 Tube, Brake Actuator, NO.2
44553 Tube, Brake Actuator, NO.3
44554 Tube, Brake Actuator, NO.4
44555 Tube, Brake Actuator, NO.5
44556 Tube, Brake Actuator, NO.6
44571 Hose, Brake Actuator
44572 Hose, Brake Actuator, NO.2
44590 Bracket Assy, Brake Actuator
44591 Bracket, Brake Actuator, NO.1
44592 Bracket, Brake Actuator, NO.2
44593 Bracket, Brake Actuator, NO.3
44594 Bracket, Brake Actuator, NO.4
44594A Cushion(FOR BRAKE ACTUATOR BRACKET NO.4)
44597 Clamp, Brake Actuator Connector, NO.1
44597B Clamp, Brake Traction Actuator Connector
47159B Bracket, Proportioning & By-pass Valve
47190 Valve Assy, Proportioning & By-pass
47311 Tube, Front Brake, NO.1
47312 Tube, Front Brake, NO.2
47313 Tube, Front Brake, NO.3
47313A Hose, Flexible, NO.1(FOR FRONT)
47313B Bolt, Union(FOR FRONT FLEXIBLE HOSE)
47313P Gasket(FOR FRONT FLEXIBLE HOSE)
47314 Tube, Front Brake, NO.4
47315 Tube, Front Brake, NO.5
47318D Bolt, Union(FOR REAR FLEXIBLE HOSE)
47318E Gasket(FOR REAR FLEXIBLE HOSE)
47318F Hose, Flexible(FOR REAR RH)
47319F Hose, Flexible(FOR REAR LH)
47321 Tube, Rear Brake, NO.1
47321A Way(FOR REAR BRAKE TUBE)
47321D Way, NO.1(FOR REAR BRAKE TUBE)
47322 Tube, Rear Brake, NO.2
47322B Way, NO.2(FOR REAR BRAKE TUBE)
47323 Tube, Rear Brake, NO.3
47323A Way, NO.3(FOR REAR BRAKE TUBE)
47324 Tube, Rear Brake, NO.4
47325 Tube, Rear Brake, NO.5
47326 Tube, Rear Brake, NO.6
47327 Tube, Rear Brake, NO.7
47328 Tube, Rear Brake, NO.8
47371A Clamp, Brake Tube, NO.1
47372 Clamp, Brake Tube, NO.2
47547G Plug, Bleeder(FOR BRAKE TRACTION ACTUATOR)
47547H Plug, Bleeder(FOR BRAKE TRACTION ACCUMULATOR)
47940 Bracket Assy, Brake Traction
47970 Accumulator Assy, Brake Traction
47975 Bush, Brake Traction Accumulator
47977 Bracket, Brake Traction Accumulator, NO.1
47978 Bracket, Brake Traction Accumulator , NO.2
47980 Pump Assy, Brake Traction
47980A Hose, Pressure(FOR BRAKE TRACTION PUMP)
47980B Ring, O(FOR BRAKE TRACTION PUMP PRESSURE HOSE)
47980C Bolt, Union(FOR BRAKE TRACTION PUMP PRESSURE HOSE)
47986 Cover, Brake Traction Pump, NO.2
47987 Bracket, Brake Traction Pump, NO.1
47987A Bush, NO.1(FOR BRAKE TRACTION PUMP BRACKET)
47987C Bush, NO.2(FOR BRAKE TRACTION PUMP BRACKET)
47990 Actuator Assy, Brake Traction
47996A Label, Brake Bleed Notice
47999 Bracket, Brake Traction Actuator, NO.2
47999A Bush(FOR BRAKE TRACTION ACTUATOR BRACKET)
47999B Spacer(FOR BRAKE TRACTION ACTUATOR BRACKET)
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
