Toyota MR2

1989-12 → 1999-08 · chassis SW20 · catalogue 211120 · Japan

Discontinued model Data version 2000-03
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Roof Panel & Back Window Glass

36 part groups · 3 illustrations

Illustrations

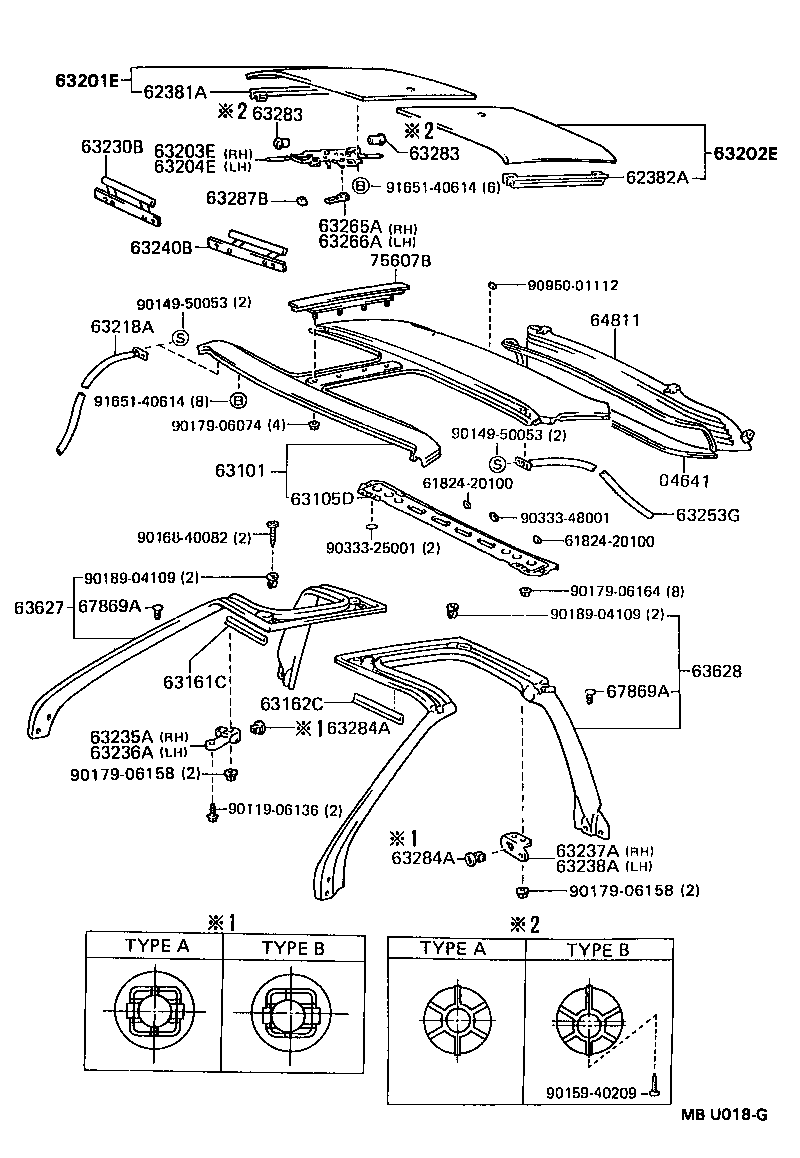

Figure MBU017C MBU017C 1989-12 → — Figure MBU018G MBU018G 1989-12 → — Figure MBW118 MBW118 1989-12 → —

Part groups

PNCDescription
04641 Dam Kit, Back Window Glass
62381A Weatherstrip, Roof Side Rail, RH
62382A Weatherstrip, Roof Side Rail, LH
63101 Panel Sub-assy, Roof
63102A Panel Sub-assy, Windshield Header
63105D Frame Sub-assy, Back Window, Upper
63111 Panel, Roof
63141G Reinforcement, Roof Panel, NO.1
63161C Protector, Windshield Header, RH
63162C Protector, Windshield Header, LH
63201E Glass Sub-assy, Removable Roof, RH
63202E Glass Sub-assy, Removable Roof, LH
63203E Lock Sub-assy, Removable Roof, RH
63204E Lock Sub-assy, Removable Roof, LH
63218A Hose(FOR SLIDING ROOF OR REMOVABLE ROOF DRAIN)
63230B Panel Assy, Roof Wind Deflector
63235A Plate, Removable Roof Female, Front RH
63236A Plate, Removable Roof Female, Front LH
63237A Plate, Removable Roof Female, Rear RH
63238A Plate, Removable Roof Female, Rear LH
63240B Panel Assy, Roof Wind Deflector, LH
63253G Hose, Removable Roof Drain, Rear RH
63265A Lever, Removable Roof Lock, RH
63266A Lever, Removable Roof Lock, LH
63283 Guide, Removable Roof Lock
63284A Guide, Removable Roof Female
63287B Knob, Removable Roof Lock
63627 Weatherstrip, Removable Roof, RH
63628 Weatherstrip, Removable Roof, LH
64811 Glass, Back Window
67869A Clip(FOR REMOVABLE ROOF WEATHERSTRIP)
75607B Moulding Sub-assy, Roof Top
76103 Belt Sub-assy, Roof Glass Bag, Inner
76104 Belt Sub-assy, Roof Glass Bag, Outer
76130 Bag Assy, Roof Glass, RH
76140 Bag Assy, Roof Glass, LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
