Toyota MR2
1989-12 → 1999-08 · chassis SW20 · catalogue 211120 · Japan
Discontinued model
Data version 2000-03

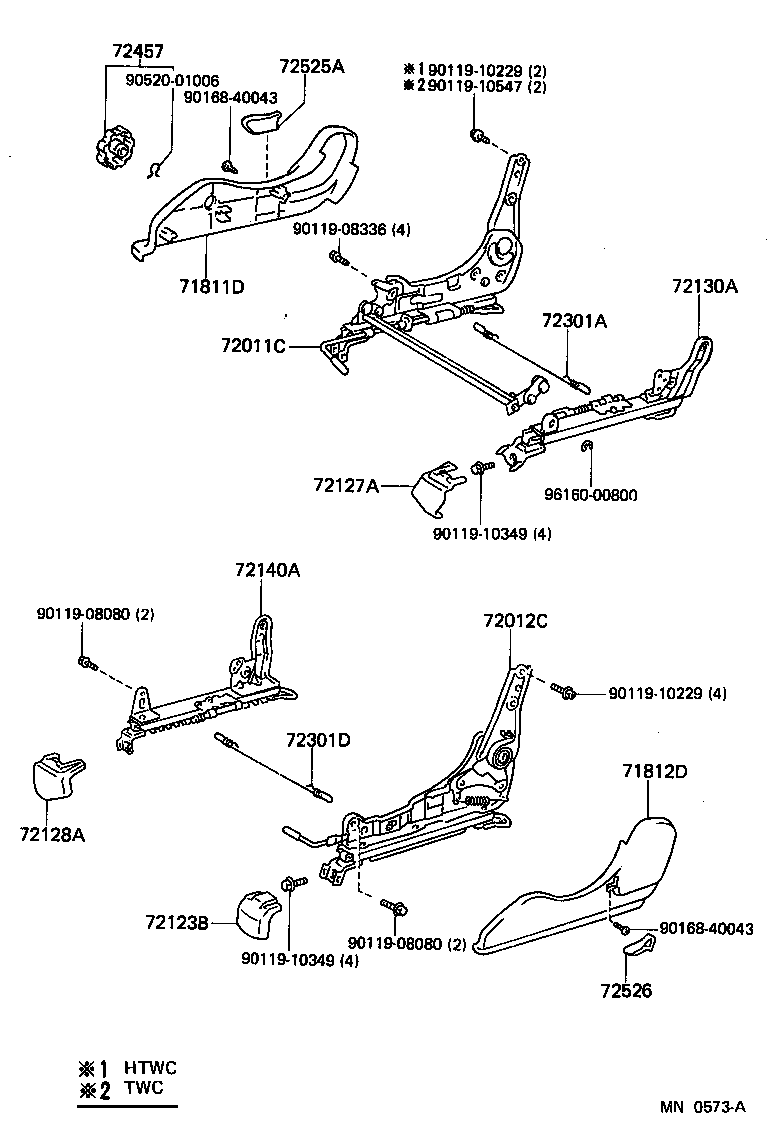

Front Seat & Seat Track
68 part groups · 5 illustrations
Part groups
| PNC | Description |
|---|---|
| 71071S | Cover, Front Seat Cushion, RH(FOR SEPARATE TYPE) |
| 71072S | Cover, Front Seat Cushion, LH(FOR SEPARATE TYPE) |
| 71073S | Cover, Front Seatback, RH(FOR SEPARATE TYPE) |
| 71074S | Cover, Front Seatback, LH(FOR SEPARATE TYPE) |
| 71410C | Clip(FOR FRONT SEAT CUSHION) |
| 71410S | Cushion Assy, Front Seat, RH(FOR SEPARATE TYPE) |
| 71420S | Cushion Assy, Front Seat, LH (FOR SEPARATE TYPE) |
| 71430S | Back Assy, Front Seat, RH(FOR SEPARATE TYPE) |
| 71440S | Back Assy, Front Seat, LH(FOR SEPARATE TYPE) |
| 71505 | Pad Sub-assy, Front Seatback W/Frame, RH |
| 71506 | Pad Sub-assy, Front Seatback W/Frame, LH |
| 71511S | Pad, Front Seat Cushion, RH(FOR SEPARATE TYPE) |
| 71512S | Pad, Front Seat Cushion, LH (FOR SEPARATE TYPE) |
| 71537A | Protector, Front Seat Cushion |
| 71553B | Pad, Front Seatback, B |
| 71553C | Pad, Front Seatback, C |
| 71598A | Plate, Seat Cover, RH |
| 71598B | Plate, Seat Cover, LH |
| 71610S | Spring Assy, Front Seat Cushion, RH(FOR SEPARATE TYPE) |
| 71620S | Spring Assy, Front Seat Cushion, LH(FOR SEPARATE TYPE) |
| 71811C | Cover, Reclining Adjuster, RH |
| 71811D | Shield, Front Seat Cushion, RH |
| 71812C | Cover, Reclining Adjuster, LH |
| 71812D | Shield, Front Seat Cushion, LH |
| 71831D | Cover, Front Seat Hinge, RH |
| 71832D | Cover, Front Seat Hinge, LH |
| 71873 | Shield, Front Seat Cushion, Lower RH |
| 71874 | Shield, Front Seat Cushion, Lower LH |
| 71875A | Cover, Reclining Adjuster Inside, RH |
| 71876 | Cover, Reclining Adjuster Inside, LH |
| 71910A | Headrest Assy, Front Seat |
| 71931 | Support, Front Seat Headrest |
| 72011C | Adjuster Sub-assy, Front Seat, RH |
| 72012C | Adjuster Sub-assy, Front Seat, LH |
| 72110A | Track Assy, Front Seat, Outer RH |
| 72120 | Track Assy, Front Seat, Outer LH |
| 72123B | Cover, Seat Track Bracket, Outer Front |
| 72127A | Cover, Seat Track Bracket, Inner Front RH |
| 72128A | Cover, Seat Track Bracket, Inner Front LH |
| 72130A | Track Assy, Front Seat, Inner RH |
| 72131 | Bracket, Front Outer Seat Track Upper Rail, RH |
| 72132 | Bracket, Front Outer Seat Track Upper Rail, LH |
| 72140A | Track Assy, Front Seat,Inner LH |
| 72257 | Striker, Front Seat Lock |
| 72301A | Wire Sub-assy, Seat Track Equalizing, RH |
| 72301D | Wire Sub-assy, Seat Track Equalizing, LH |
| 72352 | Plate, Side Support Handle Shaft Set |
| 72356 | Nut, Side Support, RH |
| 72457 | Knob, Vertical Seat Adjuster |
| 72457C | Knob, Side Support Adjuster |
| 72525A | Handle, Reclining Adjuster Release, RH |
| 72525B | Handle, Reclining Adjuster Release, RH |
| 72526 | Handle, Reclining Adjuster Release, LH |
| 72526A | Handle, Reclining Adjuster Release, LH |
| 72551B | Cover, Reclining Hinge, RH |
| 72552B | Cover, Reclining Hinge, LH |
| 72568 | Plate, Reclining Bolt Lock |
| 72591B | Lever, Reclining Remote Control, RH |
| 72591C | Lever, Reclining Remote Control, LH |
| 72593B | Knob, Reclining Remote Control Lever, RH |
| 72594A | Knob, Reclining Remote Control Lever, LH |
| 72597A | Bezel, Reclining Remote Control Lever, RH |
| 72598 | Bezel, Reclining Remote Control Lever, LH |
| 72750D | Adjuster Assy, Lumbar Support, RH |
| 72791 | Lever, Lumbar Support |
| 72791A | Ring, Shaft Snap(FOR LUMBER SUPPORT LEVER) |
| 72795 | Pad, Lumbar Support |
| 73173B | Cover, Front Seat Belt Hole |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
