Toyota MR2
1989-12 → 1999-08 · chassis SW20 · catalogue 211120 · Japan
Discontinued model
Data version 2000-03
Overdrive & Electronic Controlled Transmission

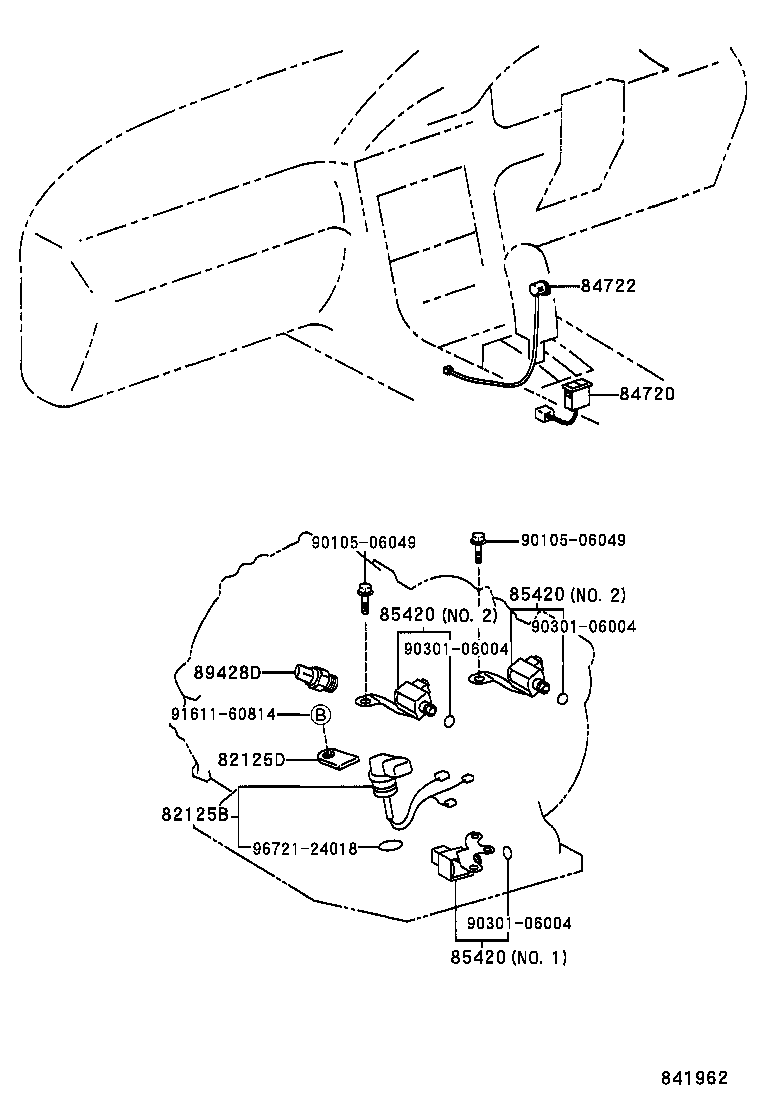

8 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 82125B | Wire, Transmission |
| 82125D | Plate, Transmission Wire Lock |
| 84720 | Switch Assy, Pattern Select |
| 84722 | Switch, Transmission Control |
| 85420 | Solenoid Assy, Transmission |
| 89411C | Sensor, Speed |
| 89414 | Rotor, Sensor |
| 89428D | Switch, Temperature, NO.2 |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
