Toyota MR2
1989-12 → 1999-08 · chassis SW20 · catalogue 211120 · Japan
Discontinued model
Data version 2000-03
Telephone & Mayday

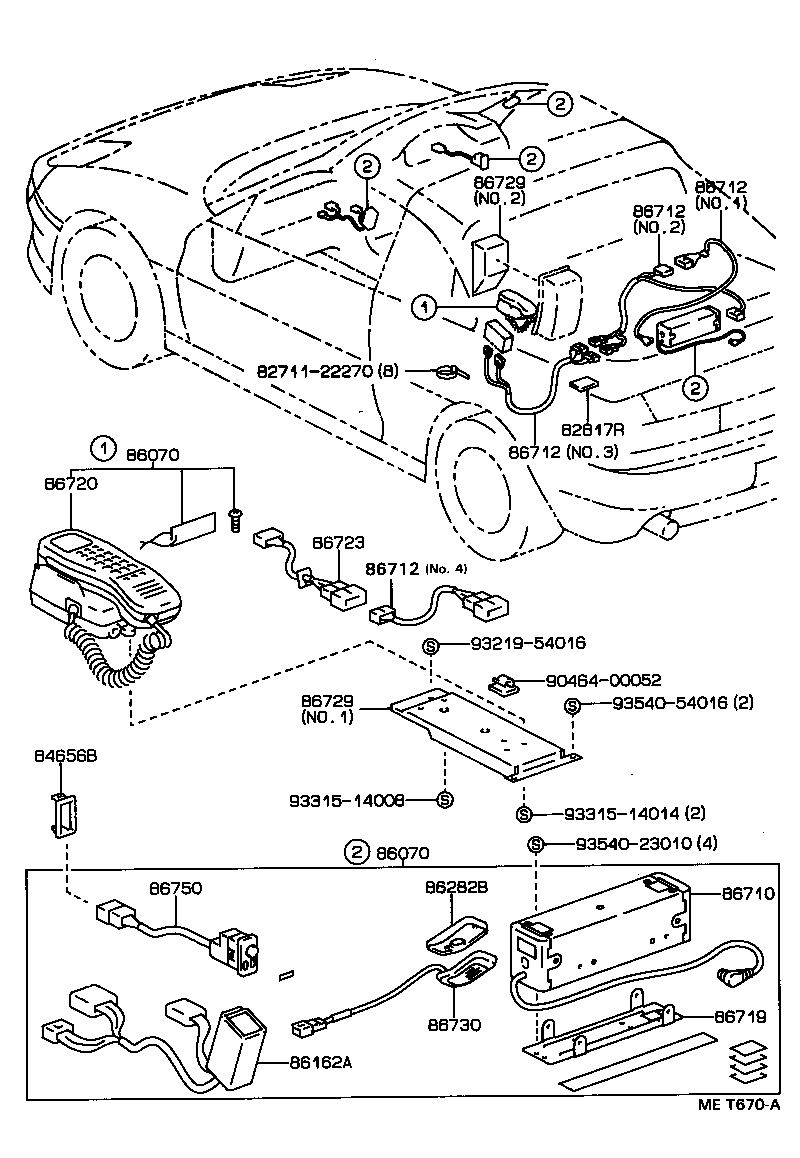

13 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 82817R | Protector, Wiring Harness, NO.16 |
| 84656B | Bezel, Switch |
| 86070 | Mobilephone & Accessory Assy |
| 86162A | Relay, Speaker |
| 86282B | Bracket, Microphone |
| 86710 | Computer Assy, Telephone |
| 86712 | Wire, Telephone |
| 86719 | Bracket, Telephone |
| 86720 | Mobilephone Assy |
| 86723 | Wire, Mobilephone |
| 86729 | Bracket, Mobilephone |
| 86730 | Microphone Assy, Telephone |
| 86750 | Switch Assy, Telephone |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
