Toyota MR2

1989-12 → 1999-08 · chassis SW20 · catalogue 211120 · Japan

Discontinued model Data version 2000-03
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Heating & Air Conditioning - Cooler Piping

30 part groups · 7 illustrations

Illustrations

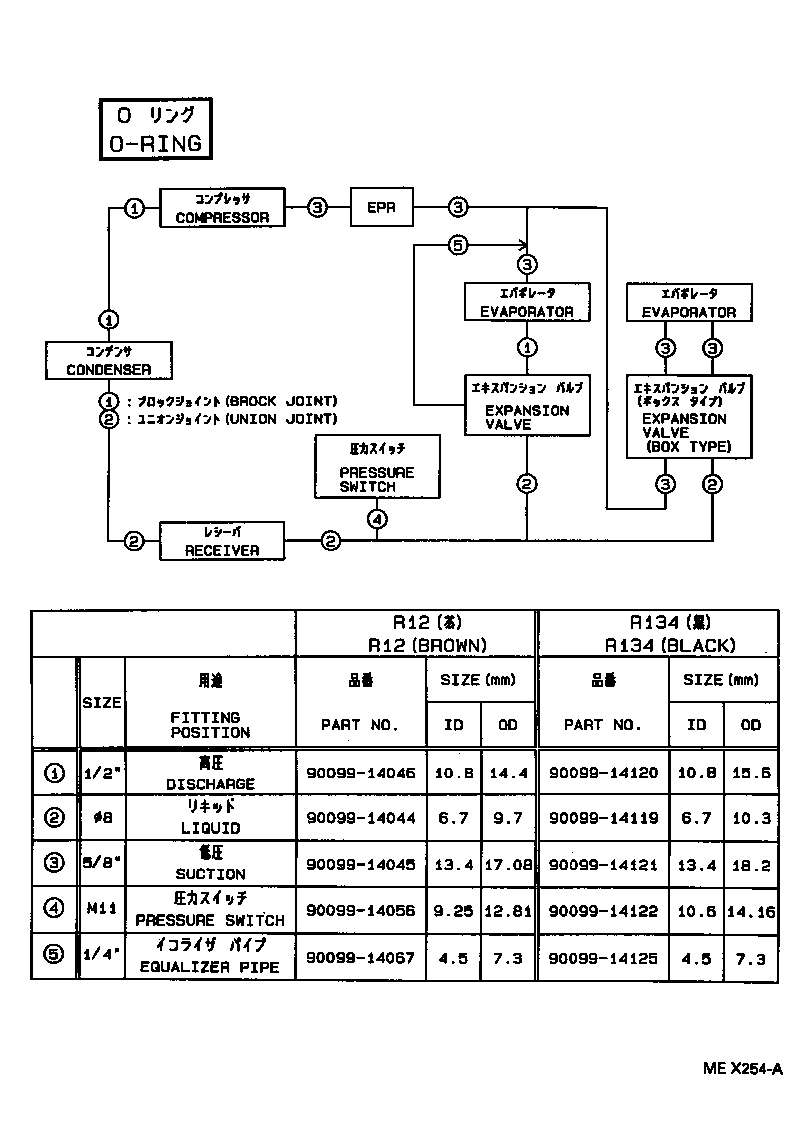

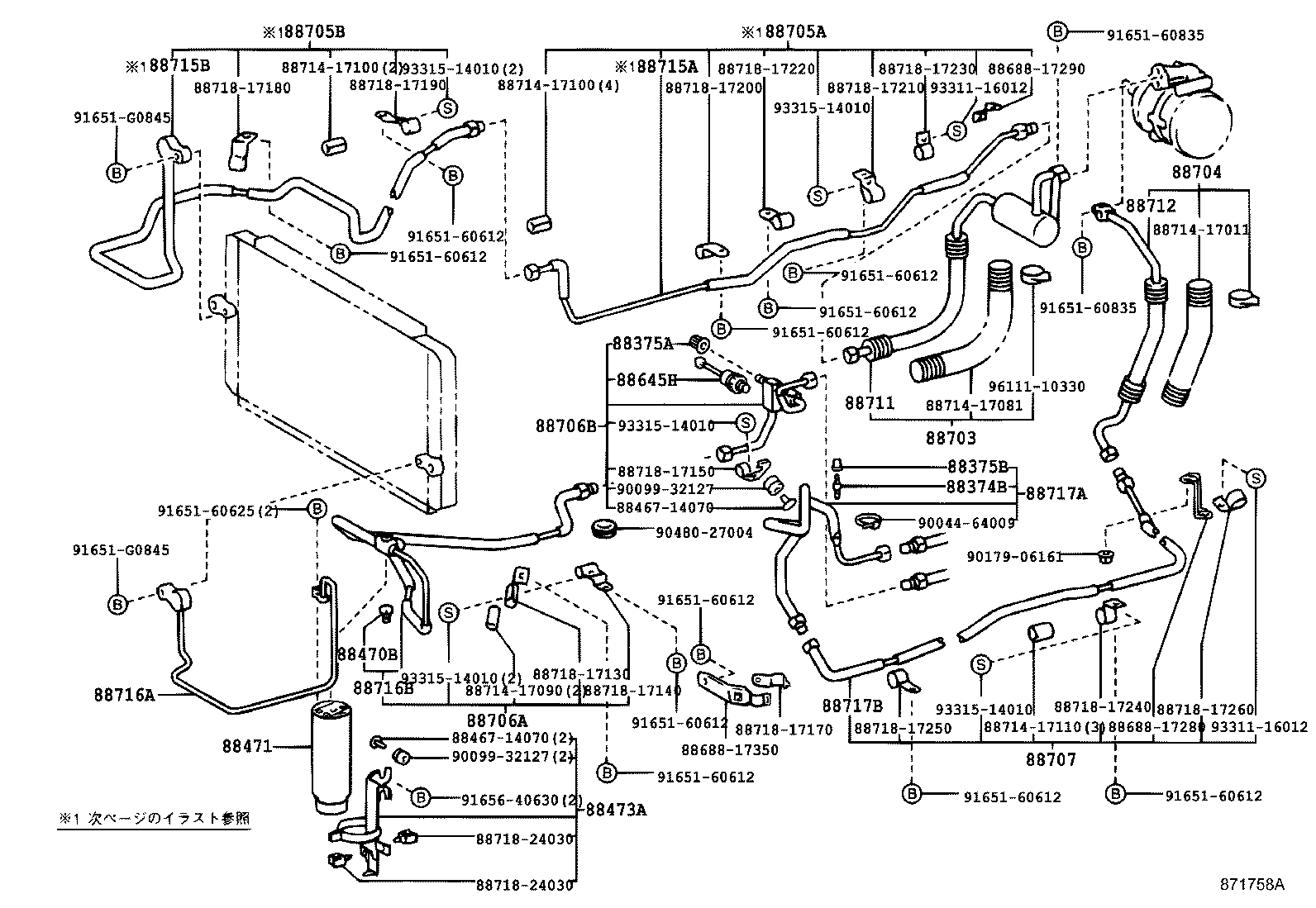

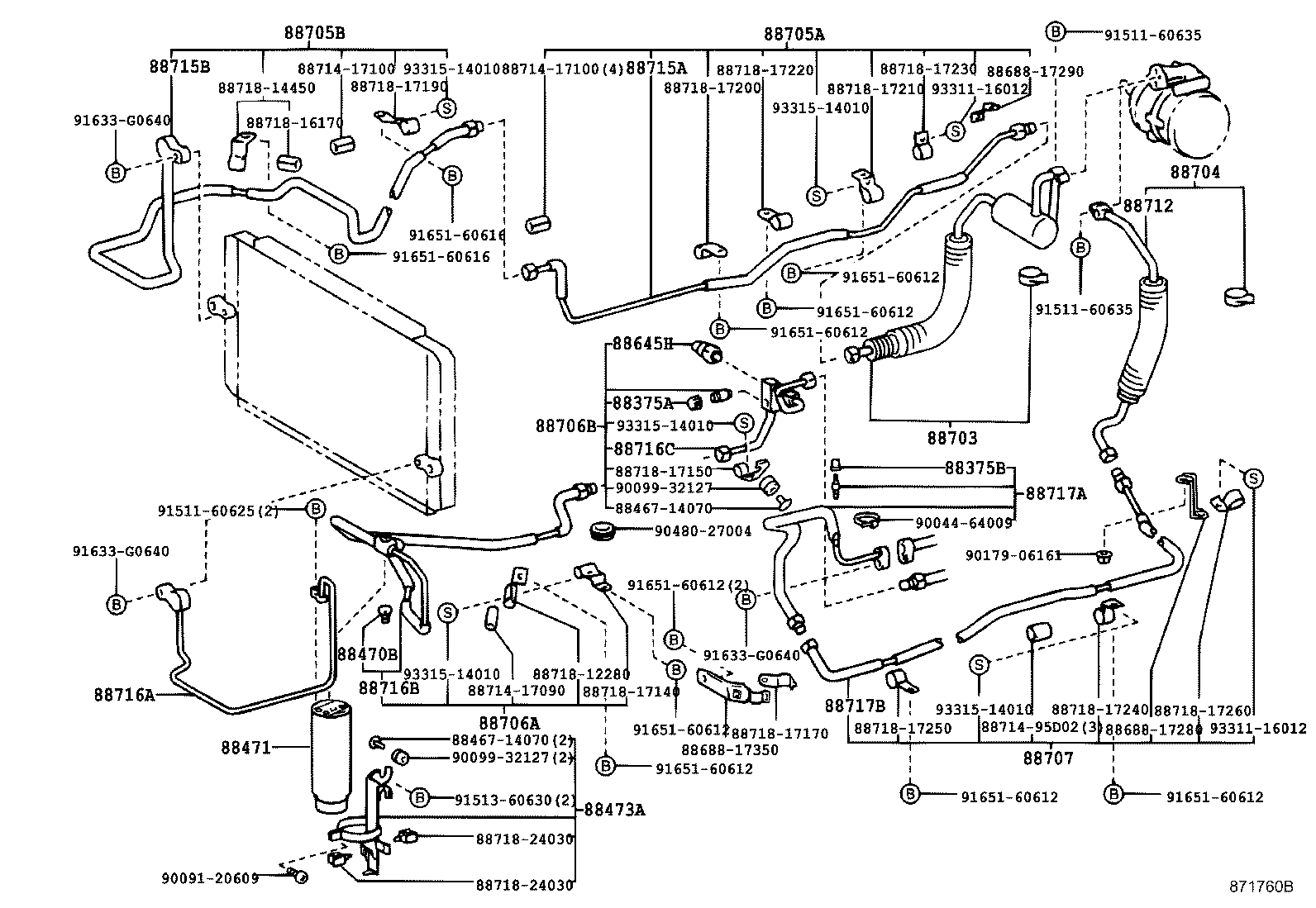

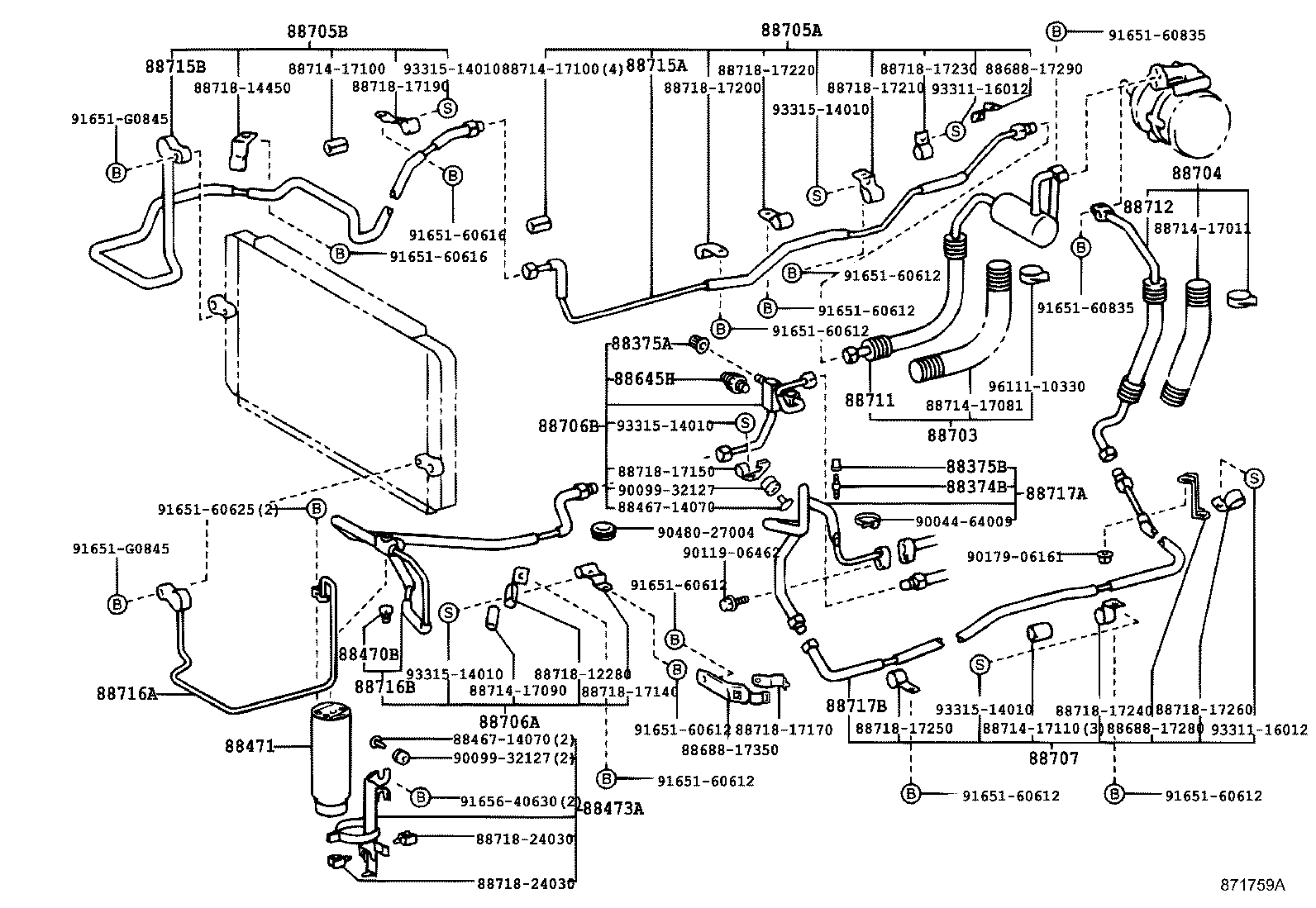

Figure 87D076 87D076 1989-12 → — Figure 871758A 871758A 1989-12 → 1991-12 Figure 871759A 871759A 1991-12 → 1993-11 Figure 871760B 871760B 1993-11 → — Figure 871761 871761 1989-12 → — Figure 871762 871762 1989-12 → — Figure MEX254A MEX254A 1989-12 → —

Part groups

PNCDescription
88374B Valve, Service, NO.1
88375A Cap, Service Valve (FOR COOLER PIPE)
88375B Cap, Service Valve, NO.1
88453 Fan, Cooling (FOR CONDENSER)
88454A Shroud, Fan
88460 Condenser Assy, Cooler
88460B Bracket, Cooler Condenser, NO.1
88470B Bolt, Fuse
88471 Tank, Receiver Air Conditioner
88473A Holder, Receiver
88550 Motor Assy, Blower (FOR CONDENSER)

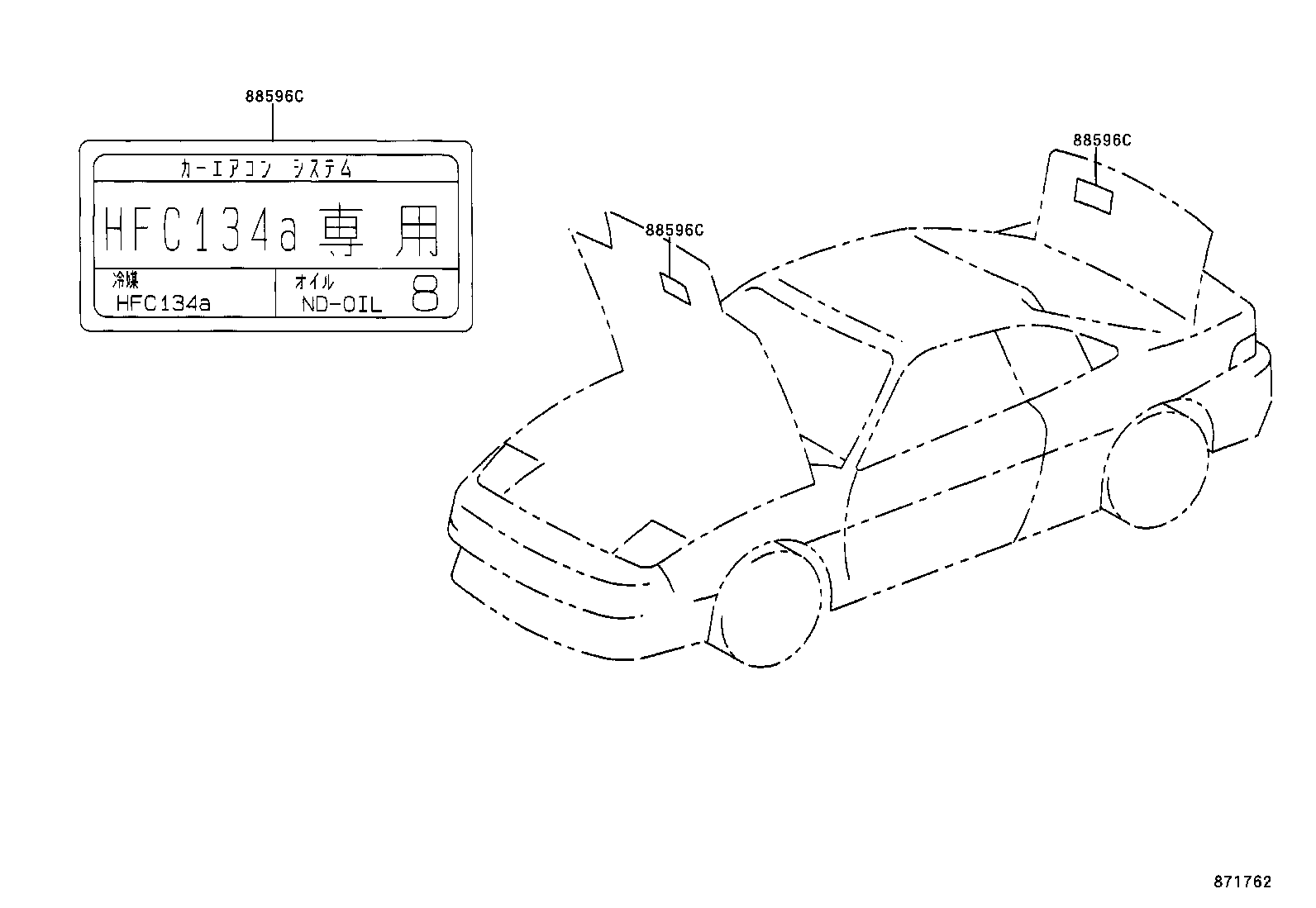

88596C Plate, Caution, NO.2
88625J Thermistor, Cooler
88645H Switch, Pressure NO.1
88703 Hose Sub-assy, Discharge
88704 Hose Sub-assy, Suction
88705A Tube Sub-assy, Discharge
88705B Tube Sub-assy, Discharge
88706A Tube Sub-assy, Liquid, A
88706B Tube Sub-assy, Liquid, B
88707 Pipe Sub-assy, Suction
88711 Hose, Cooler Refrigerant Discharge, NO.1
88712 Hose, Cooler Refrigerant Suction, NO.1
88715A Pipe, Cooler Refrigerant Discharge, A
88715B Pipe, Cooler Refrigerant Discharge, B
88716A Pipe, Cooler Refrigerant Liquid, A
88716B Pipe, Cooler Refrigerant Liquid, B
88716C Pipe, Cooler Refrigerant Liquid, C
88717A Pipe, Cooler Refrigerant Suction, A
88717B Pipe, Cooler Refrigerant Suction, B
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
