Toyota MR2
1989-12 → 1999-08 · chassis SW20 · catalogue 211120 · Japan
Discontinued model
Data version 2000-03
Heating & Air Conditioning - Compressor
9 part groups · 2 illustrations
Part groups

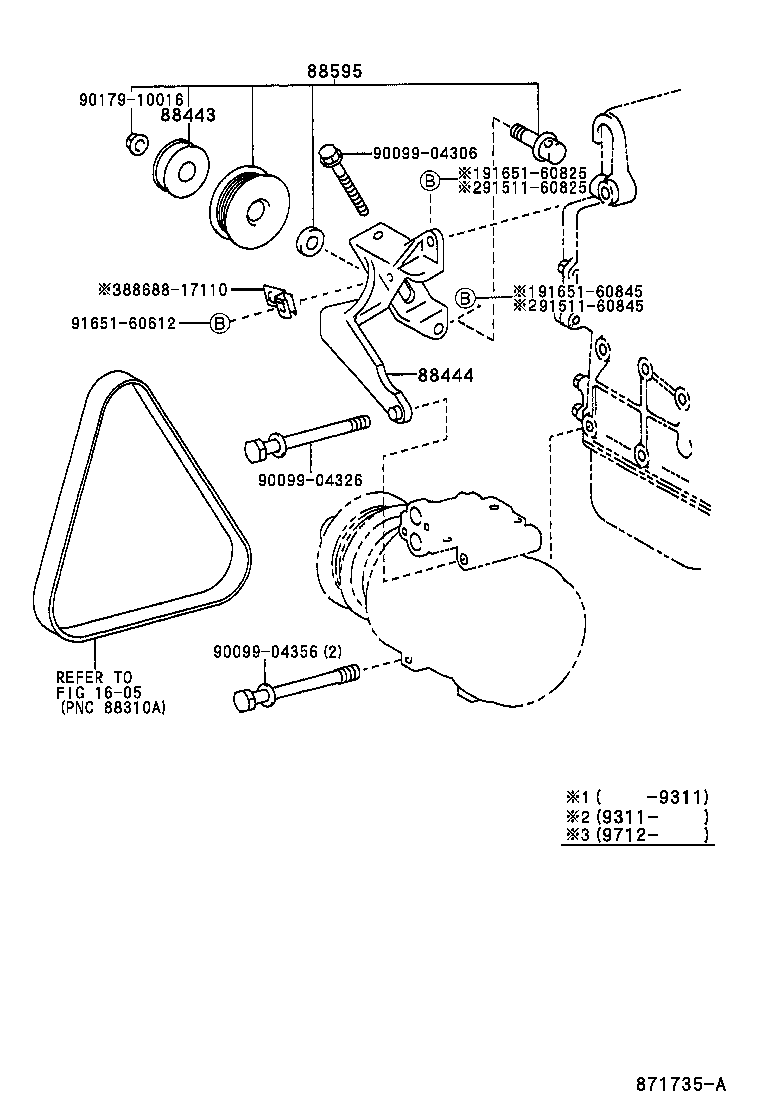

| PNC | Description |
|---|---|
| 88301 | Rotor Sub-assy, Magnet Clutch |
| 88302 | Stator Sub-assy, Magnet Clutch |
| 88320 | Compressor Assy, Cooler |
| 88330A | Washer (FOR MAGNET CLUTCH) |
| 88403 | Hub Sub-assy, Magnet Clutch |
| 88410 | Clutch Assy, Magnet |
| 88443 | Collar, Idle Pulley |
| 88444 | Bracket, Idle Pulley |
| 88595 | Pulley, Cooler Compressor Idle |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
