Toyota Mr-s
1999-10 → 2007-07 · chassis ZZW30 · catalogue 211130 · Japan
Discontinued model
Data version 2008-01

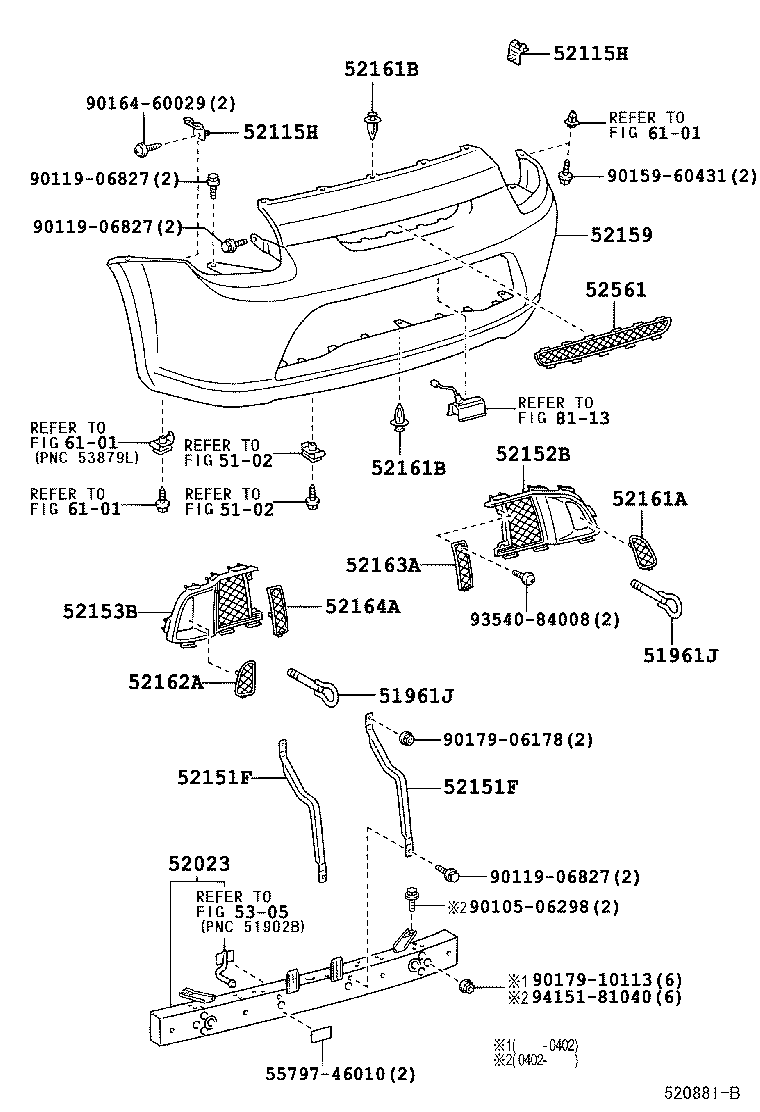

Rear Bumper & Bumper Stay
13 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 51961J | Hook, Rear |
| 52023 | Reinforcement Sub-assy, Rear Bumper |
| 52115H | Support, Rear Bumper Side |
| 52151F | Stay, Rear Bumper |
| 52152B | Extension, Rear Bumper, RH |
| 52153B | Extension, Rear Bumper, LH |
| 52159 | Cover, Rear Bumper |
| 52161A | Piece, Rear Bumper, RH |
| 52161B | Piece, Rear Bumper |
| 52162A | Piece, Rear Bumper, LH |
| 52163A | Plate, Rear Bumper, RH |
| 52164A | Plate, Rear Bumper, LH |
| 52561 | Retainer, Rear Bumper, Upper Center |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
