Toyota Mr-s
1999-10 → 2007-07 · chassis ZZW30 · catalogue 211130 · Japan
Discontinued model
Data version 2008-01

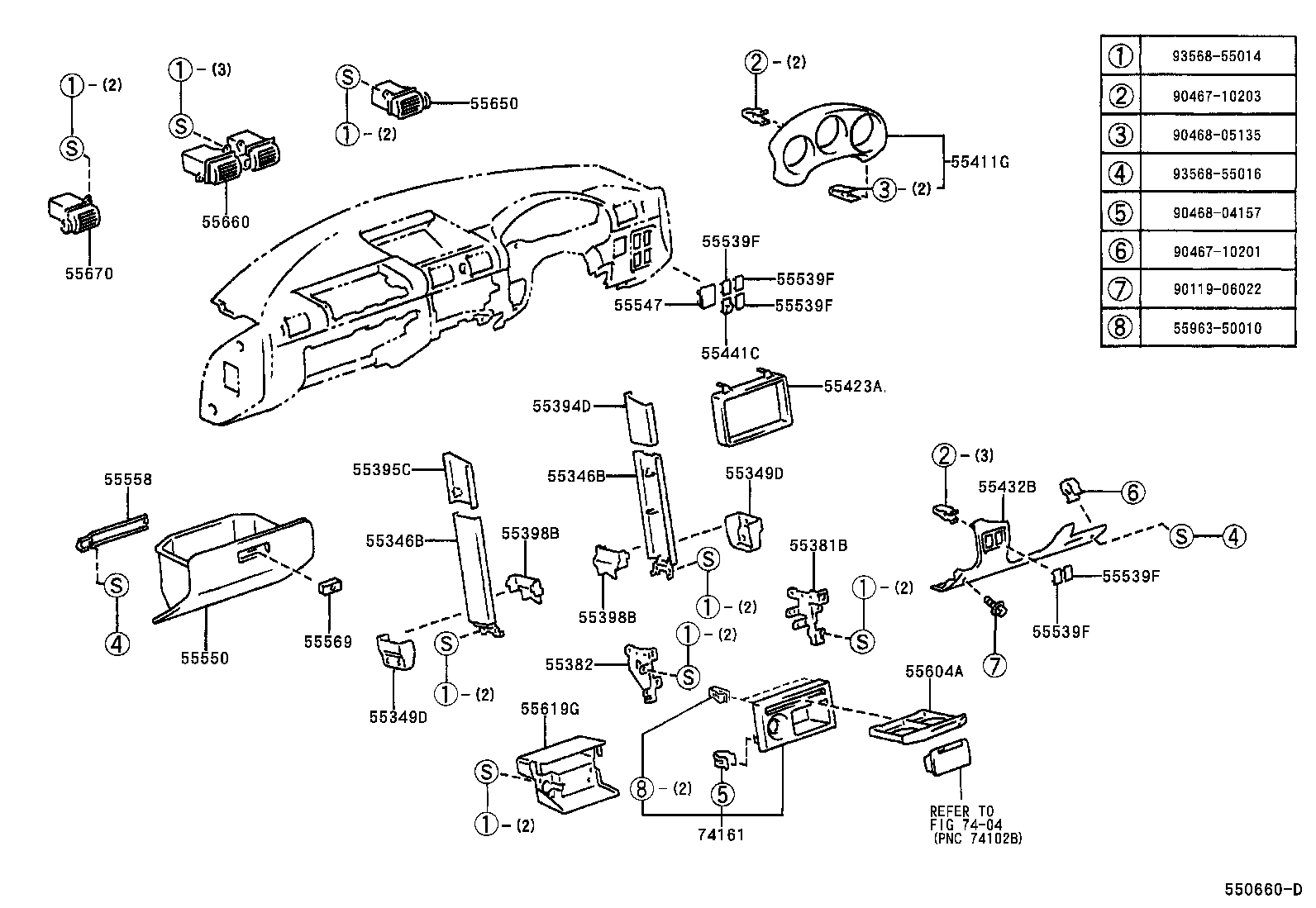

Instrument Panel & Glove Compartment
41 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 55306A | Brace Sub-assy, Instrument Panel, NO.1 |
| 55307C | Brace Sub-assy, Instrument Panel, NO.2 |
| 55308C | Bracket Sub-assy, Instrument Panel, Center |
| 55330B | Reinforcement Assy, Instrument Panel |
| 55346B | Cover, Instrument Panel Brace, Outer NO.1 |
| 55349D | Cover, Instrument Panel Brace, Outer NO.2 |
| 55358A | Protector, Edge, NO.2 |
| 55374C | Bracket, Instrument Panel Lower Mounting, NO.1 |
| 55381B | Bracket, Finish Panel Mounting, NO.1 |
| 55382 | Bracket, Finish Panel Mounting, NO.2 |
| 55394D | Cover, Instrument Panel Bracket, Inner NO.1 RH |
| 55395C | Cover, Instrument Panel Bracket, Inner NO.1 LH |
| 55398B | Cover, Instrument Panel Brace, Inner NO.3 |
| 55401E | Pad Sub-assy, Instrument Panel Safety |
| 55411G | Panel, Instrument Cluster Finish, NO.1 |
| 55422C | Panel, Instrument Cluster Finish, Center Upper |
| 55423A | Panel, Radio Tuner Finish |
| 55432B | Panel, Instrument Panel Finish, Lower |
| 55441 | Box, Instrument Panel |
| 55441C | Box, Instrument Panel Coin |
| 55446D | Shaft, Instrument Panel Box |
| 55460C | Lock Assy, Instrument Panel Box |
| 55460D | Lock Assy, Instrument Panel Box |
| 55539F | Cover, Spare Switch Hole |
| 55545 | Cover, Fuse Box Opening |
| 55547 | Cover, Remote Control Mirror Hole |
| 55550 | Door Assy, Glove Compartment |
| 55558 | Reinforcement, Glove Compartment Door |
| 55562B | Pin, Glove Compartment Door Lock |
| 55569 | Cover, Glove Compartment Door Lock |
| 55604A | Holder Sub-assy, Instrument Panel Cup |
| 55619G | Cover, Cup Holder Hole |
| 55648 | Seal, Instrument Panel Under Cover, NO.1 |
| 55649 | Seal, Instrument Panel Under Cover, NO.2 |
| 55650 | Register Assy, Instrument Panel, NO.1 |
| 55660 | Register Assy, Instrument Panel, NO.2 |
| 55670 | Register Assy, Instrument Panel, NO.3 |
| 55950A | Nozzle Assy, Defroster |
| 55967A | Nozzle, Defroster, Lower |
| 73970A | Airbag Assy, Instrument Panel Passenger |
| 74161 | Case, Ash Receptacle, Outer |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
