Toyota Mr-s

1999-10 → 2007-07 · chassis ZZW30 · catalogue 211130 · Japan

Discontinued model Data version 2008-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Rear Combination Lamp

17 part groups · 3 illustrations

Illustrations

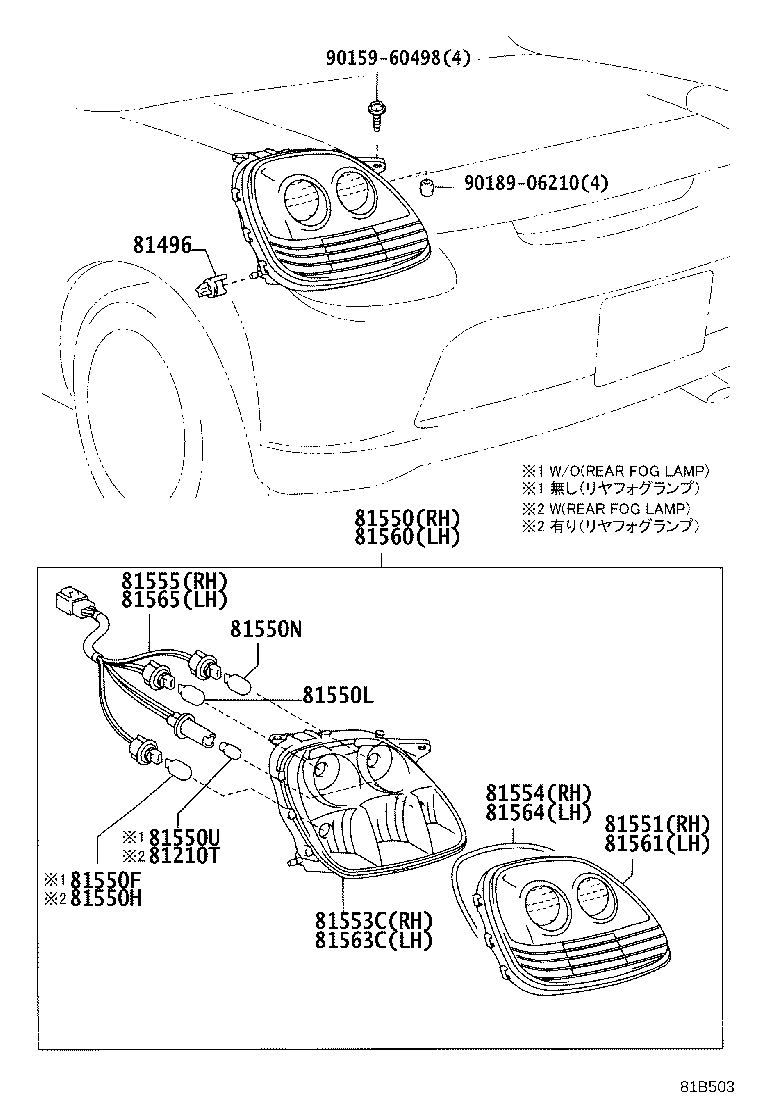

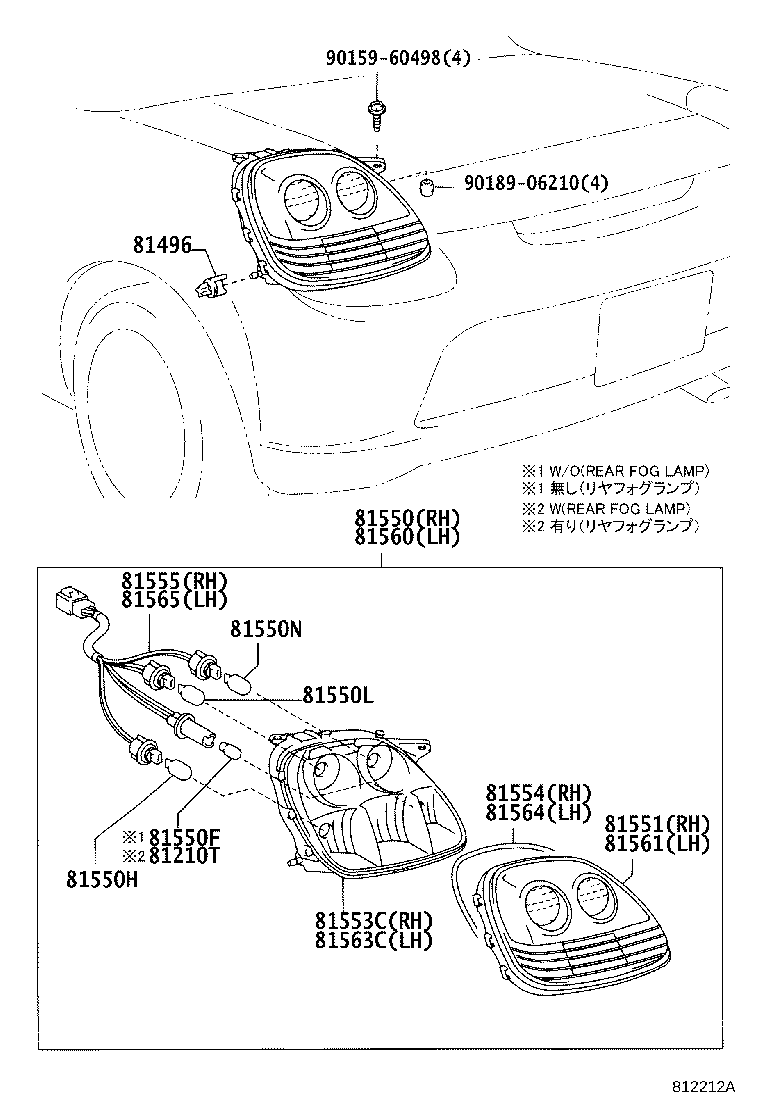

Figure 812062B 812062B 1999-10 → 2002-08 Figure 812212A 812212A 2002-08 → 2005-12 Figure 81B503 81B503 2005-12 → —

Part groups

PNCDescription
81210T Bulb, Rear Fog Lamp
81496 Guide, Rear Combination Lamp
81550 Lamp Assy, Rear Combination, RH
81550F Bulb, Taillamp
81550H Bulb, Tail & Stop Lamp
81550L Bulb, Rear Turn Signal Lamp
81550N Bulb, Back UP Lamp
81550U Bulb, Stop Lamp
81551 Lens, Rear Combination Lamp, RH
81553C Body, Rear Combination Lamp, RH
81554 Gasket, Rear Combination Lamp Body, RH
81555 Socket & Wire Sub-assy, Rear Combination Lamp, RH
81560 Lamp Assy, Rear Combination, LH
81561 Lens, Rear Combination Lamp, LH
81563C Body, Rear Combination Lamp, LH
81564 Gasket, Rear Combination Lamp Body, LH
81565 Socket & Wire Sub-assy, Rear Combination Lamp, LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
